Fab Fours Pre-Runner Heavy Duty Winch Front Bumper with Lights and D-ring Mounts (Black) – FF09-H1952-1

Fab Fours

Shop Ford F-150 Front Bumpers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pre-runner winch bumper for 2009 to 2014 Ford F-150
  • Winch mount for up to 12,000 lb winches
  • 3/4-inch D-rings, 90mm fog and 60mm turn lights included
  • 3/16-inch steel, matte black powder coat

Description

Overview

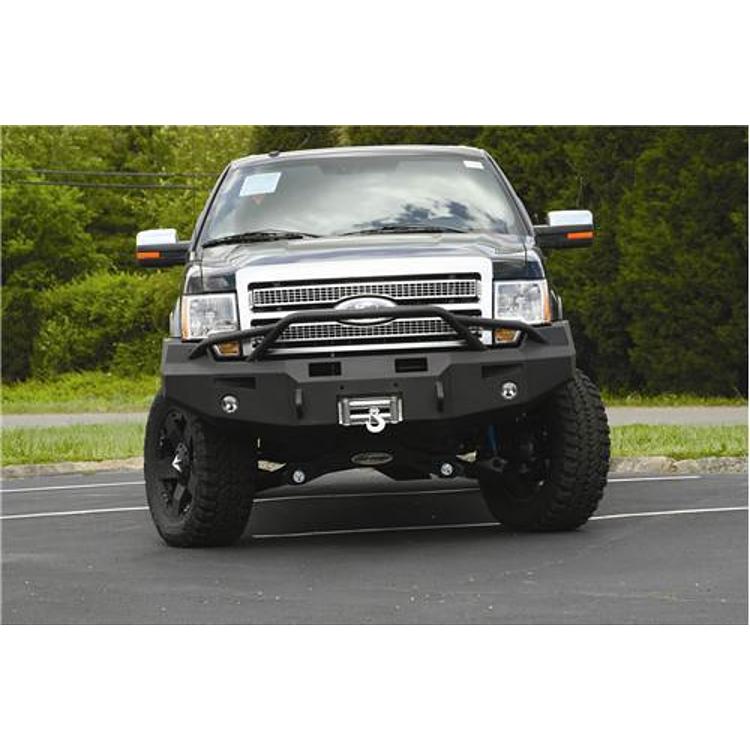

The Fab Fours FF09-H1952-1 is a pre-runner heavy duty winch front bumper for 2009 to 2014 Ford F-150 trucks, supplied with fog and turn lights and D-ring mounts in a black powder coat.

Fab Fours says its Premium winch bumper focuses on strength and durability and provides more tire clearance to eliminate rubbing. The winch mount accepts winches up to 12,000 lb or smaller, the D-ring mounts are 3/4-inch, and air ducts and the lights are built into the design.

Owners who want recovery capability and extra front-end protection together are the target for this design. The 1/4-inch boxed mounting system is adjustable so the bumper can take the company’s signature light housings, and the bumper is also offered by Fab Fours in full guard and base versions.

Key features

  • Winch ready for winches up to 12,000 lb or smaller
  • 3/4-inch D-ring mounts
  • 1/4-inch boxed mounting system with adjustability for custom Fab Fours injection molded light housings
  • 90mm fog and 60mm turn indicator lights included
  • Two-stage matte black powder coat; bare steel uses a -B suffix
  • 3/16-inch steel construction
  • More tire clearance
  • Made in the USA

Winch bumper installation tips

A winch bumper changes the weight balance at the front of the truck, so the suspension, steering components and hood latch deserve a look once it is installed. Heavier front ends place more load on the factory springs and shocks, which is worth remembering on long trips with a winch mounted. Check the bumper bolts and mount hardware after the first few drives.

Recovery use puts sudden loads through the winch mount and the bumper steel. Use a rated recovery strap or line, keep people clear of the rope path and avoid pulling at an angle that twists the mounts. Inspect the winch mount welds and mounting brackets periodically, especially after hard recoveries or trail use.

Lights and winch wiring both draw current, so a dedicated fused circuit is worth planning before the bumper goes on. Route the harness away from hot exhaust components and moving suspension parts, and secure it with clamps so nothing rubs through over time.

  • Winch mount bolts rechecked after first use
  • Fused battery feed for winch and lights
  • Rated recovery line and shackles

Specifications

Brand Fab Fours
Part number FF09-H1952-1
UPC 5810101015
Type Pre-runner heavy duty winch front bumper
Position Front
Width Full
Material 3/16-inch steel
Finish Two-stage matte black powder coat
Fit type Direct fit
Winch mount Included (up to 12,000 lb winches)
D-ring mounts Included, 3/4-inch
Lights 90mm fog and 60mm turn indicator lights included

Vehicle fitment

The FF09-H1952-1 fits the 2009 to 2014 Ford F-150.

The 2015 and later F-150 trucks are not covered by this part number. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The winch mounts into the bumper. A winch of 12,000 lb or smaller needs a fused battery feed, and the supplied fog and turn lights have to be wired into the truck.

What’s included

  • Pre-runner heavy duty winch front bumper
  • Winch mount
  • 3/4-inch D-ring mounts
  • 90mm fog lights and 60mm turn indicator lights

Not included: The winch and the winch wiring.

SKU: FFIFF09-H1952-1 Category:

Specification

Shipping weight 320.00 lbs
Package dimensions 90.00 × 42.00 × 37.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1502009–2014FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What winch fits the FF09-H1952-1?

The winch mount accepts winches up to 12,000 lb or smaller. The winch itself is not part of the bumper, so it is added separately.

Does the FF09-H1952-1 come with lights?

Yes. Fab Fours includes its 90mm fog lights and 60mm turn indicator lights with the bumper, built into the company's injection molded light housings.

Which F-150 years fit?

The 2009 to 2014 Ford F-150 is the fit for this bumper. Trucks from 2015 onward are not covered by this part number, so confirm fit for your vehicle's year, model and trim before ordering.

Is this bumper a pre-runner or a full guard?

It is the pre-runner guard version of Fab Fours' heavy duty winch bumper, with the matte black powder coat finish and the -1 suffix.

How do I know when a winch mount needs attention?

Look for cracks or fresh paint lines around the mount welds, loose or stretched bolt holes, and any movement of the winch when it is under load. Any of these signs means the mount should be inspected before the next recovery. Replacing a damaged mount promptly keeps the bumper and winch working as a system.
