Overview

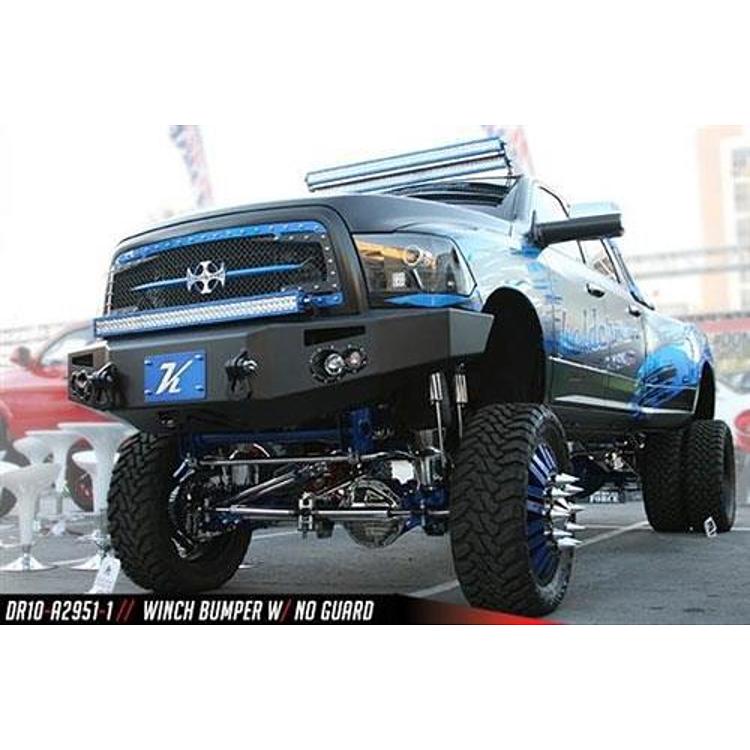

The Fab Fours DR10-A2951-1 is a heavy duty winch front bumper without a guard for 2010 to 2018 Ram 2500 and 3500 trucks, with a black powder coat and a winch mount that accepts winches up to 16,500 lb.
The shape is designed to provide more tire clearance, which can reduce rubbing on lifted trucks with larger tires. Integrated fog and turn lights, air ducts and D-ring mounts are part of the design.
Key features
- Winch ready: accepts winches up to 16,500 lb or smaller
- 3/4-inch D-ring mounts
- Boxed mounting system in 1/4-inch steel with adjustability
- Fab Fours’ 90mm fog and 60mm turn indicator lights included
- Injection molded light housings
- Combination of 1/4-inch and 3/16-inch steel construction
- Two-stage matte black powder coat; bare steel uses a -B suffix
- More tire clearance than the factory bumper
Winch bumper setup
A winch bumper carries a load that the bumper and the frame share, so the mount bolts and the frame attachment points should be inspected often. Use a winch sized for the truck and keep the rope or cable path straight to avoid side loading the mount. Wire the winch with a fused feed sized for its draw, and mount the solenoid where it stays dry.
Fog and turn lights in the bumper share the truck’s electrical system, so check the connectors after installation and after any wet runs. Air ducts can collect mud, so clean them periodically. Keep the D-ring mounts clear of the winch line path.
- Use a fused battery feed for the winch
- Inspect mount bolts after heavy pulls
- Clean air ducts after muddy use
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | DR10-A2951-1 |
| UPC | 5810107543 |
| Type | Heavy duty winch front bumper, no guard |
| Position | Front |
| Width | Full |
| Material | Steel |
| Steel thickness | 1/4-inch and 3/16-inch |
| Finish | Two-stage matte black powder coat |
| Fit type | Direct fit |
| Winch mount | Included (up to 16,500 lb winches) |
| D-ring mounts | Included (3/4-inch) |
| Lights | 90mm fog and 60mm turn indicator lights included |
Vehicle fitment
It is a direct fit for the 2010 Dodge Ram 2500 and 3500 and for the 2011 to 2018 Ram 2500 and 3500.
Ram 1500 trucks are not on this list, and neither are 2019 and newer heavy-duty models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The winch mount is built into the bumper, so a winch of up to 16,500 lb goes straight onto it. Wire the winch with a proper battery feed and controls.
What’s included
- Heavy duty winch front bumper without guard
- Winch mount
- 3/4-inch D-ring mounts
- 90mm fog lights and 60mm turn indicator lights
Not included: The winch itself and its wiring.
