Overview

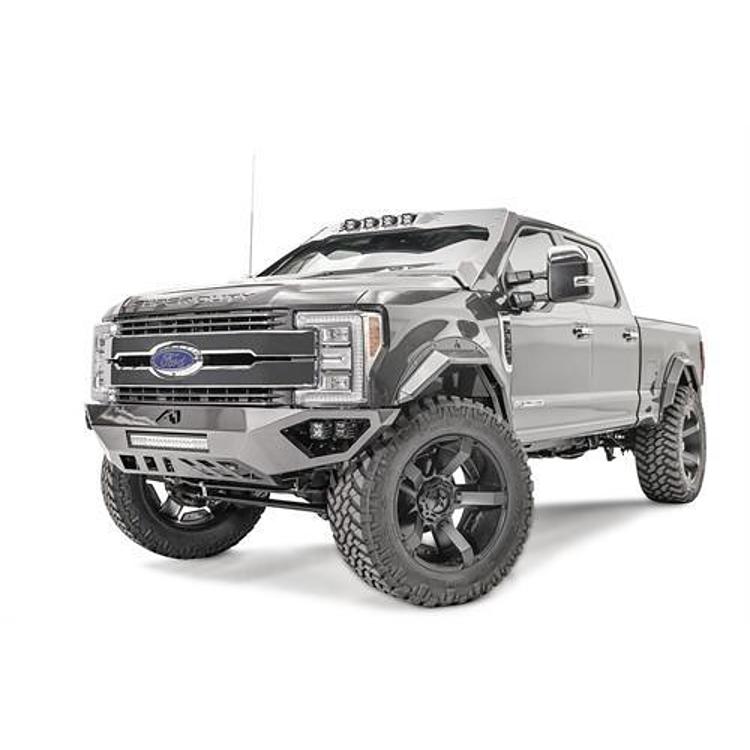

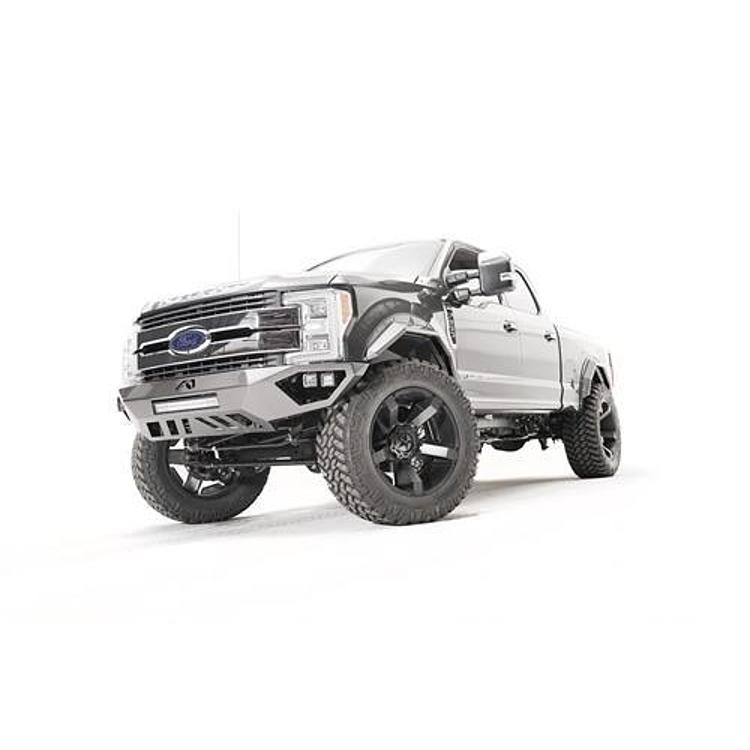

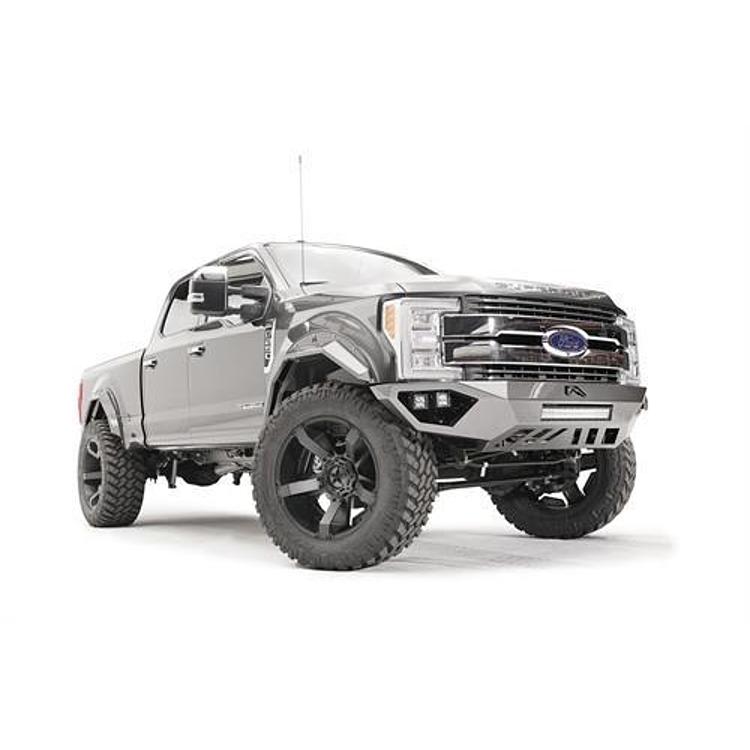

The Fab Fours Open Fender Front Bumper without Guard in black, part number FS17-V4161-1, is an 11 gauge steel bumper for the 2017–2018 Ford F-250 Super Duty and F-350 Super Duty. Fab Fours designed it to work specifically with its Open Fender System, part number TF3000-1.
The fit is high and tight to the contours of the truck. A lower cutout lets more air through, and the center mount holds a 20 inch LED light bar. The no-guard version weighs 65 lbs, and a pre-runner guard version is also available.
Key features
- Designed to work with the Fab Fours Open Fender System, TF3000-1
- High and tight fit to the contours of the vehicle
- Lightweight: Fab Fours lists 65 lbs for the no-guard version and 75 lbs with the pre-runner guard
- Center mount for a Rigid Industries 20 inch LED light bar, not included
- Mounts on each side for two 3 inch by 3 inch cubed lights, not included
- Lower cutout for airflow
- Complete bolt-on bumper with brackets that tie directly to the frame
- It is made from 11 gauge U.S. steel with a two-stage black powder coat, and it is made in the USA.
Lights and airflow
An open fender design exposes more of the front corners, so the fender area and wheel well clearance matter. Check the turn radius and tire clearance after installation, especially if the truck runs larger tires. The lower cutout helps airflow to the radiator and intercooler, which is useful when the truck works hard on grades or in heat.
A center light bar mount changes how the front of the truck throws light and how the wiring is routed. Use a relay and fuse for the lights, keep the harness away from moving parts and heat, and aim the lights once the truck is level. Cubed lights on the sides add coverage but should be wired on their own circuit so one failure does not affect the others.
- Route light wiring away from the grille and moving parts
- Aim lights with the truck level and loaded as normal
- Check tire and steering clearance after installation
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | FS17-V4161-1 |
| UPC | 5810115937 |
| Product type | Open fender front bumper |
| Guard style | No guard |
| Position | Front |
| Width | Full |
| Material | 11 ga. U.S. steel |
| Finish | Two-stage black powder coat |
| Weight | 65 lbs, no guard |
| Light mounts | Included |
| Winch mount | Not included |
| D-ring mount | Not included |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2017–2018 Ford F-250 Super Duty and F-350 Super Duty and is built for use with the Open Fender System, TF3000-1.
Earlier and later Super Duty years are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a complete bolt-on bumper, with brackets that tie directly to the frame. It is designed to be fitted with the Fab Fours Open Fender System, TF3000-1.
What’s included
The no-guard bumper with its frame brackets and light mounts.
Not included: The Rigid Industries 20 inch LED light bar, the 3 inch by 3 inch cubed lights, and the Open Fender System TF3000-1.
