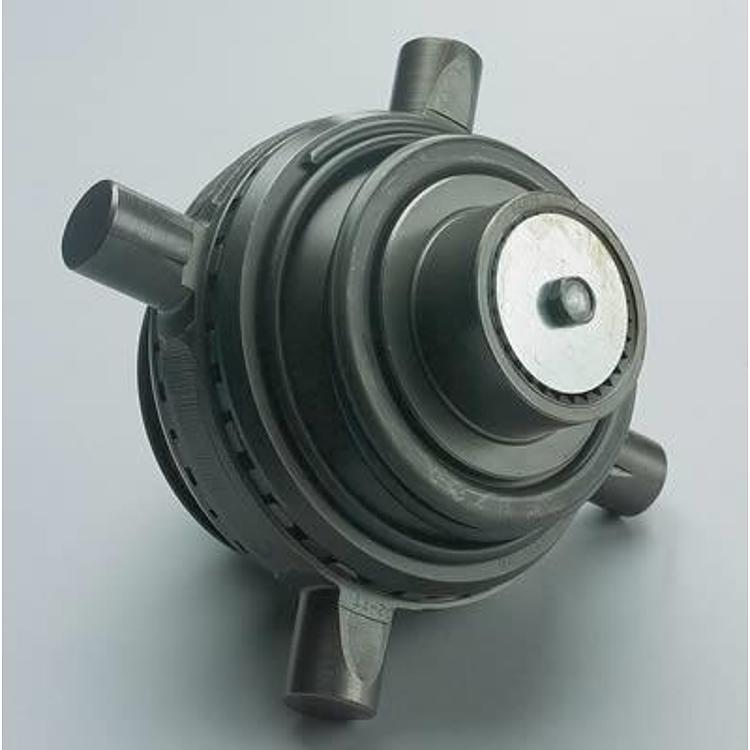

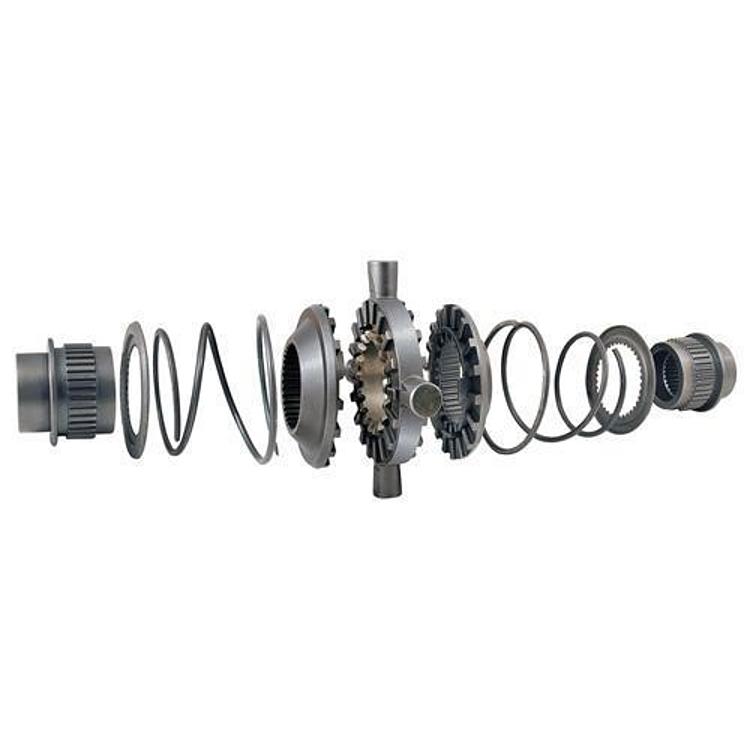

Detroit Locker Rockwell 100/102/200 16 Spline Automatic Locker – 225S15

Detroit Locker

Shop Detroit Locker Differential Parts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Automatic locker for Rockwell 100, 102 and 200 axles
  • 16 spline axle count listed
  • Rear or front axle location listed
  • Part number 225S15, UPC 70000010173

Description

Overview

The Detroit Locker 225S15 is an automatic locker for Rockwell 100, 102 and 200 axles, with 16 splines and a rear or front axle location. It locks the two wheels on the axle together so torque reaches both at once, which helps grip in mud, snow and over rocks.

The locker unlocks automatically when the wheels need to turn at different speeds, for example through a turn. The maker also cites track use for this unit.

Key features

  • Sends 100% of the torque to both wheels on the axle
  • Keeps both wheels in constant drive
  • Automatically allows wheel speed differences when required
  • Built for Rockwell 100, 102 and 200 axle designs
  • Fits rear or front axle positions.

Rockwell axles and gear sets

Rockwell axle families were built in several designs, so the housing markings and the shaft count are the first things to confirm. Once those match, the locker can be fitted with the gear set, which controls how power is shared across the two wheels. Because the locker is installed with the ring and pinion, many builders replace the carrier bearings at the same time.

When the axle is open, look at the axle shaft splines, the pinion seal and the bearing races for wear. A locker places more load on the shafts than an open carrier does, so worn parts are better replaced during the job. Keep the gear oil clean and check it at regular service intervals.

  • Verify the housing markings before ordering
  • Inspect bearing races and pinion seal when open
  • Check spline wear on both shafts

Specifications

Brand Detroit Locker
Part number 225S15
UPC 70000010173
Axle manufacturer Other
Axle type Rockwell 100/102/200
Axle location Rear, Front
Axle spline count 16 splines
Differential type Automatic locker

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering. It is for Rockwell 100, 102 and 200 axles with 16 splines, so match the axle design to your housing.

Check the axle name and spline count on your housing before ordering. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Automatic lockers are installed with the gear set, so professional setup and a break-in period are needed. Lift and support the vehicle on rated stands before getting underneath.

What’s included

This entry covers the locker unit. Check the package contents, including whether a ring gear is needed, before installation.

SKU: EAT225S15 Category:

Specification

Shipping weight 8.50 lbs
Package dimensions 9.50 × 8.00 × 8.00 in
brands

Questions & Answers

Is the Detroit Locker 225S15 for Rockwell axles?

Yes. The listed axle type is Rockwell 100/102/200, with a 16 spline count and a rear or front location. No vehicle years or models are listed, so match the axle to your housing before ordering.

What spline count does the 225S15 use?

It uses 16 splines. Count the splines on your axle shafts before ordering, since a different spline count will not fit even on a matching Rockwell housing.

Does the 225S15 work on front and rear axles?

Yes, it can be used in either the front or rear position. Confirm the axle position, Rockwell model and spline count match your housing before choosing this locker for your build.

How often should gear oil be checked on a locker axle?

Check the gear oil level at each service interval the vehicle manual sets, and look for metal shavings when the cover is off. Use the lubricant type the carrier requires, since the locker relies on a clean gear set.
