Daystar 5 Inch Premium Lift Kit – PAPLS104

Daystar

Shop Chevrolet Silverado 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5-inch body-lift and leveling system for 2003–2005 Chevrolet Silverado 1500 and GMC Sierra 1500 pickups
  • Allows tires up to 33 inches in diameter
  • Forged torsion bar keys with nylon lift blocks and bumper relocation brackets
  • Installation listed at 9 to 10 hours

Description

Overview

The Daystar DAYPAPLS104, also sold as the PLS 104 Premium Lift System, is a 5-inch body-lift and leveling kit for 2003 to 2005 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks. It covers Base, Hybrid, LS, LT, WT and Z71 Silverado trims and Base, Hybrid, SL, SLE, SLT and WT Sierra trims for the same model years.

The kit raises the truck 5 inches and allows tires up to 33 inches in diameter. Forged torsion bar keys handle the front lift, and high pressure fiberglass reinforced nylon blocks add height at the rear. Laser cut, powder coated bumper relocation brackets, a steering extension and extension brackets allow the bumper and steering to follow the raised body.

Key features

  • 5-inch body-lift and leveling design
  • Allows tires up to 33 inches in diameter
  • Forged torsion bar keys
  • Fiberglass reinforced nylon lift blocks
  • Laser cut and powder coated bumper relocation brackets
  • CNC machined and zinc plated steering extension
  • Urethane Gap Guard wheel well extensions

Things to check before the install

A body-lift and leveling kit changes how the truck sits without altering the axles or frame, but the body is lifted off the frame, so brake lines, steering shaft and wiring all need room. Set the torsion bar keys first, then confirm front height before the body mount hardware is fully tightened. Expect the install to take longer than a simple spacer job, since the bumper and steering parts need careful alignment.

Older Silverado and Sierra trucks often have worn steering components, so this is a good time to inspect tie rods, pitman arm and ball joints. A raised body can make small problems more noticeable, such as wander or vibration at speed. Keep fasteners checked during the first few weeks of driving, and recheck the alignment if the front tires begin to wear unevenly.

Specifications

Brand Daystar
Part number DAYPAPLS104
Lift height 5 inches
Maximum tire diameter 33 inches
Bumper bracket thickness 3/16 inch
Installation time 9 to 10 hours
Fitment type Direct fit

Vehicle fitment

The kit fits 2003 to 2005 Chevrolet Silverado 1500 and GMC Sierra 1500 pickups in the trims covered above.

The 2006 and later 1500 trucks and the 2500 and 3500 models are not on the list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Set the torsion bar keys, then check the front height before the body-mount hardware is final. The steering extension changes steering geometry, so check alignment after installation. Installation takes 9 to 10 hours, which is longer than the 8 to 9 hours for 1995 to 1998 trucks.

What’s included

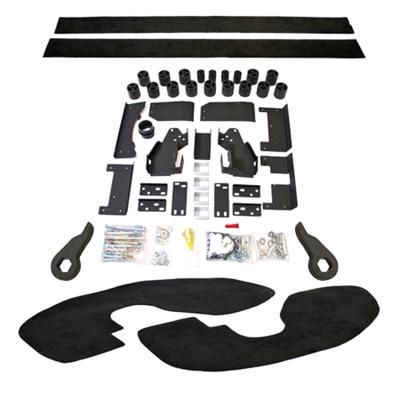

The kit includes forged torsion bar keys, high pressure fiberglass reinforced nylon lift blocks, laser cut and powder coated bumper relocation brackets, a steering extension, high strength hardware, extension brackets and urethane wheel well extensions.

SKU: DAYPAPLS104 Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002003–2005Base, Hybrid, LS, LT, WT, Z71
GMC Sierra 15002003–2005Base, Hybrid, SL, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which Silverado and Sierra years does the DAYPAPLS104 fit?

The kit fits 2003 through 2005 Chevrolet Silverado 1500 and GMC Sierra 1500 pickups. Later 1500 model years and 2500 and 3500 trucks are not covered, so confirm the year and model before ordering.

How much lift does this system provide?

It raises the truck 5 inches and allows tires up to 33 inches in diameter. Forged torsion bar keys handle the front lift, and nylon lift blocks add height at the rear.

How long does the installation take?

Installation takes 9 to 10 hours, and the kit comes with everything needed for the job. Check the steering alignment once the work is finished.

Will this kit change tire wear?

It can, because the steering geometry is adjusted and tires may sit differently at speed. Check tire wear regularly and confirm the alignment after installation to keep wear even across the tread.
