Daystar 4 Inch Premium Lift Kit – PAPLS122

Daystar

Shop GMC Canyon Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Lists the 2015–2016 Chevrolet Colorado and GMC Canyon
  • 4-inch premium lift for gas engine pickups
  • Allows up to a 32-inch diameter tire
  • Includes bumper brackets, coil spring spacers and steering shaft extension
  • Manufactured in the U.S.A.

Description

Overview

The Daystar PAPLS122 is a 4-inch premium lift system for the 2015–2016 Chevrolet Colorado and the 2015–2016 GMC Canyon with gas engines. It is built to raise the vehicle 4 inches and allow the use of up to a 32-inch diameter tire without compromising the factory ride.

The system combines body blocks and leveling spacers. It keeps the factory suspension geometry, turning radius and driveline angles. The kit is manufactured in the U.S.A., and it is designed to avoid voiding the factory warranty.

The Gap Guards cover internal components that are exposed after the body is lifted, which keeps the engine compartment protected from dirt and debris. The body blocks are nylon-reinforced, and the bumper brackets are precision laser cut.

The body blocks and bumper brackets are included with the kit, along with the steering shaft extension and leveling spacers.

Key features

  • 4-inch lift for gas engine pickups
  • Nylon-reinforced body blocks
  • Precision laser-cut bumper brackets
  • Coil spring spacers and 1/4-inch thick leveling spacers
  • CNC machined steering shaft extension
  • Gap Guard wheel well extensions made of precision molded polyurethane

Pickup lift considerations

Body lifts on pickups change the position of the body over the frame, which means the engine bay and front end see new angles. Gap Guards cover the openings that appear once the body is raised, helping keep dirt and debris out of the wheel wells and engine compartment. They should be checked after off road use for cracks, loose fasteners and any rubbing against the tires.

A steering shaft extension is often part of this type of lift because the steering column angle changes with the body height. After installation, test the steering at low speed and listen for binding or unusual noise. Keep the leveling spacers and body blocks in their intended positions, and recheck the bumper brackets after the first few drives.

  • Check Gap Guards for cracks after rough use
  • Test steering at low speed after installation
  • Recheck bumper bracket fasteners periodically

Specifications

Brand Daystar
Part number PAPLS122
Lift height 4 inches
Maximum tire diameter 32 inches
Body blocks Nylon-reinforced
Leveling spacers 1/4-inch thick
Bumper brackets Precision laser-cut
Steering shaft extension CNC machined
Wheel well extensions Precision molded polyurethane Gap Guards
Made in United States

Vehicle fitment

It fits the 2015–2016 Chevrolet Colorado and the 2015–2016 GMC Canyon.

Other model years of the Colorado and Canyon are not covered, and the kit is for gas engine pickups only. Make sure your year, model and engine type match before ordering.

Installation notes

The kit includes a steering shaft extension and bumper brackets, so the front end is modified during installation. The Gap Guards are fitted to hide the gaps exposed after the body is lifted.

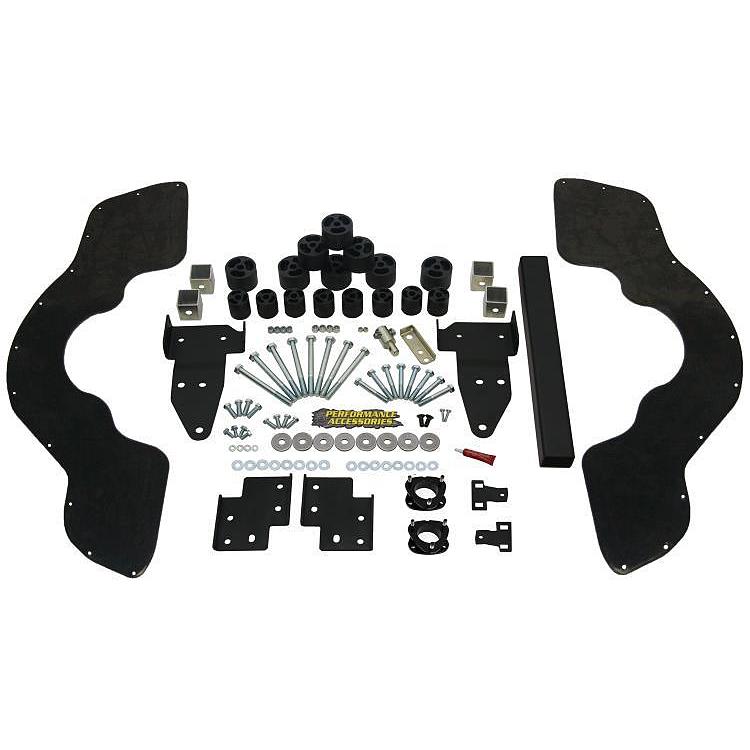

What’s included

Nylon-reinforced body blocks, precision laser-cut bumper brackets, coil spring spacers, a CNC machined steering shaft extension, 1/4-inch leveling spacers, Gap Guard wheel well extensions and high strength hardware.

SKU: DAYPAPLS122 Category:

Specification

Shipping weight 50.00 lbs
Package dimensions 21.00 × 18.00 × 16.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Colorado2015–2016Base, LT, WT, Z71
GMC Canyon2015–2016Base, SL, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the PAPLS122 a 4-inch lift for a 2015 Colorado?

Yes. It is made for the 2015–2016 Chevrolet Colorado, so a 2015 Colorado is within the covered years. The lift is 4 inches, with a tire limit of up to a 32-inch diameter.

Does this lift keep the factory ride?

It keeps the factory ride while preserving the factory suspension geometry, turning radius and driveline angles. The body blocks and leveling spacers are designed to work without changing those settings.

What engine is this kit for?

It is for gas engine pickups only. Diesel versions are not covered, so confirm your engine type and model year before choosing this lift.

Does a body lift affect the steering?

A steering shaft extension is often needed with body lifts that raise the front end, because the steering column geometry changes. Check that the extension is installed correctly and that the steering feels normal on a test drive before regular use.

Do Gap Guards need maintenance?

Gap Guards need little care beyond periodic washing. Check them for cracks or loose fasteners after rough trail use, and make sure they still cover the gaps between the body and frame.
