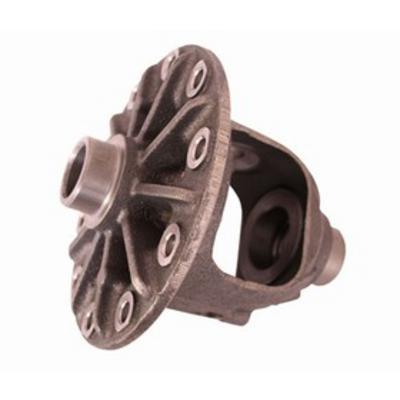

Dana Spicer Dana 60 Open Differential Carrier Case – 706041X

Dana Spicer

Shop Dana Spicer Differentials on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana Spicer 706041X open differential carrier case for the Dana 60 rear axle
  • Empty case, open differential only
  • Suited to a ring gear landing change
  • Part number D/S706041X

Description

Overview

The 706041X is an open differential carrier case for a Dana 60 rear axle. It comes empty, so it suits owners who do not need new spider gears.

Dana Spicer positions its O.E. carrier cases for owners who need a change in ring gear landing or a replacement carrier. The part number is D/S706041X.

Key features

  • Empty open differential carrier case
  • Dana 60 rear axle
  • Suited to a ring gear landing change.
  • Replacement case for jobs that do not require new spider gears

Ring gear landing and case swaps

The ring gear sits against a landing on the carrier case, and the landing position controls how the gear meshes with the pinion. When a case is swapped, the landing and bolt pattern must match the ring gear being installed, or the mesh will be wrong. Owners often check the old ring gear and pinion markings before ordering, since mismatched gears cause noise and early wear.

An empty case gives flexibility in choosing spider gears, side gears and bearings, but it also adds parts to source. Clean the case thoroughly, check the bearing bores and inspect the mounting surfaces for cracks before fitting anything. A shop with a setup bench can confirm backlash and preload before the axle is closed up.

Specifications

Brand Dana Spicer
Part number D/S706041X
Axle manufacturer Dana
Axle location Rear
Axle type Dana 60
Axle spline Empty case
Differential type Open differential case only

Vehicle fitment

Dana 60 names the rear axle, not a vehicle, and Dana Spicer marks this case universal fit. Match the case to your Dana 60 axle and the ring gear landing on your existing carrier before buying.

Dana 60 is an axle family, so no vehicle year, make or model is tied to this case. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because this is an empty case, the ring gear and spider gears must be fitted and set up before the axle goes back together. That work is usually done by an axle shop.

What’s included

The empty differential carrier case only.

Not included: ring gear, pinion, spider gears and bearings, since the case arrives empty.

Questions & Answers

Is 706041X an empty case?

Yes. The case arrives empty, with the open differential only. The ring gear and spider gears are not part of it, so source them separately.

Which axle does this case fit?

It fits the Dana 60 rear axle. Confirm the axle is a Dana 60 and check the ring gear landing on your existing carrier before ordering.

What is part number D/S706041X?

It is Dana Spicer's O.E. open differential carrier case, part number D/S706041X. No UPC is listed, so use the part number and axle specifications to confirm the match before buying.

Can the spider gears be reused in an empty case?

Only if they are in good condition. Inspect the gear teeth and thrust washers for scoring or chips. Worn spider gears can damage new side gears, so replacing them with the set is often the safer choice when the case is open.
