ARB Nissan M226 32 Spline 12 Bolt Air Locking Differential – RD159

ARB 4x4 Accessories

Shop ARB 4X4 Accessories Differentials on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • ARB Air Locker for a Nissan M226 12-bolt rear axle with 32 splines (part number RD159)
  • Pneumatic selectable locking differential
  • Full spool operation when engaged, open when released
  • Universal fit listed by the manufacturer

Description

Overview

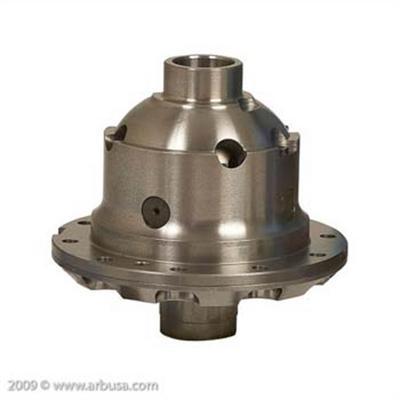

The ARB Nissan M226 32 Spline 12 Bolt Air Locking Differential, part number RD159, is a pneumatic selectable locker for a Nissan M226 rear axle, a D44 type with 32 splines and a 12-bolt ring gear arrangement. Air locks the two axles together, turning an open differential into a full spool.

When engaged, the locker drives both wheels, and when released it works as a normal open differential. The lock is intended to help the vehicle through difficult terrain. An ARB onboard air compressor is required to activate it, and the compressor is not included.

Key features

  • Pneumatic selectable locking differential for the rear axle
  • Converts an open differential into a full spool when engaged
  • Open differential behavior when released
  • 32 spline axle

Air lockers on the trail

An air locker gives full drive to both axle shafts when engaged, which helps on steep climbs and loose surfaces where one wheel loses grip. Because the locker engages all the way, it is best used at low speed with gentle steering input. When released, it returns to open differential behavior for normal road driving.

Air lockers need a reliable air supply, so check the compressor, hoses and fittings for leaks before a trip. Gear oil level and ring gear condition matter more with a locker in use, so inspect them periodically. Pinion and axle bearings take extra load in locked operation, so listen for noise after trail runs.

  • Check compressor hoses for leaks
  • Keep gear oil at the correct level
  • Inspect the ring gear after heavy use

Specifications

Brand ARB 4×4 Accessories
Part number ARBRD159
Axle location Rear
Axle type Nissan M226 D44
Axle spline 32 splines
Differential type Selectable locker
Air supply ARB onboard air compressor, not included

Vehicle fitment

This locker is built for a Nissan M226 D44 rear axle with 32 splines. Confirm the axle type and spline count on your vehicle before ordering.

The 32 spline count and the M226 D44 axle type are the fit points that matter. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The locker is activated by an ARB onboard air compressor, which must be fitted separately. Plan the air supply around that compressor before installing the locker.

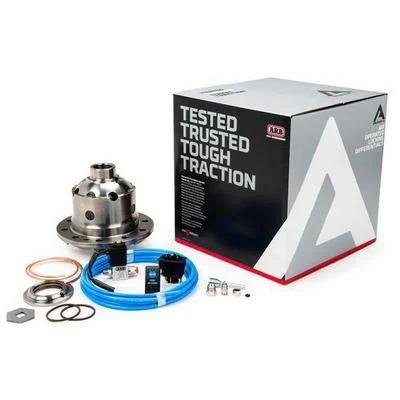

What’s included

Only the RD159 locker is listed, and the air compressor is not included.

Questions & Answers

Is the ARB RD159 air locker for a Nissan M226 axle?

It is built for a Nissan M226 D44 rear axle with 32 splines. Confirm the axle type and spline count on your vehicle before ordering, as that is the main fit check for this locker.

Does the RD159 include an air compressor?

No. An ARB onboard air compressor is required to activate the locker, and it is not included with the locker. Plan to have the compressor ready before installing the RD159.

How many spline does the RD159 axle have?

The RD159 is built for a rear axle with 32 splines, specifically a Nissan M226 D44. Match the spline count to your axle before ordering, since the spline count is the key fit check.

Can an air locker be used on pavement?

Use it on pavement only with care, and release it for normal road driving. A locked axle can cause tire scrub and reduced steering control on dry pavement. Release the lock before highway speeds and when turning sharply.
