Dana Spicer Dana 60 Inner Axle Seal – 36487

Dana Spicer

$13.94In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 2:40 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana Spicer 36487 inner axle seal for Dana 60 front axles
  • Single seal, one side only, for non-disconnect axles
  • Ford, GM and Dodge applications before 1993; no vehicle fitment listed

Description

Overview

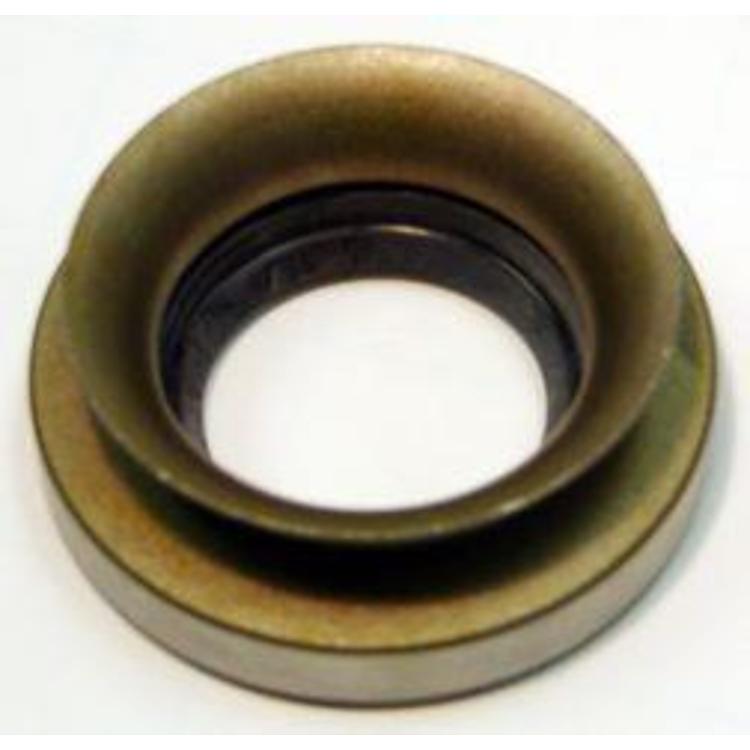

The Dana Spicer 36487 is a single Dana 60 inner axle seal for one side of a non-disconnect front axle. It covers Ford, GM and Dodge applications before 1993 and is made for Dana 60 and Dana 61 axle types.

The seal sits at the inner end of the axle, sealing the housing to the axle shaft and keeping gear oil in the axle tubes. Disconnect Dana 60 axles are outside this seal’s application.

Key features

  • Single seal for one side only
  • Seals the housing to the axle shaft
  • Helps keep gear oil in the axle tubes
  • Inner diameter 1.45 and outer diameter 2.625.

Measuring before you buy

Inner axle seals are sized by the shaft and bore they fit, so measuring the old seal is the most reliable way to confirm a match. Take the inner and outer diameters across the lip and the seal body, and write them down before ordering.

Pre-1993 Dana 60 axles are common in older trucks, and the housing and shaft may have been replaced or modified over the years. Check that the shaft has not been swapped before relying on the old seal’s size.

When the seal is out, inspect the shaft surface for grooves and check the housing for seepage at the bore. Light scoring can often be cleaned, but deep grooves call for shaft or seal replacement. Remove the old seal without damaging the bore.

  • Measure the old seal before ordering
  • Note the axle type and build year
  • Check the shaft surface for grooves

Specifications

Brand Dana Spicer
Part number 36487
UPC 23913139162
Axle location Front
Axle type Dana 60; Dana 61 listed
Seal style Single seal, one side only
Inner diameter 1.45 (unit not stated)
Outer diameter 2.625 (unit not stated)
Application Non-disconnect Dana 60 Ford, GM and Dodge axles before 1993

Vehicle fitment

It is a non-disconnect Dana 60 seal for Ford, GM and Dodge axles before 1993, with universal fit. Match the axle type and build to the seal rather than a vehicle year range.

Disconnect axles are not covered by the stated application. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Only one seal is described, for one side of the axle.

SKU: D/S36487 Category:

Specification

Shipping weight 0.17 lbs
Package dimensions 3.00 × 3.00 × 1.00 in
brands

Questions & Answers

Does the Dana Spicer 36487 fit a Dana 60 axle?

Yes, for non-disconnect Dana 60 axles in Ford, GM and Dodge applications before 1993. Disconnect Dana 60 axles are outside its application, so confirm your axle type first.

What are the inner and outer diameters?

The inner diameter is 1.45 and the outer diameter is 2.625. Measure your old seal in the same units before installing.

What is the part number and UPC?

Part number 36487 and UPC 23913139162 are given for this Dana 60 inner axle seal. Dana Spicer makes it as a single seal for one side only, so a pair is not included.

Should the bearing be checked when this seal is replaced?

Yes. Check the bearing and race while the axle is open, since bearing wear can cause the shaft to move and damage the new seal. Replace worn bearings at the same time.
