Overview

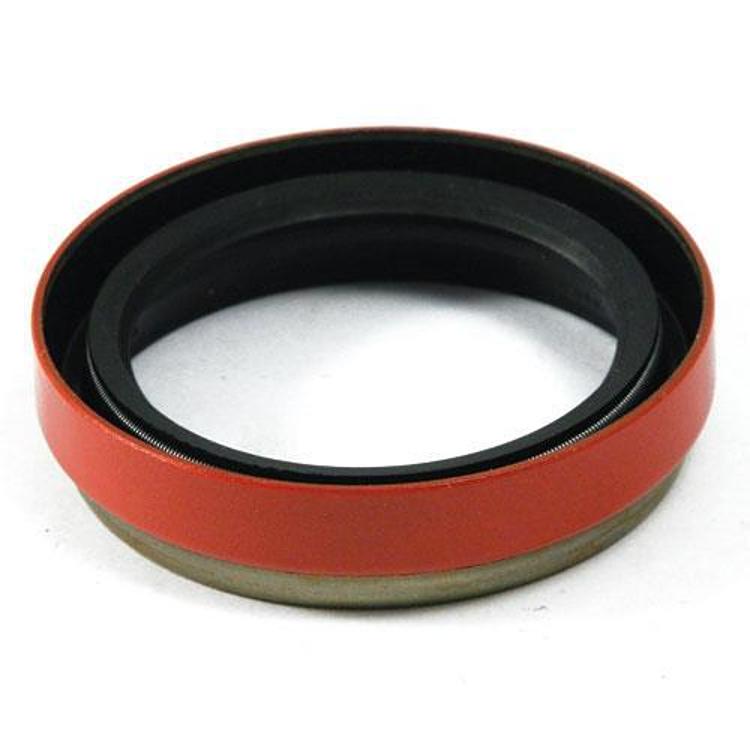

The Dana Spicer 42500 is a passenger side inner axle seal for the Dana 30 disconnect front axle. It seals the housing to the axle shaft and helps keep gear oil from running out of the axle tubes, which makes it a common part in axle rebuilds.
Dana Spicer sells this seal within its Dana 30 axle parts range. Its shaft diameter is 1.628, its housing diameter is 2.122 and its width is 0.343, so check those figures against your axle before fitting it.
Key features
- Inner axle seal for the Dana 30 disconnect front axle
- Passenger side position
- Seals the housing to the axle shaft
- Helps prevent gear oil from leaking out of the axle tubes
Dana 30 rebuild checks
A disconnect front axle has a passenger side and a driver side inner seal, so the side matters on any rebuild. Before ordering, identify which side the old seal came from and check the bore it sits in, since the two sides should not be assumed interchangeable.
Measure the shaft diameter, housing diameter and seal width on the old seal and compare them with the figures for this part. Dirt in the bore or a nicked shaft can cause an otherwise correct seal to leak, so clean and inspect both before installation.
Gear oil that seeps from an inner seal often runs toward the brake components, which can contaminate pads or shoes. Replacing the seal before the leak gets worse protects the brakes and keeps the oil level where it belongs.
- Confirm the side before ordering
- Measure the old seal bore
- Clean the shaft and bore before installing
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 42500 |
| UPC | 23913141189 |
| Axle type | Dana 30 disconnect front |
| Axle location | Front |
| Position | Passenger side |
| Shaft diameter | 1.628 |
| Housing diameter | 2.122 |
| Width | 0.343 |
Vehicle fitment
It is a universal fit for the Dana 30 front axle, which refers to the axle type rather than a specific vehicle.
Measure the axle to confirm it is a Dana 30 disconnect front, and check the vehicle’s year, model and trim before ordering.
What’s included
The package is one inner axle seal.
