Dana Spicer Dana 44 Differential Rebuild Kit – 2017088

Dana Spicer

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Standard rebuild kit for Dana 44 front axles
  • 216mm diameter ring gear with Electronic Lok
  • Front position

Description

Overview

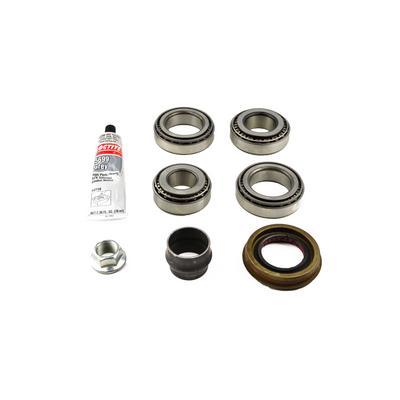

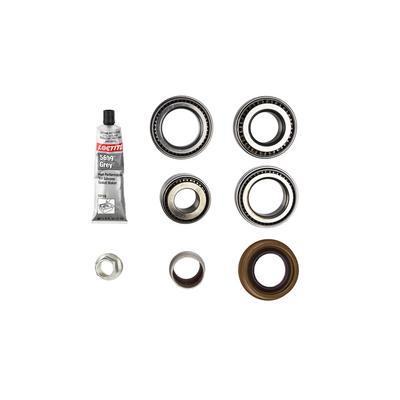

The Dana Spicer D/S2017088 is a standard differential rebuild kit for a Dana 44 front axle with a 216mm diameter ring gear and Electronic Lok. It fits the 2007–2018 Jeep Wrangler (JK) models.

Dana Spicer describes its light vehicle axle parts as manufactured to the same standards as original equipment, and this kit is the standard rebuild option rather than the master kit.

Key features

  • Standard differential rebuild kit
  • Dana 44 front axle
  • 216mm diameter ring gear
  • Electronic Lok version
  • Front position

Planning a differential rebuild

A rebuild kit replaces the ring and pinion, bearings and related hardware, but the gears must be matched to each other and set to the housing. Start by checking the existing ring gear diameter and locking type, since a mismatch means the kit will not seat correctly. Inspect the carrier, the axle tube and the bearing bores for wear before buying parts, because a worn housing can undo a good rebuild.

Symptoms that point to a rebuild include whining that changes with speed, clunking when shifting from drive to reverse, and gear oil with metal particles. Electronic Lok components can also fail and need inspection while the carrier is open. Plan for gear marking, backlash checks and pinion preload, and allow time for a careful setup.

  • Check the ring gear diameter before ordering
  • Inspect the carrier bearing bores
  • Look for metal in the drained gear oil

Specifications

Brand Dana Spicer
Part number D/S2017088
Position Front
Axle Dana 44
Ring gear 216mm diameter
Lock Electronic Lok
Kit type Standard rebuild

Vehicle fitment

It fits the 2007–2018 Jeep Wrangler (JK) in the 2-door and Unlimited 4-door trims, including the 70th and 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims.

Wrangler JK years outside 2007–2018, and the TJ, LJ and JL generations, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit is made for a 216mm ring gear with Electronic Lok, so check both before ordering. A rebuild needs preload and backlash set, so a shop with the right tools is the usual route.

What’s included

A standard rebuild kit. Check the package contents against your installation before starting.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary (2-Door), 75th Anniversary (2-Door), Rubicon (2-Door), Sahara (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited 70th Anniversary (4-Door), Unlimited 75th Anniversary (4-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door), Unlimited X (4-Door), X (2-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Dana Spicer D/S2017088 kit fit a Dana 44 with Electronic Lok?

Yes. The kit is made for a Dana 44 with a 216mm diameter ring gear and Electronic Lok. It fits the 2007 to 2018 Jeep Wrangler (JK) in the front position.

Is this a master overhaul kit?

No. It is a standard rebuild kit for the Dana 44 front axle with a 216mm ring gear and Electronic Lok, not a master overhaul kit. Confirm the axle specification before ordering.

Does this rebuild kit fit a Wrangler JK?

Yes. It fits Wrangler JK models from 2007 to 2018 in several trims. Match the year, model and trim to your vehicle before buying.

Is this kit enough for a full overhaul?

It is a standard rebuild kit, not a master overhaul kit. Plan to source any other parts the rebuild needs, and confirm the axle specification before ordering.

Does a rebuild need special tools?

Yes, a rebuild usually needs a dial indicator for backlash, a torque wrench, a pinion depth tool and a bearing press. Without these, a shop with the right tools is the usual route for a reliable result.
