Omix-ADA Dana 27 Outer Axle Seal – 16708.01

Omix-Ada

Shop Jeep Willys CJ-3 Spindle Seals on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana 27 outer axle seal
  • Direct fit for the listed Willys and Jeep models.
  • 1941-1960 Willys and Jeep models
  • Omix-ADA part 16708.01

Description

Overview

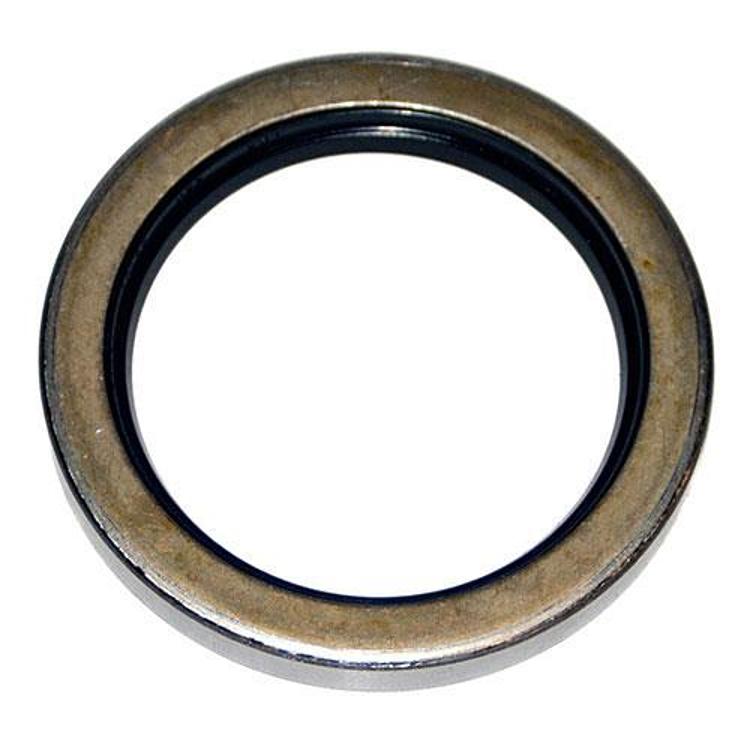

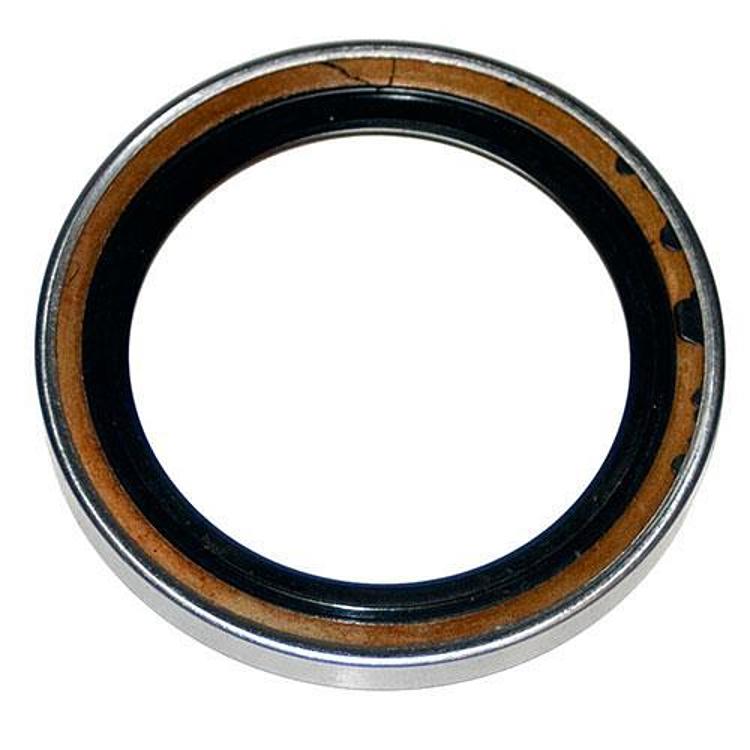

The Omix-ADA 16708.01 is a Dana 27 outer axle seal for early Jeeps from the 1940s and 1950s. It can serve as a rear Dana 27 oil seal or a front hub bearing oil seal, and it is a direct fit.

Confirm which hub on your vehicle takes the seal before ordering, since the position depends on the axle setup.

It is built to original specifications and has a limited five year warranty.

Key features

  • Dana 27 outer axle seal
  • Rear Dana 27 oil seal
  • Front hub bearing oil seal
  • Direct fit.
  • Fits Willys MB, CJ-2, CJ-3, CJ-5 and CJ-6 models

Axle seal basics for early Jeeps

An axle seal keeps gear oil in the axle housing and stops dust and water from reaching the bearings. On Dana 27 axles of this age, a worn seal often leaves an oily film on the inside of the wheel or a drip below the axle tube. Left alone, the leak can lower oil levels and damage the bearings and brake parts nearby.

Replacing the seal is a good time to check the bearings, the axle shaft, and the bearing retainer. Old seals harden over the years, so take care not to score the shaft when removing the old one. Packing the seal lip with fresh grease and checking the axle oil level after installation helps the new seal last.

  • Check the axle oil level after fitting
  • Inspect the shaft for grooves
  • Look for leaks at the axle tube
  • Replace the gasket when the cover is removed

Specifications

Brand Omix-Ada
Part number 16708.01
UPC 804314013707
_pn 16708.01
Part type Outer axle seal
Axle Dana 27
Fit type Direct fit (Omix-ADA)

Measure the old seal and compare it before fitting.

Vehicle fitment

It fits the 1959-1960 Jeep CJ3, CJ5 and CJ6, the 1946-1949 Willys CJ-2, the 1949-1958 Willys CJ-3, the 1955-1958 Willys CJ-5, the 1956-1958 Willys CJ-6 and the 1941-1942 Willys MB.

The manufacturer fitment list for part 16708.01 covers: 1959–1960 Jeep CJ3; 1959–1960 Jeep CJ5; 1959–1960 Jeep CJ6; 1946–1949 Jeep Willys CJ-2; 1949–1958 Jeep Willys CJ-3; 1955–1958 Jeep Willys CJ-5; 1956–1958 Jeep Willys CJ-6; 1941–1942 Willys MB.

Not listed: later CJs and the Wrangler. Confirm your vehicle’s year, model and trim before ordering.

What’s included

  • One outer axle seal
SKU: OAI16708.01 Category:

Specification

Shipping weight 0.10 lbs
Package dimensions 4.00 × 4.00 × 1.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ31959–1960Base
Jeep CJ51959–1960Base
Jeep CJ61959–1960Base
Jeep Willys CJ-21946–1949All
Jeep Willys CJ-31949–1958All
Jeep Willys CJ-51955–1958All
Jeep Willys CJ-61956–1958All
Willys MB1941–1942Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What axle is the Omix-ADA 16708.01 for?

The 16708.01 is a Dana 27 outer axle seal for early Willys MB and CJ-2 through CJ-6 models. Confirm the hub position on your vehicle before installing it.

Is the 16708.01 a front or rear seal?

It can be used as a rear Dana 27 oil seal or a front hub bearing oil seal, so the hub position depends on your axle setup. Confirm which hub takes the seal before ordering.

Does the 16708.01 fit a CJ3?

Yes. It fits the 1959-1960 CJ3 and the 1949-1958 Willys CJ-3. Confirm your model year before ordering, since years outside those ranges are not covered.

How do I know if the axle seal is leaking?

Look for oil on the inside of the wheel, on the brake backing plate, or dripping from the axle housing. A leaking seal should be replaced, and the gear oil level should be topped up to the level required for your axle.
