Overview

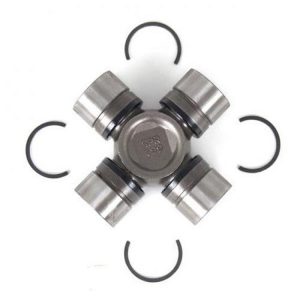

The Dana Spicer 5-760X is a heavy duty axle U-joint for Dana 30, Dana 35 and Dana 44 axles, with a 1.188 in cup size and a 2.188 in snap ring to snap ring measurement.
The joint has a forged cross, improved seals that help keep water out, and no lube channel. The design is intended to help prevent breakage behind high performance engines and large tires.
Key features
- Heavy duty forged cross
- Improved Perma-lube seals to keep water out
- Inside snap ring retention
- Not lubeable, no lube channel
- Highway rated
- O.E.M. replacement
Driveline wear and U-joint care
A U-joint lets the driveshaft change angle as the axle moves, so it works hard every time the suspension travels. Wear usually shows as a clunk when shifting from drive to reverse, a vibration that rises with speed, or a squeak when turning from a stop. Because this joint has no lube channel, it cannot be greased through a fitting, so wear is often found by checking for play at the yoke.
When replacing a joint, look at the parts around it. Yoke ears, bearing caps and the pinion flange can wear and affect how a new joint seats. Driveshaft angles matter as well, and a joint that is worn at one end often means the other end needs attention. Clean the yoke bores before fitting the new cups, and keep the seals free of dirt during installation.
- Listen for clicks when turning from a stop
- Check for play at the yoke
- Inspect seal condition before installing
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 5-760X |
| UPC | 23913121297 |
| Axle applications | Dana 30, Dana 35, Dana 44 |
| Cup size | 1.188 in |
| Snap ring to snap ring | 2.188 in |
| Retention | Inside snap ring |
| Lubeable | No |
| Highway rated | Yes |
Vehicle fitment
No vehicle fitment is stated. The U-joint is named for Dana 30, 35 and 44 axles and gives cup and snap ring dimensions, so compare those with your existing joint before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the cup size and snap ring to snap ring measurement against the old joint before ordering. U-joint replacement requires driveshaft removal, which a qualified technician should handle.
What’s included
Check the package contents and any needed hardware against your installation before starting.
