Overview

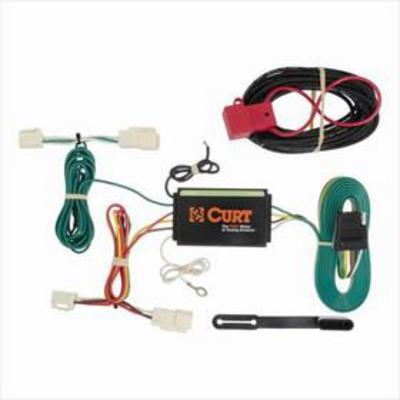

The Curt Manufacturing CRT56189 is a 3-wire wiring T-connector for the 2014–2018 Mitsubishi Outlander in ES, GT, SE and SEL trims. It plugs into the factory harness and has a listed install time of 45 minutes.
Key features
- 3-wire system
- Plugs into the factory harness
- 4-pin connector included
- Dust cap and ground wire included
- Install time listed at 45 minutes
Wiring a T-connector safely
A T-connector sits between the vehicle’s factory harness and a trailer wiring plug, so the connection needs to be secure before any testing begins. Work with the battery disconnected, and make sure each terminal is fully seated before closing the housing. Loose or corroded connections are a common cause of intermittent trailer lights, so take the time to check them.
The ground wire deserves the same care. Attach it to bare metal, clean away paint or rust under the screw, and tighten it firmly. Route the harness so no wire rubs on sharp edges or sits near pedals and linkages. A tidy, well supported run makes later troubleshooting much easier.
- Test lights and brake signals after the first drive
- Re-check the ground screw after a few trips
- Keep the dust cap on when the plug is unused
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT56189 |
| Wiring system | 3-wire |
| Install time | 45 min |
| Included | 4-pin connector, dust cap, ground wire with self-tapping screw |
Vehicle fitment
It fits the 2014–2018 Mitsubishi Outlander in ES, GT, SE and SEL trims.
The Outlander Sport and other model years are not among the fitted models, so check your model name and year before installing.
Installation notes
Connection is made at the factory harness. Curt lists 45 minutes for the install, and the ground wire is secured with its self-tapping screw.
What’s included
A 4-pin connector, dust cap and ground wire with self-tapping screw are included.
