Overview

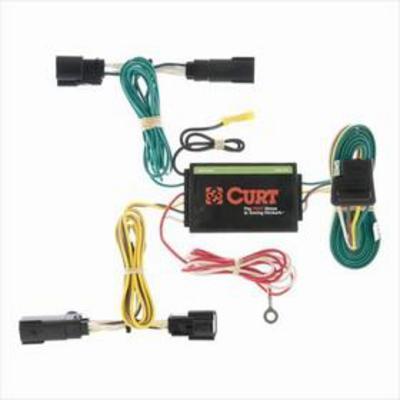

The Curt Manufacturing CRT56121 is a standard 2-wire wiring T-connector for the 2011-2013 Lincoln MKX (Base). It plugs directly into the factory harness and has a listed install time of 45 min.
The kit includes a 4 pin connector, a dust cap and a ground wire with a self-tapping screw.
Key features
- Standard 2-wire system
- Plugs into the factory harness
- Ground wire with self-tapping screw
- Dust cap for the connector
Checking the factory harness
Before connecting anything, look over the factory harness at the lamp plug. Brittle clips, cracked housings and green or white residue on the pins all point to a connection that needs cleaning or repair before a new part goes on. A gentle inspection with a flashlight catches most problems early, and it helps you spot whether the plug is already seated loosely in its housing.
If the pins look clean, a basic continuity check with a multimeter can confirm that each circuit reaches the lamp. Test one function at a time and note which one fails, if any. Avoid pulling on the wires themselves when unplugging, since the strain can break the crimps inside the connector. Gently release the latch and pull from the housing instead.
- Look for cracked or brittle clips
- Check pins for corrosion or residue
- Use a multimeter to confirm continuity
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT56121 |
| Type | Wiring T-connector |
| Wiring system | Standard 2-wire system |
| Install time | 45 min |
| Included | 4 pin connector, dust cap, ground wire with self-tapping screw |
Vehicle fitment
It is a direct fit for the 2011-2013 Lincoln MKX Base trim.
Other MKX trims, other years and other Lincoln models are not in the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The connector mates with the factory harness, and the ground wire is held by its self-tapping screw. Listed install time is 45 min.
What’s included
A 4 pin connector, a dust cap and a ground wire with a self-tapping screw.
