Overview
The Curt Manufacturing 56245 is a 3-wire wiring T-connector for 2013–2017 Buick Enclave, Chevrolet Traverse and GMC Acadia vehicles. It plugs directly into the factory harness, and Curt lists its install time as 20 min.

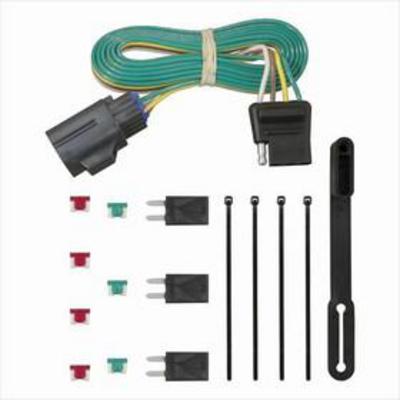

The T-connector comes with a 4 pin connector, a dust cap and a ground wire that is fastened with a self-tapping screw. It is a direct fit, and the covered vehicles are shown in the fitment section below.
Key features
- Plugs directly into the factory harness
- 3-wire system
- 4 pin connector included
- Dust cap included
- Ground wire with self-tapping screw
- Install time 20 min.
Before you install
A 3-wire T-connector works with a trailer lighting circuit that the vehicle already supplies, so the trailer side can be wired at a single tap point. Before cutting in, confirm the wire colors on the factory harness match the instructions, and do not rely on color alone for identification. A short test with a helper at the rear lights confirms the correct circuit before the trailer is connected.
Disconnecting the battery is the first step whenever wiring is opened. Keep the ground wire on bare, clean metal and tighten the self-tapping screw firmly. After the trailer is connected, look over the harness plug and routing for chafe points. Re-check the ground screw after the first few tows, since vibration can loosen it.
- Test each light function before towing
- Route the harness away from moving parts
- Keep the dust cap on any unused port
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT56245 |
| Wire system | 3-wire |
| Connector | 4 pin |
| Included | Dust cap, ground wire with self-tapping screw |
| Install time | 20 min. |
| Fitment | Direct fit |
Vehicle fitment
The manufacturer fitment list covers 2013–2017 Buick Enclave (Base, Convenience, Leather, Premium), 2013–2017 Chevrolet Traverse (LS, LT, LTZ, Premier), 2013–2016 GMC Acadia (Denali, SL, SLE, SLT) and the 2017 GMC Acadia Limited (Base).
Other models, such as the Chevrolet Equinox, are not on this list, and years outside the ranges above are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Attach the ground wire with the included self-tapping screw to a clean metal point. Disconnect the battery before working on the factory wiring harness.
What’s included
A 4 pin connector, a dust cap and a ground wire with a self-tapping screw.
Not included: the vehicle’s factory harness, which the T-connector plugs into.
