Overview

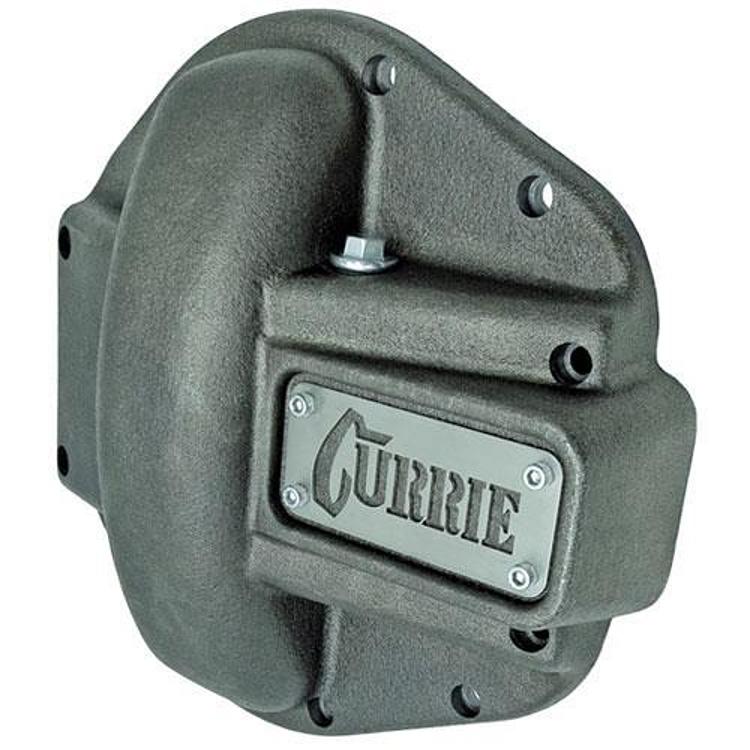

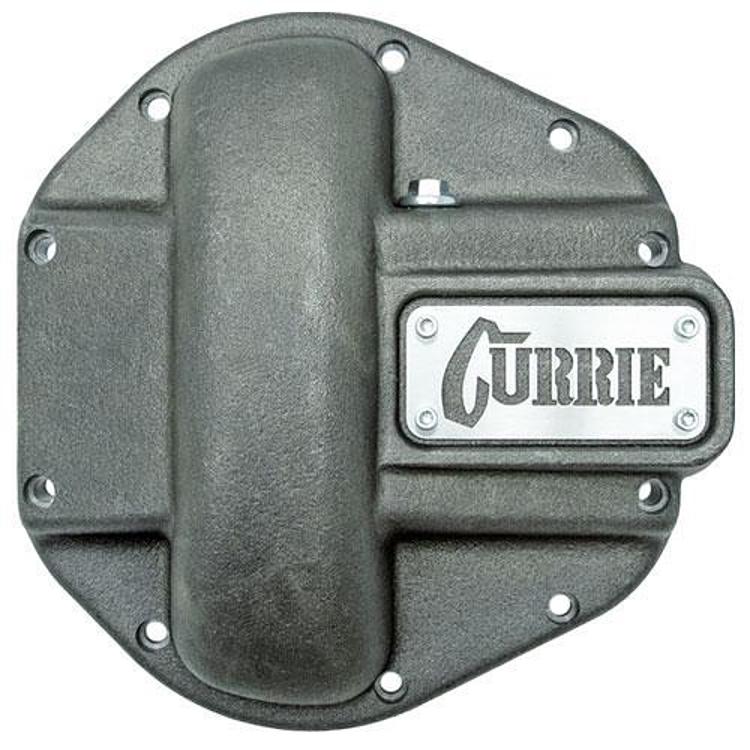

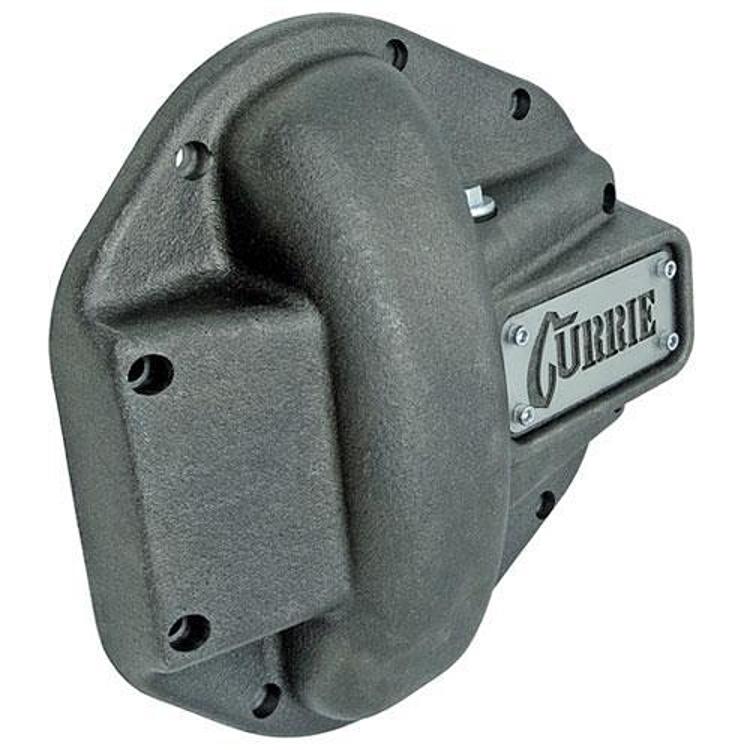

The Currie 60-1005CP is a cast iron differential cover for Dana 60 axles, for front and rear positions. It is designed to protect the differential from off-road obstacles and to reinforce the axle housing.
The title refers to 60/70, but the axle type given is Dana 60. The cover has a natural finish and a standard capacity design.
Key features
- Cast iron body
- Designed to protect the differential from off-road obstacles
- Designed to reinforce the axle housing
- Natural finish
- Standard capacity design
Cast iron cover care
Cast iron covers are heavy, rigid and well suited to rough use, since they hold their shape when a rock or stump contacts them. The trade-off is weight, which adds to unsprung mass, and a casting can crack if it takes a hard hit at a thin spot. Look over the cover after trail use for hairline cracks and check the mounting ears for distortion.
When the cover comes off, clean the sealing surface and remove any burrs with a fine file so the new gasket seats flat. Cast covers depend on fasteners holding even pressure, so tighten them in a crisscross pattern and recheck after the first drive. Keep the axle filled to the correct level once the cover is in place.
- Inspect for hairline cracks after trail use
- Remove burrs from the sealing surface
- Tighten in a crisscross pattern
- Recheck fasteners after the first drive
Specifications
| Brand | Currie |
|---|---|
| Part number | 60-1005CP |
| UPC | 70000662383 |
| Material | Iron |
| Finish | Natural |
| Oil capacity | Standard capacity |
| Axle location | Front and rear |
| Axle manufacturer | Dana |
| Axle type | Dana 60 |
| Fitment | Universal Fit |
Vehicle fitment
No vehicle years, makes or models are named for this cover. It is shown as Universal Fit with Dana 60 axles, so confirm the axle type on your housing before ordering.
Confirm fit for your vehicle’s year, model and trim, and match the axle type on your housing before ordering.
What’s included
Check the package contents against your installation before starting.
