Mountain Off Road Enterprises Boomerang Lubeable Shackles – LS9091HD

Mountain Off Road Enterprises

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Mountain Off Road Enterprises LS9091HD boomerang lubeable shackles for 1987-1995 Jeep Wrangler YJ
  • Laser cut from 3/8 inch steel plate for front or rear use
  • Rifle drilled 9/16 inch shackle bolt with grease zerk
  • 5/8 inch lift listed in the short specification

Description

Overview

The Mountain Off Road Enterprises LS9091HD is a boomerang lubeable shackle for 1987-1995 Jeep Wrangler YJ models, suited to front or rear use. The shackles are laser cut from 3/8 inch steel plate rather than stamped from thinner stock.

The bolts are rifle drilled with a grease zerk, and the black polyurethane bushings are channeled so grease can flow through them. Crimp lock nuts hold the parts together. The lift is 5/8 inch and the finish is zinc plated gold.

Key features

  • Boomerang shape
  • Laser cut from 3/8 inch steel plate
  • Rifle drilled 9/16 inch shackle bolt with grease zerk
  • Channeled black polyurethane bushings
  • Crimp lock nuts and grade 5 hardware on the center brace
  • 5/8 inch lift listed in the short specification

Lubrication and grease flow

Lubeable shackles are designed so grease reaches the bushing and bolt without removing the assembly each time. Grease is pushed in through the zerk on the rifle drilled bolt, then moves through the channeled bushing to the pin surface. Keeping the zerk clean before greasing prevents dirt from being forced into the joint, which is a common cause of early bushing wear.

Polyurethane bushings are firmer than rubber and hold up well to regular contact with grit, but they still benefit from periodic greasing and inspection. Check for cracks, flattening or bulging at the bushing edge. Crimp lock nuts should be checked for tightness during service, and any damaged nut should be replaced rather than reused. A lifted suspension also changes joint angles, so inspect the bushings after the first few drives.

Specifications

Brand Mountain Off Road Enterprises
Part number LS9091HD
UPC 70000503441
Location Front or rear
Shape Boomerang
Material 3/8 inch laser cut steel plate
Shackle bolt 9/16 inch, rifle drilled
Bushings Black polyurethane, channeled
Hardware Grade 5 center brace bolts, crimp lock nuts
Finish Zinc plated gold
Lift 5/8 inch
Quantity Pair

Vehicle fitment

The LS9091HD fitment covers the 1987-1995 Jeep Wrangler (YJ) in Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims.

Non-Wrangler models, including the CJ and Scrambler, are absent from this fitment. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Grease the shackle bolts through the zerk fittings after installation, since the channeled bushings are designed to pass grease through. Because the short specification gives a 5/8 inch lift, check driveline angles and steering alignment once the work is done.

What’s included

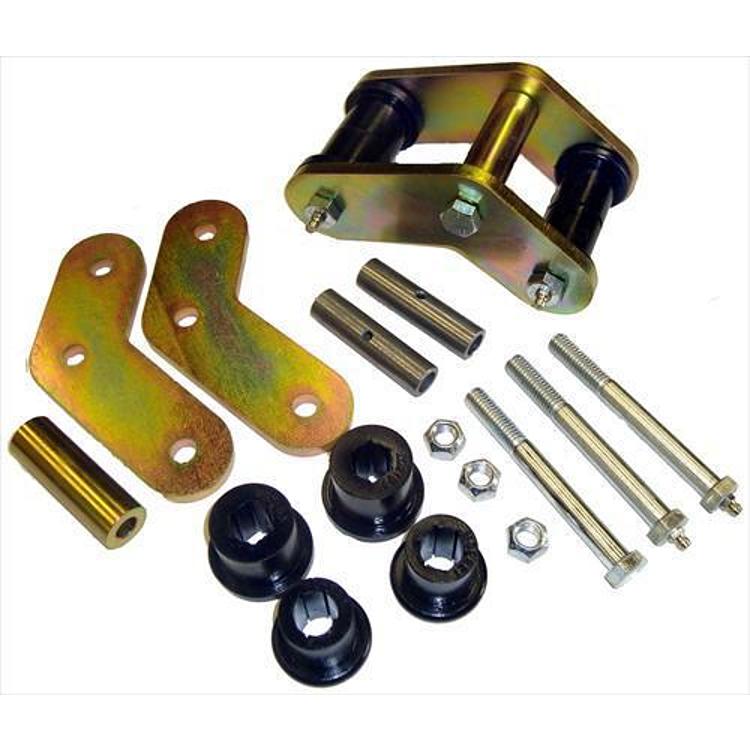

A pair of boomerang shackles with rifle drilled, greasable bolts, polyurethane bushings, center braces and crimp lock nuts.

SKU: MRELS9091HD Category:

Specification

Shipping weight 11.00 lbs
Package dimensions 6.00 × 6.00 × 4.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the LS9091HD for the front or the rear?

Both. The location is given as front or rear, so the shackle can be fitted to whichever end of the leaf spring you are replacing.

How much lift does the LS9091HD give?

The lift is 5/8 inch. After installing it, check driveline angles and steering alignment, because a lift changes the geometry of the suspension.

Does the LS9091HD fit a Jeep Wrangler YJ?

Yes. Mountain Off Road Enterprises gives it for 1987-1995 Jeep Wrangler (YJ) models, including Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims. Confirm your vehicle's year, model and trim before ordering.

What are the bushings made of?

The bushings are black polyurethane and channeled so grease can flow through them. Grease enters through a zerk on the rifle drilled bolt, and crimp lock nuts keep the assembly together.

Can a lubeable shackle be greased without a grease gun?

Greasing needs a grease gun that fits the zerk. Hand grease guns and most standard fittings work, but wipe the tip clean first. Without grease, the bushing and bolt wear faster, so greasing should be part of regular service.
