Currie Johnny Joint Heavy-Duty Adjustable Front Trac Bar – CE-9120TJJ

Currie

Shop Jeep Cherokee XJ Track Bars on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie Johnny Joint adjustable front trac bar, part number CE-9120TJJ
  • Fitment covers the TJ, XJ, LJ and MJ chassis
  • 1 1/4 inch by .250 wall 4130 chrome moly tubing with offset Johnny Joint rod end
  • Drilling required; includes heavy duty housing bolt and nut plate kit

Description

Overview

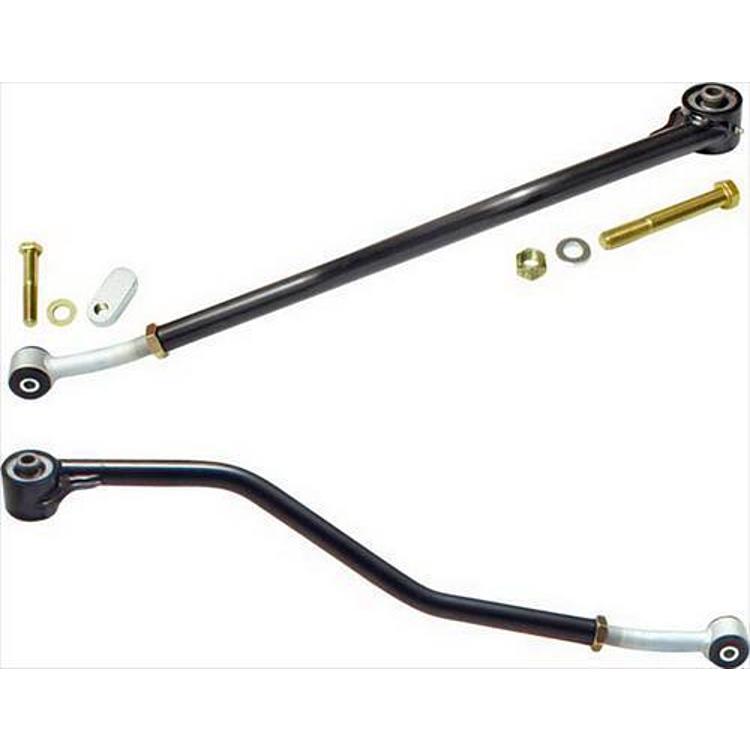

The Currie CE-9120TJJ is an adjustable front trac bar with an offset Johnny Joint rod end, part number CE-9120TJJ, built for the Jeep TJ, XJ, LJ and MJ. A trac bar, also called a track bar, controls the axle’s side-to-side position under the vehicle, and an adjustable bar lets you re-center the axle after a lift. Currie presents this as an all-new and improved heavy duty version of its Johnny Joint design.

The offset Johnny Joint rod end moves the bar further forward, adding clearance between the differential and the trac bar. The bar is 1 1/4 inch by .250 wall 4130 chrome moly with a welded-in gusset running from the bar to the Johnny Joint, a heavy duty adjuster end with urethane bushing and steel insert sleeve, and a semi-gloss black powder coat finish.

Some drilling is required. The supplied frame bolt is 5/8 inch and the supplied housing bolt is 1/2 inch, and both holes must be drilled to size to accept the heavier duty hardware. A heavy duty nut plate kit is supplied for the housing end.

Key features

  • Offset Johnny Joint rod end for more clearance between the differential and the trac bar
  • 1 1/4 inch by .250 wall 4130 chrome moly construction
  • Welded-in gusset from the bar to the Johnny Joint
  • Heavy duty adjuster end with urethane bushing and steel insert sleeve
  • Semi-gloss black powder coat finish
  • Adjustable length

Setting up the track bar

A track bar controls the axle’s side-to-side movement, so it needs correct length and secure ends to keep the axle centered. Adjustable bars make it possible to re-center the axle after a lift, but every length change should be followed by an alignment check. Keep a record of the setting so you can return to it after a service. Look at the bar ends and frame mounts after each off-road trip.

Heavier bars and enlarged holes place more load on the frame and housing, so inspect the surrounding mounts for cracks or elongation after installation. Lift height, tire size and axle position all affect the correct bar length, so measure before final tightening. Replace worn ends or bushings promptly if you notice play or knocking when the steering is turned.

  • Check bar length after changing lift
  • Inspect frame and housing mounts for cracks
  • Replace worn ends or bushings promptly

Specifications

Brand Currie
Part number CE-9120TJJ
UPC 70000533408
Position Front
Tubing 1 1/4 inch by .250 wall, 4130 chrome moly
Rod end Offset Johnny Joint
Frame bolt 5/8 inch, supplied (drill to size)
Housing bolt 1/2 inch, supplied, heavy-duty housing bolt (drill to size)
Finish Semi-gloss black powder coat
Fitment type Direct fit

Vehicle fitment

The bar is built for the Jeep TJ, XJ, LJ and MJ chassis. It covers the Jeep Wrangler TJ from 1997 to 2006, the Cherokee XJ from 1984 to 2001, the Wrangler LJ from 2004 to 2006 and the Comanche MJ from 1986 to 1992.

Other Jeep generations, including the JK Wrangler, fall outside this fitment. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Drilling is required, so the bar is not a simple bolt-on until the frame and housing holes are enlarged. Drill to the size of the supplied 5/8 inch frame bolt and 1/2 inch housing bolt, then fit the heavy duty nut plate kit at the housing end. Have the track alignment checked after setting the bar length, because changing the length moves the axle position. Support the axle with stands while drilling.

What’s included

The bar includes the supplied 5/8 inch frame bolt, the heavy-duty housing bolt and a heavy duty nut plate kit for the housing end.

Not included: Drill bits and drilling equipment are needed to enlarge the holes.

SKU: CURCE-9120TJJ Category:

Specification

Shipping weight 24.00 lbs
Package dimensions 36.00 × 4.00 × 4.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ) likely fits1984–2001All
Jeep Comanche likely fits1986–1992All
Jeep Wrangler (LJ) likely fits2004–2006All
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Currie CE-9120TJJ fit a Jeep TJ?

Yes. The TJ is covered for 1997 to 2006 Wrangler models, and the bar is built for the TJ, XJ, LJ and MJ chassis. Confirm your vehicle's year, model and trim before ordering.

Does this bar need drilling?

Yes. Some drilling is required, and the frame and housing holes must be drilled to size for the supplied 5/8 inch frame bolt and 1/2 inch housing bolt. The bar also includes a heavy duty nut plate kit for the housing end.

What is the material and finish?

The bar is 1 1/4 inch by .250 wall 4130 chrome moly with a semi-gloss black powder coat finish. The rod end is an offset Johnny Joint, and the adjuster end has a urethane bushing and steel insert sleeve.

What is the part number and UPC?

The part number is CE-9120TJJ, and the UPC is 70000533408. Confirm the part number and UPC against your order and your installation needs before buying the bar.

How often should a track bar and its ends be inspected?

Inspect the bar ends, bushings and frame mounts after any hard off-road use and at regular service intervals. Look for play in the joints, cracked welds and torn boots, and replace worn parts before they affect axle position.
