Overview

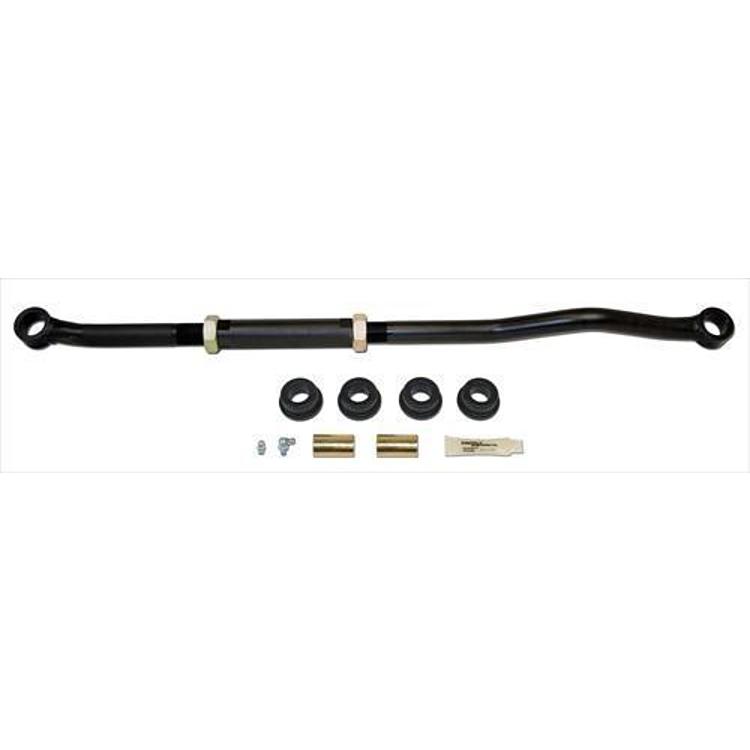

The BD Diesel 1032013-F is a fully adjustable track bar kit for Ford Super Duty trucks. It keeps the front axle in line with the frame and is designed for stock height up to 8 inch lifts.
The 1-5/8 inch track bar has a stamp forged rod end, heat treated and coated with Black Chromate. The finish resists flaking and helps protect the threads from seizing. Reversed threads on each end allow length changes while the bar is mounted.
Key features
- Fully adjustable length
- Reversed threads on each end, adjustable on the truck
- Stamp forged rod end, heat treated
- Black Chromate coating
- Designed for stock height up to 8 inch lifts
Setting length and alignment
A track bar keeps the front axle centered side to side, so it is a major factor in steering stability and tire wear. Adjusting length on the truck lets you bring the axle back under the vehicle after a lift or after a component change. Make small adjustments and check the front end alignment after each set of changes.
Chromate-finished threads resist seizing, but they still need periodic cleaning and light lubrication where the adjustment sleeve turns. Keep the sleeve locking hardware tight after every change, and inspect the rod ends for play. A bent bar or worn joint will show up as an off-center steering feel, so address it before highway driving.
- Adjust in small steps and recheck
- Clean and lubricate threads at service
- Tighten sleeve hardware after each change
Specifications
| Brand | Bd Diesel |
|---|---|
| Part number | 1032013-F |
| UPC | 19025010574 |
| Vehicle named | Ford Super Duty |
| Bar size | 1-5/8 inch |
| Rod end | Stamp forged, heat treated |
| Finish | Black Chromate |
| Lift range | Stock height up to 8 inch lift |
Vehicle fitment
Ford Super Duty trucks are the named application. Confirm fit for your vehicle’s year, model and trim, including the chassis code, before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the bar is adjusted while mounted, set the length on the vehicle and have the front end alignment checked afterward.
What’s included
The kit includes the track bar, an adjustment sleeve and a mounting bracket. Check the bolts and other hardware against your installation before starting.
