Currie Antirock Rear Sway Bar System – CE-9900TJR

Currie

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie CE-9900TJR complete rear Antirock sway bar system for Jeep TJ and LJ Wrangler
  • 44-inch sway bar with adjustable heim jointed links
  • Bolt-on frame brackets; housing tabs are weld-on and require welding
  • Includes bushings, all necessary hardware and detailed instructions

Description

Overview

The Currie CE-9900TJR is a complete rear Antirock sway bar system for the Jeep TJ and LJ Wrangler, with a 44-inch sway bar. The kit is bolt-on except for the housing tabs, which must be welded to the rear axle housing.

This is a complete rear Antirock system for TJ and LJ Wranglers. It uses semi-gloss black powder coated bolt-on frame brackets, sway bar bushings and adjustable heim jointed sway bar links. The axle housing tabs are weld-on. The kit includes the necessary hardware and detailed instructions. Installation needs minor welding of the housing tabs and trimming of the rear inner wheel wells so the sway bar arms can travel.

Key features

  • Complete rear sway bar system for TJ and LJ Wranglers
  • 44-inch sway bar
  • Semi-gloss black powder coated bolt-on frame brackets
  • Adjustable heim jointed sway bar links
  • Weld-on housing tabs for axle attachment
  • Sway bar bushings and all necessary hardware

Welding and axle attachment

Because the housing tabs are weld-on, the axle attachment is the most important step in this installation. Welds on axle housing need clean metal, correct heat and careful placement so the tabs carry load without cracking. Work done by someone without welding experience on a rear axle can weaken the housing, so the job should be planned carefully.

Trimming the rear inner wheel wells gives the sway bar arms room to travel through their full range. Check clearance with the tires turned and the suspension at full compression before final tightening. After installation, inspect the welds and the bracket hardware after the first drives, and recheck clearance around the tires and arms.

  • Use a qualified welder for the axle housing tabs
  • Check arm clearance at full compression
  • Inspect welds and hardware after first drives

Specifications

Brand Currie
Part number CE-9900TJR
UPC 70000513137
Sway bar length 44 inch
Finish Semi-gloss black powder coat (brackets)
Frame attachment Bolt-on frame brackets
Axle attachment Weld-on housing tabs
Links Adjustable, heim jointed
Mounting location Rear
Spring rate type Single rate
Type Automatic

Vehicle fitment

It fits the 1997–2006 Jeep Wrangler (TJ) and the 2004–2006 Jeep Wrangler (LJ).

It does not fit the Wrangler JK, JL or Gladiator. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Welding is required to attach the housing tabs, and the rear inner wheel wells must be trimmed for sway bar arm travel. Detailed instructions are included. Have the welds on the axle housing checked by a qualified welder before driving.

What’s included

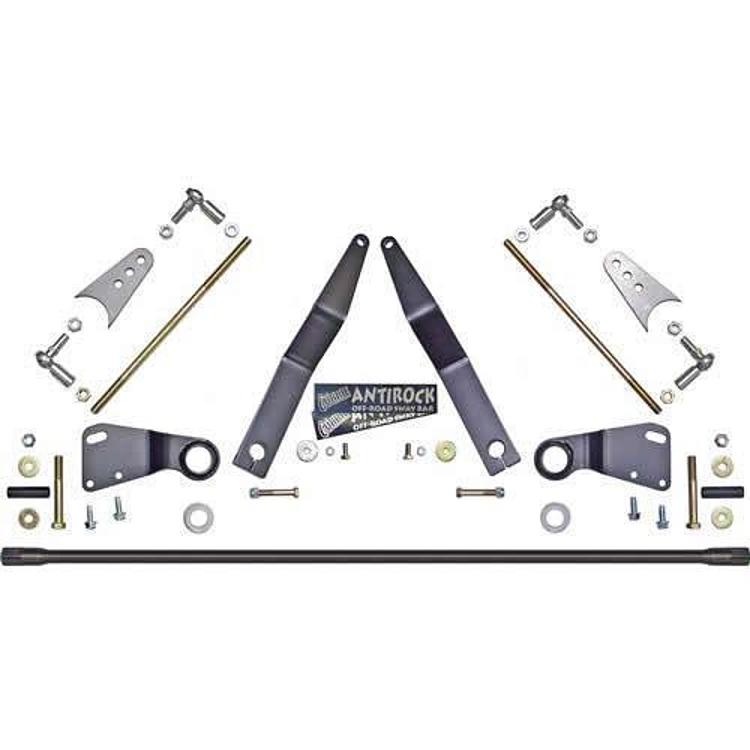

44-inch sway bar, semi-gloss black powder coated bolt-on frame brackets, sway bar bushings, adjustable heim jointed sway bar links, weld-on housing tabs, all necessary hardware and detailed instructions.

Not included: Welding and wheel well trimming, which installation requires.

SKU: CURCE-9900TJR Category:

Specification

Shipping weight 20.80 lbs
Package dimensions 45.80 × 4.50 × 3.30 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ) likely fits2004–2006All
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which Jeeps does the CE-9900TJR fit?

It fits the 1997–2006 Jeep Wrangler TJ and the 2004–2006 Jeep Wrangler LJ. Confirm your year and model before buying.

Does this bar bolt on without welding?

No. The frame brackets bolt on, but the housing tabs must be welded to the axle housing. Installation also requires minor welding and trimming of the rear inner wheel wells.

What is the sway bar length?

It is a 44-inch sway bar. The kit also includes adjustable heim jointed sway bar links and all necessary hardware.

Is professional welding needed for the axle tabs?

A qualified welder is the safer choice for the axle housing tabs, since the welds carry load through the rear axle. Have the welds checked before driving the vehicle.
