Overview
The Currie CE-9900JKR4 is a rear Antirock sway bar system for four-door Jeep Wrangler JK models from 2007 on. It replaces the stock Jeep sway bar with a bar of SAE 4130 heat treated steel, mounted with semi-gloss black powder coated bolt-on steel frame brackets.
The rear bar is made for four-door Jeep Wrangler JK models from 2007 on. It works alongside a front Antirock sway bar kit to balance performance across the front and rear suspension on rugged off-road terrain. The bar bolts into existing holes in the bottom of the frame rail and attaches to the stock mounts on the axle housing. It does not need to be disconnected for off-road use, but Jeeps will have more body roll than stock.
Key features
- Designed for four-door Jeep Wrangler JK models
- SAE 4130 heat treated steel bar
- Semi-gloss black powder coated bolt-on steel frame brackets and arms
- Delrin bushings
- Adjustable length heim jointed sway bar links
- Necessary hardware and step-by-step instructions included
Fitting a rear bar at home
A rear sway bar is generally a bolt-on job with basic hand tools and a torque wrench, but it still requires attention to the mounting points and fasteners. Start by identifying the frame and axle mounts, then loosely fit the brackets before fully tightening anything. Support the axle on stands so the suspension is not holding its own weight during the install.
Once it is mounted, inspect the bushings and heim joints for proper seating, and confirm the links move freely without binding through the normal range of travel. Expect the rear end to feel firmer on rough roads, and keep an eye on tire wear after the change. Retorque all hardware after the first drives, since new brackets can settle into their mounts.
- Use a torque wrench on all fasteners
- Check link movement through full travel
- Recheck hardware after the first drives
Specifications
| Brand | Currie |
|---|---|
| Part number | CE-9900JKR4 |
| UPC | 70000439547 |
| Bar material | SAE 4130 heat treated steel |
| Finish | Semi-gloss black powder coat |
| Bushings | Delrin |
| Links | Adjustable length, heim jointed |
| Body style | Four-door models |
| Mounting location | Rear |
| Spring rate type | Single rate |
| Type | Automatic |
| Fitment | Direct fit |
Vehicle fitment
It fits four-door Jeep Wrangler JK models from 2007 onward, covering 2007–2018 Jeep Wrangler (JK).
The kit is for four-door models only, so two-door JK Wranglers are not covered. Jeep JL and later generations are not covered either. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The kit requires no drilling or welding, because the frame brackets bolt into existing holes in the frame rail. Step-by-step instructions and the necessary hardware are included.

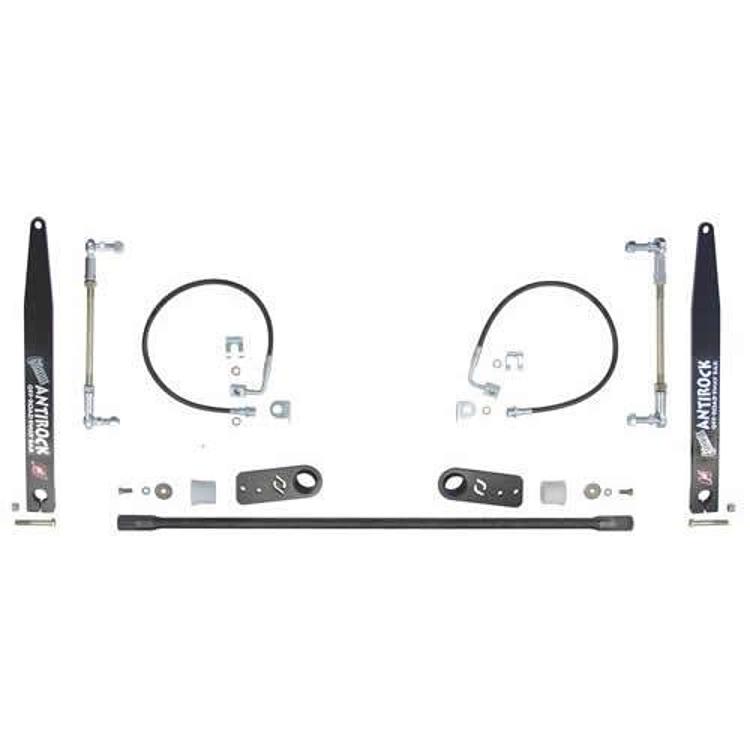

What’s included
Sway bar, semi-gloss black powder coated bolt-on steel frame brackets, Delrin bushings, semi-gloss black powder coated arms, adjustable length heim jointed sway bar links, necessary hardware, and step-by-step instructions.
