Overview
The 83503002 is a standard differential spider gear set for the Dana 35 rear axle. It fits the 1984-1993 Jeep Cherokee (XJ) and the 1987-1994 Jeep Wrangler (YJ). It is the gear group inside the differential carrier that lets the two wheels turn at different speeds in a corner.
The bill of material number must be known before ordering. Depending on that number, the set works with or without ABS. It fits 1993 YJs without bill of material number 605528, and 1993 XJs only with bill of material numbers 605534, 605535 and 605536.
Key features
- Dana 35 standard differential spider gear set
- Rear position
- Includes cross shafts, side gears, pinion gears and thrust washers
- Works with or without ABS depending on bill of material number
- Fits 1993 YJs without bill of material number 605528
- For 1993 XJ, only bill of material numbers 605534, 605535 and 605536
Rebuilding a Dana 35 carrier
Spider gears carry the load between the side gears and the cross shaft, so their wear shows up as noise on turns or uneven wheel speed. Check the gear teeth for chipping and the thrust washers for scoring. A worn set is easier to replace while the carrier is already open.
Setting backlash and bearing preload is part of any spider gear job. Carrier bearings that have been removed are hard to reuse cleanly, and worn bearings can shift the gear mesh. Use a dial indicator to check backlash, and record the shim positions before taking the carrier apart.
- Check gear teeth for chipping or scoring
- Inspect the thrust washers for wear
- Record shim positions before disassembly
- Set backlash with a dial indicator
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 83503002 |
| UPC | 848399025019 |
| _pn | 83503002 |
| Part type | Differential spider gear set |
| Axle | Dana 35 |
| Position | Rear |
| Differential | Standard |
| Fit type | Direct fit (Crown) |
Check the tooth counts against the gears in your carrier before installing.
Vehicle fitment
It fits 1984-1993 Cherokee (XJ) and 1987-1994 Wrangler (YJ) models.
Within those years, Crown adds the bill of material restrictions above for 1993 vehicles, so read the build tag or the original parts record for your vehicle first.
The manufacturer fitment list for part 83503002 covers: 1984–1993 Jeep Cherokee (XJ); 1987–1994 Jeep Wrangler (YJ).
Not listed: the XJ after 1993, the YJ before 1987 or after 1994, and the TJ and later models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the bill of material number for your vehicle before ordering, using the build tag or original parts record. The set is for a differential rebuild, which means opening the differential, usually with the axle housing or carrier removed.
What’s included

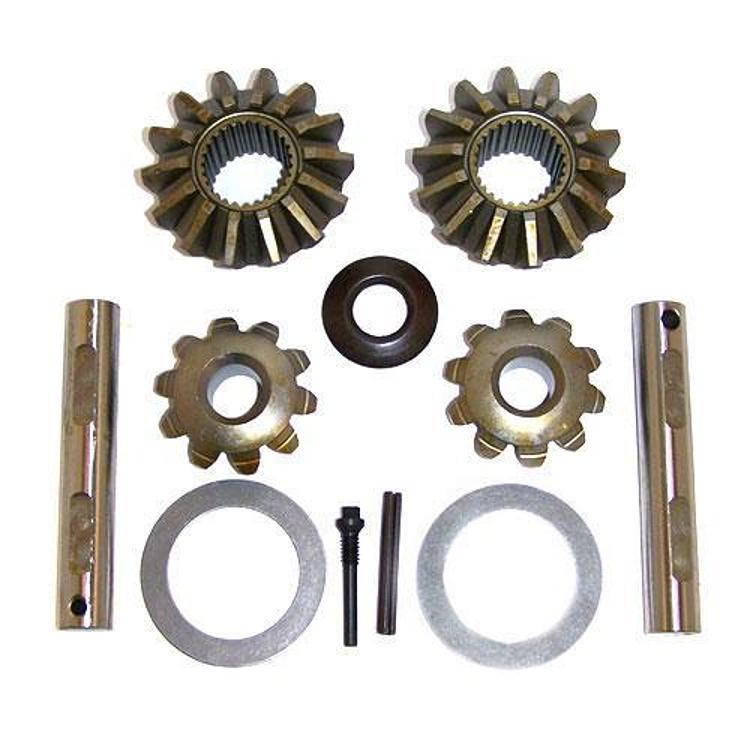

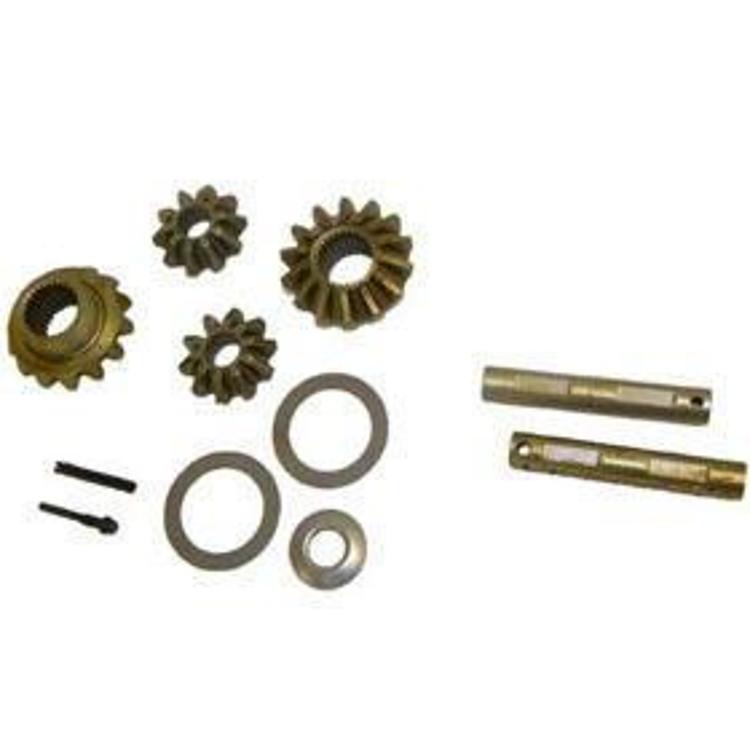

- 2 cross shafts
- 1 cross shaft roll pin
- 1 cross shaft bolt
- 2 side gears and thrust washers
- 2 differential pinion gears
- 2 pinion gear thrust washers
Not included: carrier bearings, a ring and pinion set or installation hardware beyond what is listed.
