Overview

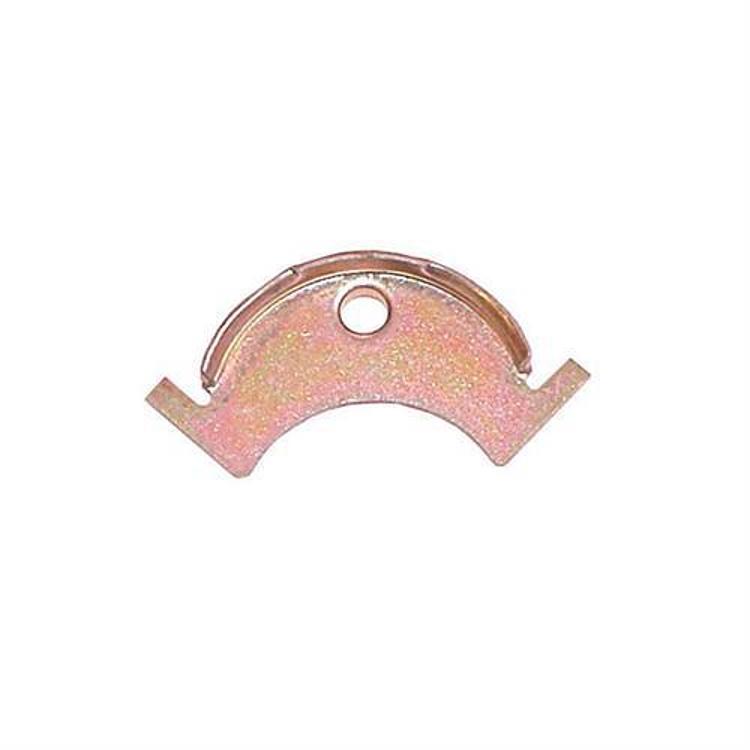

The Crown Automotive J3201947 is a drum brake self-adjusting cable guide that fits the driver or passenger side. It fits 13 Jeep and Dodge applications, including the Dodge Dakota 1997–2004, Durango 1998–2002 and Ram 1500, 2500 and 3500 in 2000–2001, plus many Jeep CJ, Cherokee (XJ), Comanche, Scrambler and Wrangler (YJ) years.
The guide holds the adjuster cable in its path in the drum brake, and it is a small part that goes with the adjuster cable.
Key features
- Drum brake self-adjusting cable guide
- Works on the driver or passenger side
- Direct-fit replacement design
- It fits Jeep and Dodge trucks and SUVs.
Inspecting the adjuster path
The adjuster cable in a drum brake pulls the self-adjuster wheel as the shoes wear, which keeps the shoes close to the drum. A cable guide keeps that cable routed along its intended path, so it does not rub the backing plate, catch on a spring or bind against the drum. When the guide wears, grooves, cracks or flattened edges can let the cable drag or slip, and the adjuster may then fail to take up wear evenly.
When you change a guide, inspect the adjuster cable as well. Look for fraying, kinks or rust where it passes the guide, and move the cable freely by hand before reassembly. Lubricate the pivot points lightly with a brake-safe grease and avoid getting any on the shoes or drum surface. After installation, make several reverse-and-forward adjustments and test the parking brake travel before driving.
- Check the cable for fraying or rust at the guide
- Confirm the cable moves freely before reassembly
- Keep grease off the brake shoes and drum
- Test the brake pedal and parking brake after service
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J3201947 |
| UPC | 848399059045 |
| Part type | Drum brake self-adjuster cable guide |
| Side | Driver or passenger |
| Fit type | Direct fit |
Vehicle fitment
It fits the Dodge Dakota 1997–2004, Durango 1998–2002 and Ram 1500, 2500 and 3500 in 2000–2001, the Jeep Cherokee (XJ) in 1984–1989 and 1994–2001, the CJ5, CJ7, CJ6, the 1986–1989 Comanche, the 2002 Liberty (KJ), the 1981–1985 Scrambler and the 1987–1989 Wrangler (YJ).
Years that fall between the listed ranges, such as the 1990–1993 Cherokee, are not covered. Confirm your vehicle’s year, model and trim before ordering.
What’s included
- One drum brake self-adjusting cable guide
