Overview

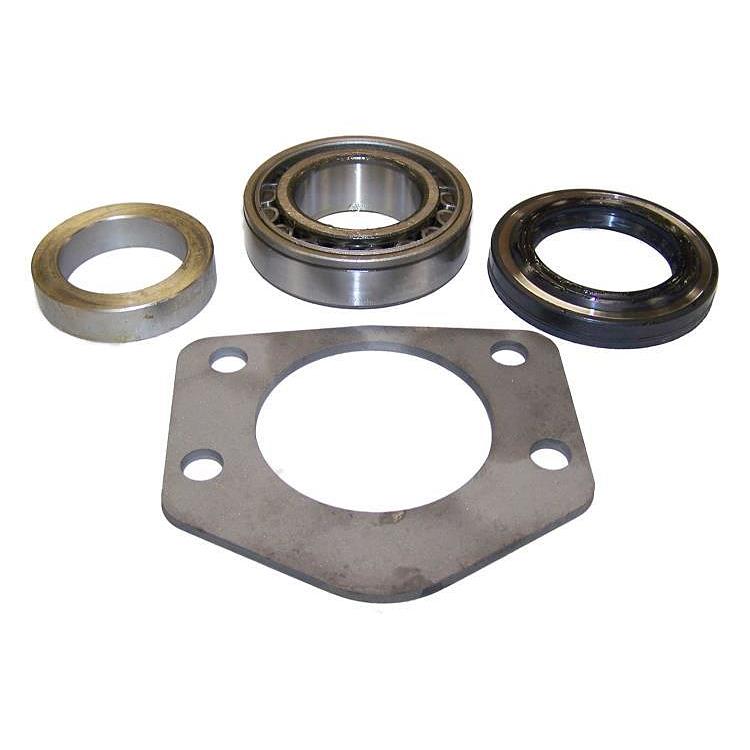

The Crown Automotive D44TJBK is a rear Dana 44 axle shaft bearing kit for the 1997-2006 Jeep Wrangler (TJ). It is sold per axle shaft, so each rear shaft needs its own kit.
It is a direct fit for the TJ Rubicon, SE, Sahara, Sport and X versions, plus the 65th Anniversary Edition.
Key features
- Rear Dana 44 axle shaft bearing kit
- Sold per axle shaft, one kit per shaft
- Direct fit for the 1997-2006 Wrangler TJ
- Crown Automotive part number D44TJBK
Dana 44 shaft and bearing care
The Dana 44 rear axle carries heavier loads than many older axles, so the shaft bearing and seal see steady stress on rough roads and during towing. Bearing wear shows up as play at the wheel, a noise that changes with speed or cornering, or heat from the hub. Catching these signs early keeps the shaft from wearing the bearing seat.
When the shaft is out, check the bearing seat and the spline end for wear or galling. Clean the axle tube and retainer, and apply fresh grease to the bearing before assembly. Inspect the rear axle flange bolts for tightness after the work, since a loose flange can cause the same noises.
- Check for play by rocking the wheel at top and bottom
- Inspect the spline end and bearing seat for galling
- Replace the seal when the bearing is replaced
- Recheck flange bolts after the first drive
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | D44TJBK |
| UPC | 848399079005 |
| Position | Rear |
| Axle | Dana 44 |
| Sold | Per axle shaft |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 1997-2006 Jeep Wrangler (TJ) only.
It does not fit the 2007-2018 Wrangler (JK) or the 2004-2006 Wrangler (LJ). Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Count the rear shafts you need before ordering, because each shaft takes its own kit.
What’s included
One kit for one axle shaft.
