Omix-ADA Dana 44 Axle Bearing and Cup – 16509.22

Omix-Ada

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Direct OE replacement Dana 44 axle bearing and cup
  • Rubicon trims need a fit check before ordering
  • Lists 1970-1975 CJ5, 1986 CJ7 and 1993-1998 Grand Cherokee ZJ
  • Omix-Ada part number 16509.22, UPC 804314040680

Description

Overview

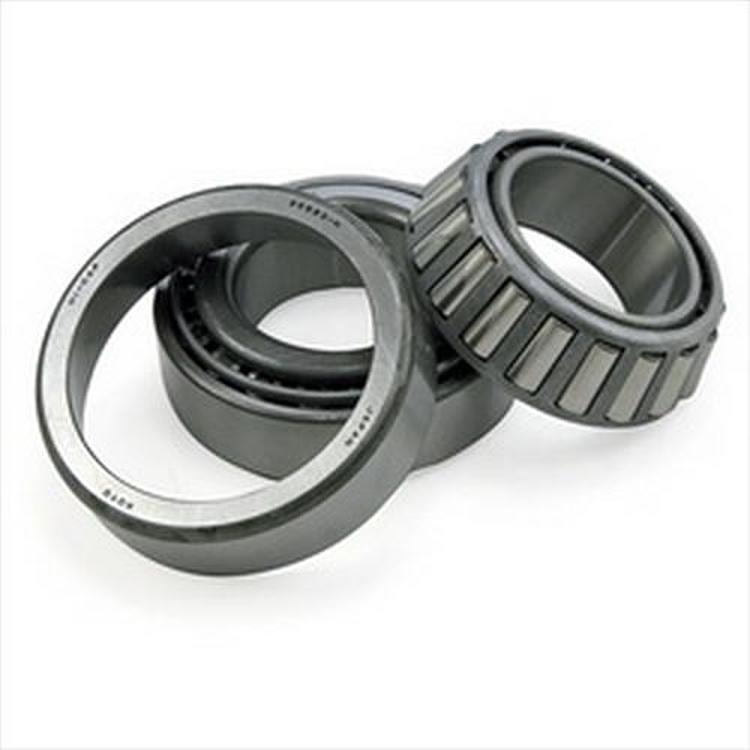

The Omix-Ada 16509.22 is a Dana 44 axle bearing and cup, sold as a direct OE replacement for early Jeep CJ, Grand Cherokee ZJ and Wrangler models. Omix-Ada builds its parts to the original specifications.

Covers the 1970-1975 CJ5, the 1986 CJ7, the 1993-1998 Grand Cherokee (ZJ), the 2004-2006 Wrangler (LJ), the 1997-2006 Wrangler (TJ) and the 2007-2011 Wrangler (JK). Rubicon models need a closer trim check.

Key features

  • Direct OE replacement built to original specifications
  • Dana 44 axle bearing and cup
  • Rubicon trims need a fit check
  • Covered by a limited five-year warranty

Bearing and cup replacement

Axle bearings and cups are a matched pair. The cup is pressed into the housing and the bearing rides inside it, so replacing one without the other usually leads to uneven wear. Bearing noise that changes with speed, looseness at the wheel, or heat near the hub are common signs the set is worn and due for service.

When replacing a bearing and cup, inspect the seal, the axle shaft and the housing bore for scoring or wear. Clean the bore thoroughly and use the correct installation tool so the cup seats square. Setting bearing preload correctly is important, and it is often done along with seal replacement. Keep the old parts for comparison until the new set is installed.

  • Replace the seal when the bearing is removed
  • Check the bore for scoring before pressing in the cup

Specifications

Brand Omix-Ada
Part number 16509.22
UPC 804314040680
Axle Dana 44
Warranty Limited five-year warranty
Fitment type Direct fit

Vehicle fitment

It fits the 1970-1975 Jeep CJ5, the 1986 CJ7, the 1993-1998 Grand Cherokee (ZJ), the 2004-2006 Wrangler (LJ) Unlimited and Unlimited Rubicon, the 1997-2001 and 2003-2006 Wrangler (TJ) and the 2007-2011 Wrangler (JK).

Some Rubicon trims are included in the fit range, and the JK entries end at 2011. Confirm your vehicle’s year, model and trim before ordering.

What’s included

This part is a single axle bearing and cup.

SKU: OAI16509.22 Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 6.00 × 5.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51970–1975Base, Renegade
Jeep CJ71986Base, Laredo, Renegade
Jeep Grand Cherokee (ZJ)1993–19985.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi
Jeep Wrangler (JK)2007–2011Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X, X
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–2001, 2003–2006Rubicon, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 16509.22 fit a Rubicon Jeep?

Rubicon trims need a closer check. Some Rubicon trims fall within the fit range, so confirm the trim against your vehicle before ordering.

Is the 16509.22 a Dana 44 bearing?

Yes. It is a Dana 44 axle bearing and cup, built by Omix-Ada to the original specifications as a direct replacement.

Which Jeep models does the 16509.22 bearing fit?

The list includes the 1970-1975 CJ5, the 1986 CJ7, the 1993-1998 Grand Cherokee ZJ, the 2004-2006 Wrangler LJ, the 1997-2006 Wrangler TJ and the 2007-2011 Wrangler JK.

Should the seal be replaced with the bearing and cup?

Often yes. The seal is usually removed along with the bearing, and a worn seal can leak after the new bearing is fitted. Inspect it for cracks, hardened lip material and grooves before reinstalling the axle.
