Omix-ADA Dana 44 Differential Pinion Bearing Shim Kit – 16512.07

Omix-Ada

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana 44 rear differential pinion bearing shim kit
  • Fits the 2001-2003 Jeep Wrangler (TJ)
  • Direct OE replacement, built to original specifications
  • Omix-Ada part number 16512.07, UPC 804314147167

Description

Overview

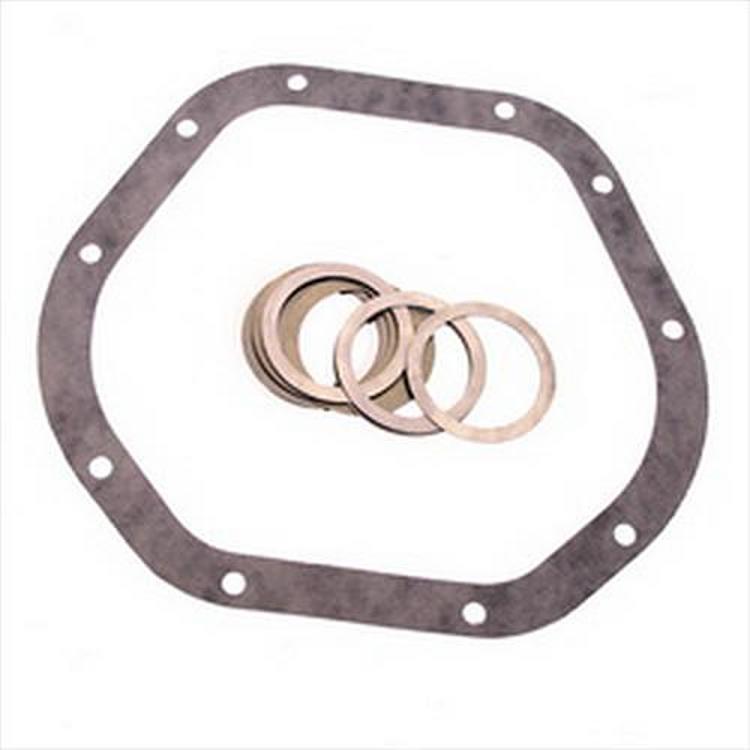

The 16512.07 is a shim kit for the rear Dana 44 differential pinion bearing, fitting the 2001-2003 Jeep Wrangler (TJ). Pinion bearing shims set the bearing position and preload during a pinion service.

It is a direct OE replacement built to original specifications, and it carries a limited five-year warranty.

Key features

  • Rear Dana 44 pinion bearing shim kit
  • Direct OE replacement built to original specifications
  • Covers the 2001-2003 Wrangler TJ
  • Limited five-year warranty

Setting pinion depth

Pinion depth is the position of the pinion gear inside the carrier, and it controls how the ring and pinion teeth mesh. Shims set that position in small steps, so a technician changes the stack until the contact pattern on the gear teeth is correct. Bearing preload is adjusted alongside depth, so the two are checked together rather than one at a time.

Because the pinion bearings and related hardware are usually replaced in the same job, plan on fresh parts if the old ones show wear. Keep each shim organized by thickness and by bearing position, so the stack goes back together exactly as measured. After the first few miles of driving, recheck gear noise and the contact pattern, since even a small change in shim thickness can shift both.

Specifications

Brand Omix-Ada
Part number 16512.07
UPC 804314147167
Position Rear
Axle Dana 44
Part type Pinion bearing shim kit
Fitment type Direct fit

Vehicle fitment

It fits the 2001-2003 Jeep Wrangler (TJ) in Rubicon, SE, Sahara, Sport and X trims, all for the rear Dana 44.

The list does not include the 1997-2000 Wrangler TJ or the 2004-2006 Wrangler LJ. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Pinion depth is set with shims chosen by measurement during setup. The shims are not bolted in as a fixed size, so a professional setup is recommended.

What’s included

This part is a pinion bearing shim kit.

Specification

Shipping weight 2.00 lbs
Package dimensions 16.00 × 12.00 × 5.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)2001–2003Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 16512.07 shim kit fit a 2004 Jeep Wrangler LJ?

No. The kit fits the 2001-2003 Jeep Wrangler (TJ), so a 2004-2006 LJ is outside its fit. Confirm your vehicle's year, model and trim before ordering.

What does a pinion bearing shim kit do?

It sets the pinion bearing position and preload during the pinion setup. The shim thickness is chosen by measurement during assembly.

Is this kit for the front or the rear Dana 44?

It is for the rear Dana 44 differential. The kit is a pinion shim kit, so it is used at the pinion end, not at the wheel.

Should the pinion shims be reused after a rebuild?

Reuse depends on their condition and on whether the gear set is unchanged. Shims that are bent, cracked or corroded should be replaced. If a new ring and pinion are installed, measure the depth again rather than assuming the old stack will work.

How can I tell the pinion bearings need attention?

Look for play or roughness when the pinion turns, grinding during coasting, or gear oil leaking past the seal. Any of these signs means the bearings and preload should be inspected during the next service. Confirm the bearing and shim fit for your vehicle's year, model and trim before ordering.

Find it on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Shop on Amazon
