Crown Automotive Axle Drive Flange – J5362000

Crown Automotive

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1981–1983 Jeep CJ5, 1981–1986 CJ7 and 1981–1985 Scrambler
  • Axle drive flange, 27 spline, 5-bolt hub
  • Crown Automotive part number J5362000

Description

Overview

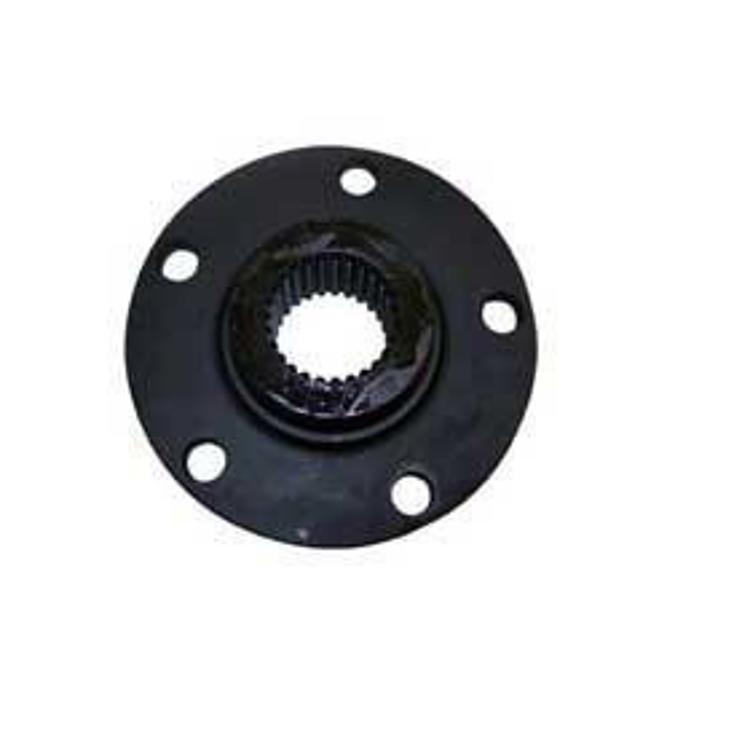

The Crown Automotive J5362000 is a 27 spline axle drive flange for 5-bolt hub assemblies. It fits the 1981–1983 Jeep CJ5, the 1981–1986 Jeep CJ7 and the 1981–1985 Jeep Scrambler.

An axle drive flange connects the axle shaft to the wheel hub, so the front wheel is driven when four-wheel drive is engaged. This is the 5-bolt version, which is the one to choose when the hub on a late CJ or Scrambler uses five bolts rather than six.

A hub with the wrong bolt count cannot be made to fit, so counting the bolts before ordering avoids an exchange.

The listed vehicles all date from 1981, the years when these Jeeps used the 5-bolt hub pattern. The flange suits owners restoring a front axle on a CJ5, CJ7 or Scrambler who need to replace a worn or damaged flange.

It is a direct-fit replacement with 27 splines, so the spline count on the axle shaft should read 27 before the flange is ordered.

The part is listed under hub gears and drive flanges, and the matching gasket is a separate item, so plan on checking the flange gasket at the same time.

Key features

  • Axle drive flange with 27 spline
  • 5-bolt hub assembly
  • Fits 1981 to 1983 Jeep CJ5
  • Fits 1981 to 1986 Jeep CJ7
  • Fits 1981 to 1985 Jeep Scrambler
  • Direct-fit replacement part

Checking the axle shaft and flange

The axle drive flange transfers torque from the axle shaft to the hub, so wear appears as slipping, clicking under load, or a visible crack around the bolt holes. Before fitting, check the axle shaft splines and the hub face for wear, damage or old debris. A flange forced onto worn splines will not seat flush, and it can work loose.

Clean the mating surfaces thoroughly, since grit trapped between the flange and hub changes how the bolts clamp. Set the flange square before tightening, and check that it sits flat against the hub. Recheck the bolts after the first few trail runs, and inspect the flange for cracks after heavy use.

  • Check the axle shaft splines for wear
  • Clean the flange and hub mating faces
  • Recheck bolt tightness after the first drives

Specifications

Brand Crown Automotive
Part number J5362000
UPC 848399064759
Part type Axle drive flange
Spline count 27 spline
Hub bolt pattern 5 bolt hub assembly
Fitment type Direct fit
Category Axle parts, hub gears and drive flanges

Vehicle fitment

The J5362000 axle drive flange fits these vehicles, with the trims shown:

  • 1981–1983 Jeep CJ5 (Base, Laredo, Limited, Renegade)
  • 1981–1986 Jeep CJ7 (Base, Laredo, Limited, Renegade)
  • 1981–1985 Jeep Scrambler (Base, Laredo, Renegade, SL, SR)

Only 1981 and newer CJ5, CJ7 and Scrambler models are listed, so earlier CJs with 6-bolt hubs are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Count the bolts on your hub before ordering. This flange is made for 5-bolt hub assemblies and does not suit a 6-bolt hub.

SKU: CROJ5362000 Category:

Specification

Shipping weight 2.76 lbs
Package dimensions 4.30 × 4.30 × 2.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51981–1983Base, Laredo, Limited, Renegade
Jeep CJ71981–1986Base, Laredo, Limited, Renegade
Jeep Scrambler1981–1985Base, Laredo, Renegade, SL, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

How many bolts does the Crown J5362000 flange use?

The J5362000 axle drive flange is for a 5-bolt hub assembly and has 27 splines. It is not intended for 6-bolt hubs.

Which Jeeps does the J5362000 flange fit?

It fits the 1981 to 1983 CJ5, the 1981 to 1986 CJ7 and the 1981 to 1985 Scrambler, in the trims shown in the Vehicle fitment section.

What does an axle drive flange do?

An axle drive flange joins the axle shaft to the hub. This Crown flange uses 27 splines and a 5-bolt hub pattern.

How can I tell an axle drive flange is worn?

Common signs include clicking or clunking when the vehicle moves off under power, a slipping or loose feel, and cracks or elongated bolt holes. Inspect the splines and the flange face, and replace the flange if either shows wear.
