Overview

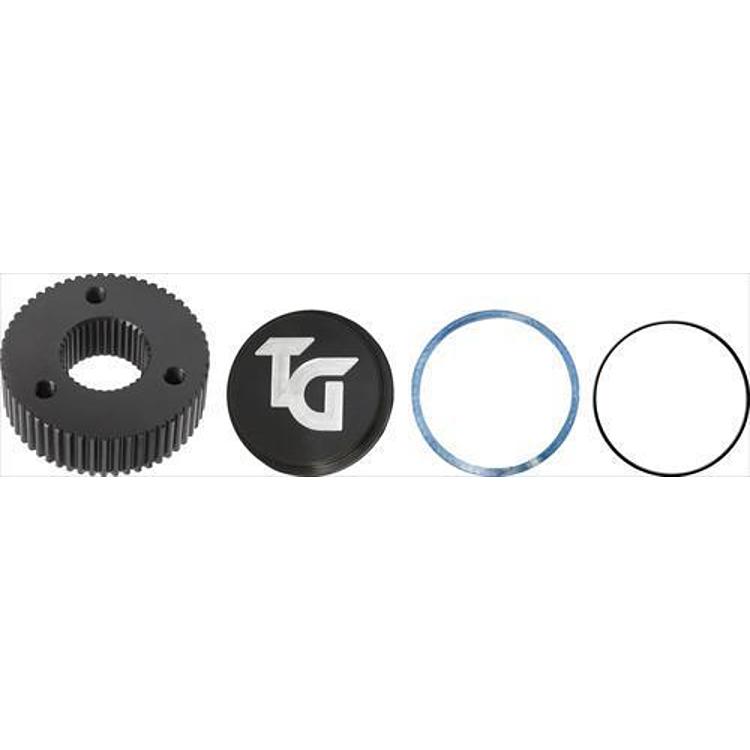

The Trail Gear Dana 60 Drive Flange Kit, part number 144007-KIT, is a set of heavy-duty drive flanges for Dana 60 solid front axles. Trail Gear says they are stronger than factory drive flanges or lock out hubs.
The flanges are made from hardened tool steel, 4340 chromoly, and have a larger center section with more support for the splines. Trail Gear says they hold up better to the torque of heavy aftermarket axles than factory parts do.
Key features
- Stronger than factory drive flanges and lock out hubs
- Larger center section with more spline support
- Hardened tool steel, 4340 chromoly
- Made for Dana 60 solid front axles
Flange wear and inspection
A drive flange carries the full turning load from the hub to the axle shaft, so its splines take a lot of stress. Wear shows up as rounded spline edges, a slipping feel under power or a clicking sound on turns. Look at both the flange and the hub mating surface when the axle is apart.
Heavy tires, lockers and larger gears all increase the load on the front axle, so a stronger flange is often considered as part of the same upgrade. Check the axle shaft spline count and the hub before buying, and replace the axle seal when the flange is removed. Clean the splines and apply grease as your service manual requires.
Keep the bolts and retaining hardware tight after the first few outings, and inspect them after rough trail use. Loose hardware can cause vibration and premature spline wear.
- Check spline edges for rounding
- Inspect the hub mating surface
- Re-check fasteners after early trail runs
Specifications
| Brand | Trail Gear |
|---|---|
| Part number | 144007-KIT |
| UPC | 70000621698 |
| Axle | Dana 60 solid front |
| Material | 4340 chromoly, hardened tool steel |
| Design | Larger center section with more spline support |
| Fitment label | Universal fit |
Vehicle fitment
No vehicle years, models or trims are listed. The kit is tied to the Dana 60 solid front axle, so the axle type decides fit.
Confirm your axle is a Dana 60 solid front before ordering.
What’s included
Check the package contents against your installation before starting, including hardware and gaskets.
