Coyote Enterprises Internal Beadlock 16 Inch Single – CEB16710-1

Coyote Enterprises

Shop Coyote Enterprises Wheels on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Coyote Enterprises 16-inch internal beadlock, part CEB16710-1
  • Tire-within-a-tire design with its own valve stem, inflated up to 50 PSI
  • Works with existing wheels and is universal fit by vehicle
  • Wheel size specific, UPC 741360607026, 1 year limited warranty

Description

Overview

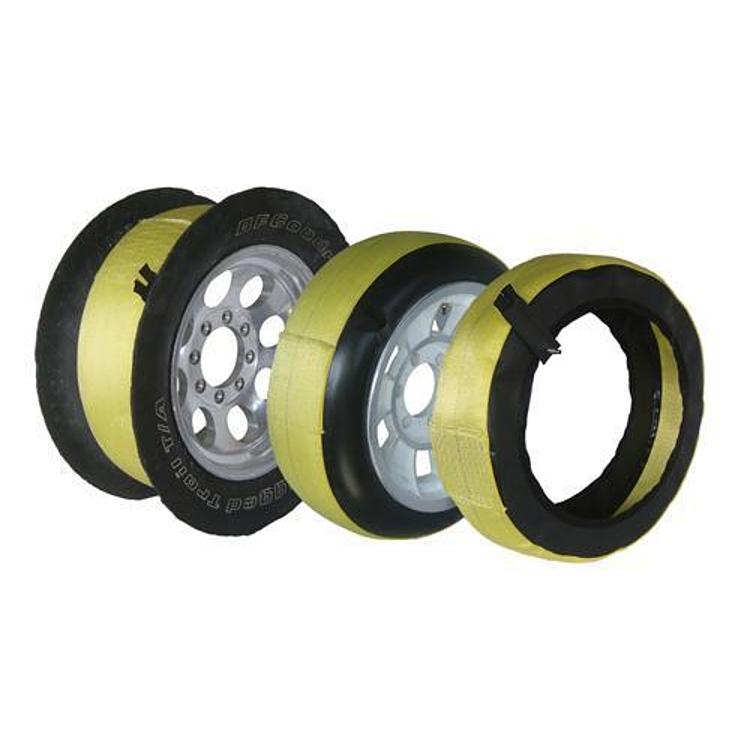

The Coyote Enterprises 16 inch internal beadlock, part number CEB16710-1, is a boltless internal beadlock that fits inside a 16-inch tire to lock both tire beads against the wheel. It works as a tire within a tire: the device divides the tire’s air chamber into two compartments, each with its own valve stem, one for the tire and one for the beadlock.

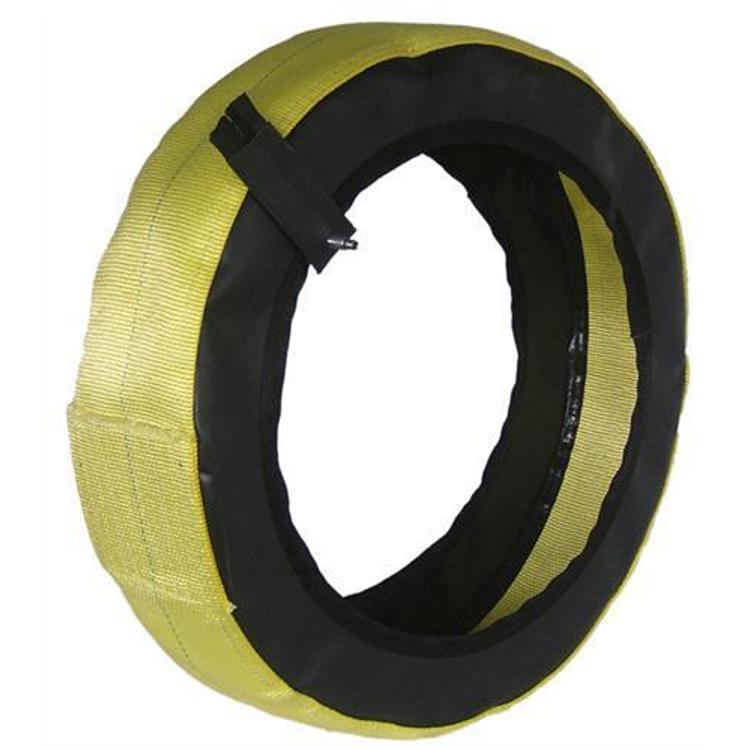

The beadlock has its own tread, two sidewalls and two beads. A heavy-duty inner tube inside the beadlock case expands and presses both tire beads against the wheel when inflated up to 50 PSI. The design works with existing wheels.

Key features

  • Internal boltless design that locks both tire beads to the wheel
  • Separate valve stems for the tire and the beadlock
  • Heavy-duty inner tube inflated up to 50 PSI
  • Works with existing wheels, so no mechanical beadlock wheel is needed
  • Keeps the inside tire bead from burping air
  • No balance issues and no DOT issues, so it is street legal
  • Wheel size specific, while tire size is not restricted
  • Coyote Enterprises provides a 1 year limited warranty on material and workmanship.

Low-pressure running tips

A tire-within-a-tire beadlock is a different setup from a mechanical beadlock wheel. The inner beadlock takes on the bead locking role, so the outer tire can run at the pressure suited to the terrain while the inner unit holds the tire on the rim. Because the two compartments have separate valves, each one must be checked and inflated on its own.

Pressure is the limit to watch. Inflate the beadlock only to the 50 PSI maximum, using an accurate gauge, and keep the tire at a pressure that suits the load. Before each trip, check both valve stems, look for rubbing at the sidewall, and confirm the beads are seated on both sides. Overheating from high speed on hot pavement can strain the inner tube, so ease off on long paved runs.

Specifications

Brand Coyote Enterprises
Part number CEB16710-1
UPC 741360607026
Wheel size 16 inch
Type Internal boltless beadlock, single
Inflation Inner tube up to 50 PSI
Valve stems Two (one for tire, one for beadlock)
Warranty 1 year limited, material and workmanship
Fitment Universal fit

Vehicle fitment

This beadlock is universal fit, so it is not tied to a vehicle. Sizing is by wheel: it is wheel size specific and made for 16-inch wheels. Check that your wheel is 16 inches before fitting.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

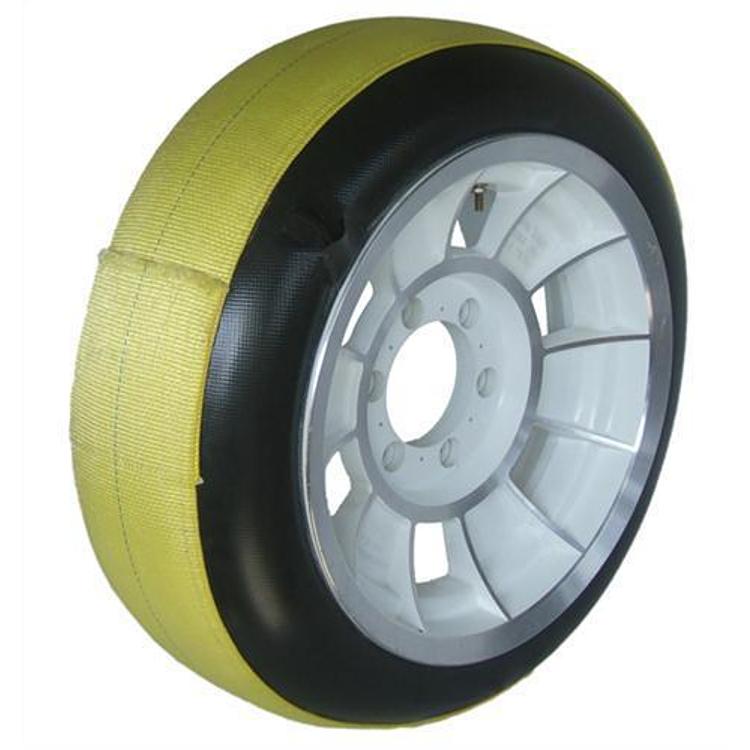

The beadlock sits inside the tire, so assemble the tire and beadlock together before mounting. Inflate the beadlock only to the 50 PSI maximum, using a gauge.

What’s included

Confirm whether a valve kit is needed for your assembly before starting.

Not included: A tire is required and is not part of this product.

SKU: STNCEB16710-1 Category:

Specification

Shipping weight 6.50 lbs
Package dimensions 12.00 × 12.00 × 9.00 in
brands

Questions & Answers

What is an internal beadlock?

An internal beadlock is a tire within a tire. It divides the tire's air chamber into two compartments with separate valve stems and uses an inflated inner tube to press both tire beads against the wheel. It is designed to work with existing wheels.

Is the Coyote 16-inch beadlock street legal?

Yes. The internal beadlock has no DOT issues, so it is street legal. It also has no balance issues, so it can be used on the street with a 16-inch wheel.

What part number and UPC is this?

The part number is CEB16710-1 and the UPC is 741360607026. It is a 16-inch single internal beadlock from Coyote Enterprises, with a 1 year limited warranty on material and workmanship.

How should an internal beadlock be inspected?

Check both valve stems for leaks, measure pressure with an accurate gauge, and confirm the beads are seated on both sides. Look for sidewall rubbing or heat marks after trail use, and recheck the inner tube's pressure before each trip.
