Overview

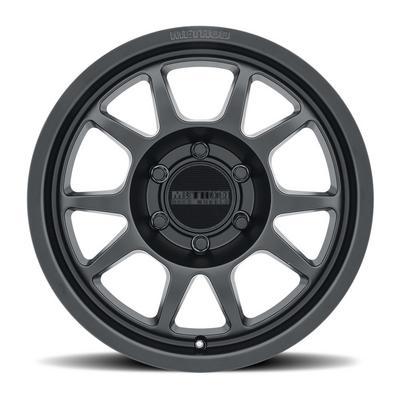

The Method Race Wheels 702 Series 17×8.5 in Matte Black, part number MRWMR70278560500, is an aluminum spoke wheel for off-road vehicles that need a 17-inch diameter, 8.5-inch-wide wheel on a 6 on 5.5 bolt pattern. The wheel is part of the MR702 Bead Grip series, and the brand says its wheels are built for the off-road racing community. Method Race Wheels describes its designs as engineered for the intended use, with development that included Finite Element Analysis and field testing.
All street wheels in this line come in Diamond Cut / Clear or Matte Black, and this version is Matte Black. The design focuses on less weight with more strength.
Key features
- Aluminum spoke construction
- 17-inch diameter and 8.5-inch width
- 6 on 5.5 bolt pattern with 106 center bore
- Offset 0 and backspacing 4.75
- Matte Black finish in the MR702 Bead Grip series
Bead seating and trail pressures
Bead seating matters more when tires run at lower pressures. A bead that is not fully seated can leak air or slip off the rim during hard cornering or rock crawling. Clean the bead seat and the tire bead before mounting, use a tire bead lubricant made for the job, and inflate in stages until the bead locks onto the rim with a clear seat. Lower to trail pressure only after the bead is set.
Clearance is the other half of the job. Offset and backspacing decide how the wheel sits against brake calipers, control arms and the inner fender, so mount a tire of the planned size and turn the wheel through full lock before driving. Retorque the lugs once the first trail miles are logged, and inspect the bead seat for scrapes after any run that involved hard rock contact.
- Clean the bead seat and tire bead before mounting
- Seat the bead at a higher pressure, then drop to trail pressure
- Check caliper and fender clearance at full lock
- Retorque lugs once the first trail miles are logged
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70278560500 |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | 0 |
| Backspacing | 4.75 |
| Style | Spoke |
| Finish | Matte Black |
| Series | MR702 Bead Grip |
| Construction | Aluminum |
Vehicle fitment
The wheel is labeled Universal Fit, but no year, make, model or chassis code is named, so no specific vehicle fitment is confirmed.
Because this is a wheel, check the 6 on 5.5 bolt pattern, 106 center bore, 0 offset and 4.75 backspacing against your vehicle’s specifications and your planned tire size.
Vehicles with other bolt patterns, bore sizes or wheel offsets are not covered by these specifications. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Offset and backspacing decide how the wheel sits against the brakes and suspension, so check clearance before mounting tires of the planned size.
What’s included
The specifications describe a single wheel.
Not included: Tires, lug nuts and center caps; plan for these separately.
