California Supertrucks Carrier Bearing Drop Bracket – CSS-C28-3

California Super Trucks

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fabricated rear carrier bearing spacer for 2011–2018 Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD
  • Used with two-piece rear drive shafts and 6-8 inch or 8-10 inch lift kits
  • Part number CSS-C28-3

Description

Overview

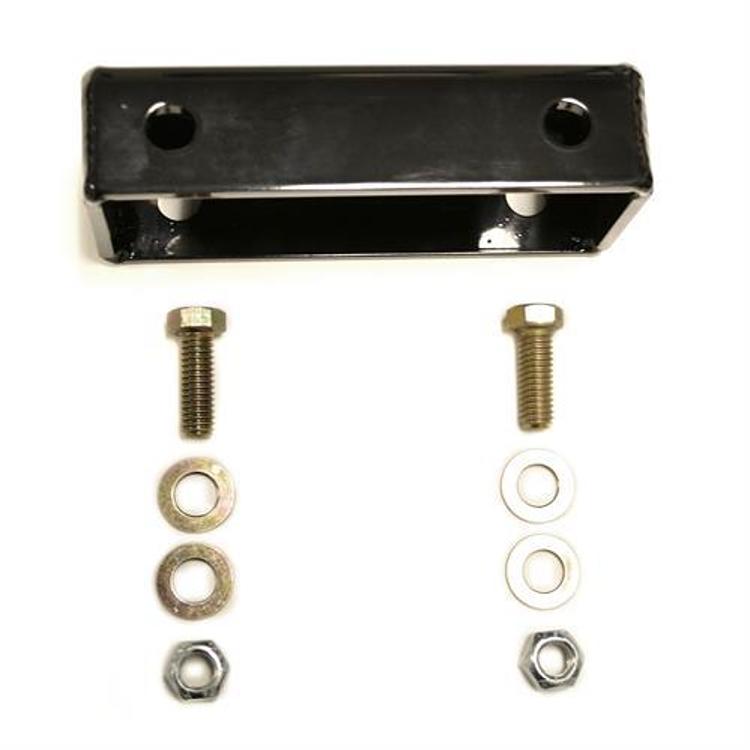

The California Super Trucks Carrier Bearing Drop Bracket CSS-C28-3 is a fabricated rear carrier bearing spacer for 2011–2018 Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD trucks. It is used when a two-piece rear drive shaft runs with 6-8 inch or 8-10 inch lift kits.

As a carrier bearing drop bracket, it lowers the carrier bearing position to suit a lifted rear driveline. It suits 2011–2015 2500 HD trucks most directly, a narrower group than the full model range.

Key features

  • Fabricated rear carrier bearing spacer
  • Recommended for two-piece rear drive shafts
  • Designed to work with California Super Trucks 6-8 inch and 8-10 inch lift kits.
  • Drop bracket format that relocates the carrier bearing

Driveline angle after a drop

A carrier bearing drop changes the angle between the transfer case output and the rear driveline. When the bearing moves down, the front U-joint and the rear pinion angle can drift out of balance, which can produce vibration at highway speed and wear on the joints. Measuring both angles after the lift is installed shows whether the setup is in range.

Two-piece shafts rely on the center bearing and its support staying square to the chassis, so check the mounts for cracks or looseness every few months. Replace worn U-joints when they show play, since a drop bracket can expose them to more angle than the stock layout. Re-torque the bracket bolts after the first drives.

  • Measure pinion and transfer case angles after lifting
  • Check center bearing mounts for cracking or play
  • Inspect U-joints for play when the angle changes

Specifications

Brand California Super Trucks
Part number CSS-C28-3
UPC 700006793738
Type Carrier bearing drop bracket (spacer)
Component Rear carrier bearing
Lift kit pairing 6-8 inch or 8-10 inch kits
Driveshaft Two-piece rear drive shaft recommended
Fitment type Direct fit

Vehicle fitment

It fits 2011–2018 Chevrolet Silverado 2500 HD and 3500 HD in High Country, LT, LTZ and WT trims, and 2011–2018 GMC Sierra 2500 HD and 3500 HD in Base, Denali, SLE, SLT and WT trims.

Light-duty Silverado and Sierra 1500 models are not in this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Relocating the carrier bearing changes driveline geometry, so check the driveline angles after installing the spacer with a lift kit.

What’s included

Check the package contents against your installation steps before starting, including any brackets or fasteners you need.

SKU: CSTCSS-C28-3 Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 17.00 × 6.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 2500 HD2011–2018High Country, LT, LTZ, WT
Chevrolet Silverado 3500 HD2011–2018High Country, LT, LTZ, WT
GMC Sierra 2500 HD2011–2018Base, Denali, SLE, SLT, WT
GMC Sierra 3500 HD2011–2018Base, Denali, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the California Super Trucks CSS-C28-3 fit a 2011–2018 Silverado 2500HD?

Yes. It fits 2011–2018 Chevrolet Silverado 2500 HD in High Country, LT, LTZ and WT trims. Fit is trim-specific, so check your year, model and trim before buying.

Is it intended for a two-piece rear drive shaft?

Yes. It is used with a two-piece rear drive shaft when running 6-8 inch or 8-10 inch lift kits. Check driveshaft angles after installation to confirm the setup.

Does it fit a GMC Sierra 3500HD?

Yes. It fits 2011–2018 GMC Sierra 3500 HD in Base, Denali, SLE, SLT and WT trims. The closest match is the 2011–2015 2500 HD trucks, so confirm your model and year before ordering.

Are installation hardware or brackets included?

Check the package contents against your installation steps before starting, including any brackets or hardware you may need. The part is a fabricated rear carrier bearing spacer, so plan for the remaining hardware.

Do I need a new driveshaft with a drop bracket?

Not always. Whether the existing shaft works depends on the lift height and the angles that result. Measure both driveline angles after installation, and if they fall outside the range your installer uses, consider a shaft with different lengths or joints.
