California Supertrucks 4 Inch Spindle Lift Kit – CSK-D23-2

California Super Trucks

Shop Dodge Ram 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch spindle lift for 2002-2008 Dodge 2WD trucks
  • 1-inch rear lift block and U-bolt kit
  • Designed for 33-inch tires on 8-inch wide wheels

Description

Overview

The California Super Trucks CSK-D23-2 is a 4-inch spindle lift kit for 2002-2008 Dodge 2WD trucks. The manufacturer fitment list covers the 2002-2008 Dodge Ram 1500 in the models shown on the list.

The front lift comes from CST lift spindle uprights, which allow the front end to be leveled without changing the stock ride. The rear is leveled with a 1-inch lift block and U-bolt kit.

Key features

  • 4-inch lift spindles at the front
  • 1-inch rear lift block and U-bolt kit
  • Designed to fit 33-inch tires with 8-inch wide wheels
  • Rear shocks offered by the manufacturer for a better ride

Rear leveling and driveline

Front spindle lifts and rear blocks often work together to level a truck, but they do not raise the rear the same way. A rear lift block moves the axle upward, which changes pinion angle and can affect the driveshaft. Because the lift is split between the front and rear, the leveled stance depends on how both ends are set.

U-bolts can settle after the first drives, so retightening them is part of a normal break-in. Check the shock mounts, brake lines and any rubbing at the wheel wells once the truck is back on the ground. Larger tires add load and can increase rubbing, so recheck clearance after any tire change.

  • Retighten U-bolts after the first drives
  • Check driveline angles after installation
  • Inspect brake lines for stretch

Specifications

Brand California Super Trucks
Part number CSK-D23-2
UPC 70000540415
Lift height 4 inches
Lift height range 3 to 4.99 inches
Front Lift spindle
Rear 1-inch lift block, U-bolt kit
Tire size 33-inch tires, 8-inch wide wheels
Shocks Not required, rear shocks offered

Vehicle fitment

The manufacturer fitment list covers the 2002-2008 Dodge Ram 1500, in the Laramie, SLT, SRT-10, ST, SXT and Sport models shown on the list.

Match your truck’s drive type, year, model and trim to the fitment above before ordering.

Installation notes

The rear uses a 1-inch lift block with a U-bolt kit, so check the driveline angles after installation. Shocks are not required, but the manufacturer offers rear shocks for a better ride.

What’s included

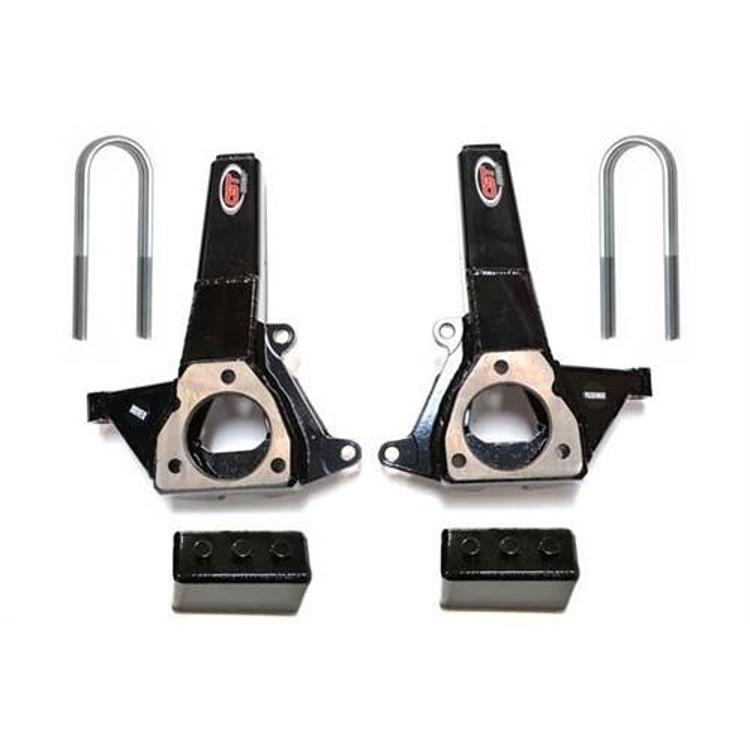

Front lift spindles, a 1-inch rear lift block, a U-bolt kit and a hardware kit.

SKU: CSTCSK-D23-2 Category:

Specification

Shipping weight 61.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Dodge Ram 15002002–2008Laramie, SLT, SRT-10, ST, SXT, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the CSK-D23-2 fit a 2005 Dodge 2WD?

Yes. The kit covers 2002 to 2008 Dodge 2WD trucks, and the Ram 1500 models in the fitment section include 2005. Confirm the drive type on your truck before ordering.

Are shocks required?

No. Shocks are not required with this kit. Rear shocks are available separately to improve ride quality, and they are optional for the 4-inch lift.

What tires does it take?

The kit is designed for 33-inch tires on 8-inch wide wheels. The lift is 4 inches from the front spindles, with a 1-inch rear lift block for leveling.

Do lift blocks affect driveline angles and U-bolt tension?

They can. A rear lift block moves the axle, which changes pinion angle, so check the driveline after installation. Retighten the U-bolts after the first few drives and recheck them periodically.
