Overview
The CSK-D23-7 is a 4-inch spindle lift kit for the Ram 1500 2WD. It is designed to add ground and tire clearance while keeping the stock ride, handling and load rating.

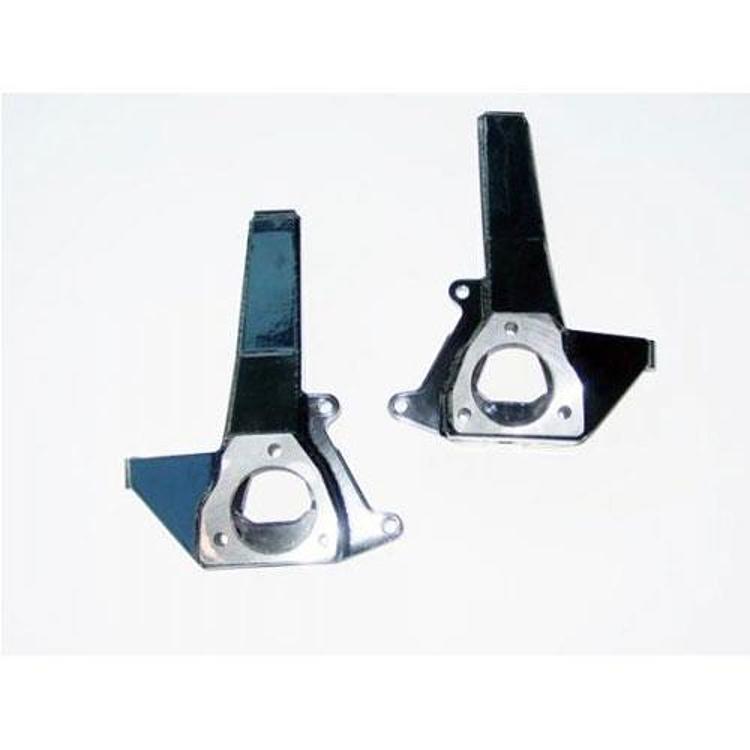

The kit uses fabricated front lift spindles to provide 4 inches of lift. The front keeps the factory coil rate, and the rear uses a 1-inch billet spacer, which the brand says keeps the factory load rating and rear ride quality. Stainless steel braided brake lines are included and are required with this kit.
Key features
- 4-inch lift using front lift spindles
- Stock coils retained at the front
- Stainless steel braided brake lines included
- 1-inch rear coil spacer
- Hardware kit included
Shock and brake line planning
A spindle lift raises the front without changing the spring rate, so shock length becomes the next decision. A taller setup can put the shocks at a different length than the factory units, and a shock that is too short limits travel. Check the shock length before the install, and plan the rear shock needs at the same time because a 1-inch spacer changes rear geometry.
Brake lines should be replaced as part of the spindle work, since the new geometry changes the path the lines travel. Braided lines add flex and resist wear, and the routing should be checked to keep clear of the wheels and suspension. Test the brake pedal feel before driving on the road, and recheck the lines after the first few trips.
- Check the shock length against the lift
- Route braided lines clear of tires and springs
- Bleed and test the brakes before road use
- Recheck lines and fittings after the first drives
Specifications
| Brand | California Super Trucks |
|---|---|
| Part number | CSK-D23-7 |
| UPC | 70000540419 |
| Lift height | 4 inches |
| Front | Lift spindles, stock coils |
| Rear | 1-inch coil spacer |
| Brake lines | Stainless steel |
| Shocks | Not included |
| Suspension type | Knuckle |
Vehicle fitment
It covers 2011 to 2012 Ram 1500 2WD trucks. Check the model year before ordering if your truck is a 2009 or 2010 model.
Confirm the truck is a 2WD model before ordering, along with its year, model and trim.
Installation notes
Longer rear shocks may be required with more than 1 inch of rear lift, so check the shock length before installation. The braided brake lines in the kit have to be used with the spindles.
What’s included
Front lift spindles, stainless steel braided brake lines, a 1-inch rear coil spacer and a hardware kit.
Not included: shocks.
