Overview

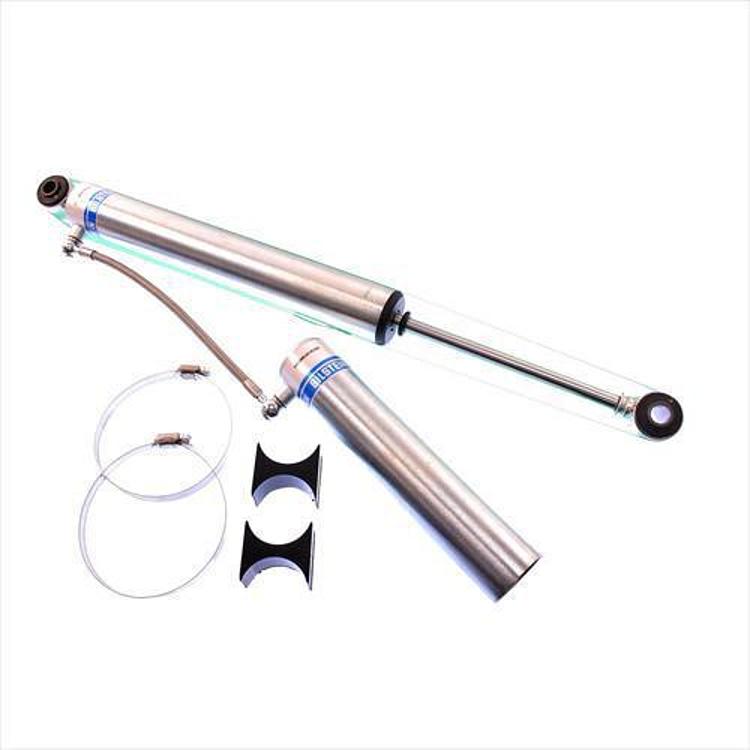

The Bilstein 5160 Series reservoir shock absorber, part 25-187601, is a rear mono tube shock with a remote reservoir for pickups and SUVs. It is designed to install in the stock shock mounting location with no cutting or welding, and its lift height rating is 0 to 2 in.
The remote reservoir adds shock oil capacity, which Bilstein says improves heat dissipation and damping sensitivity. A floating dividing piston sits inside the reservoir, allowing more wheel travel and shaft movement. Bilstein designs the reservoir mounting configuration for each vehicle application, so the mounting approach depends on the vehicle it is installed on.
Key features
- Mono tube body with a remote reservoir for greater shock oil capacity
- Digressive valving system that Bilstein says delivers full damping capability immediately
- Floating dividing piston located in the reservoir for increased wheel travel and shaft movement
- Smooth 46mm ID body in a non-coilover design
- Triple-C Technology zinc plated finish
- Reservoir mounting kit and detailed instructions included
Reservoir shock tradeoffs
A reservoir shock separates the oil storage from the shock body, which gives more damping stability when the shock is worked hard. The tradeoff is a bigger installed footprint, because the reservoir needs space and a protected mounting spot. Before buying, look at the frame and fender area and decide where the reservoir will sit so the hose is not pinched during suspension travel.
Standard shocks are simpler to install and leave less to clean and inspect. Reservoir units benefit from regular checks of the mount kit, the reservoir hose and the shaft seal, especially after washing the truck or driving through deep water. Choose the shock for the way the vehicle is used, and plan to replace the shock and any worn mount parts together.
- Check reservoir space before buying
- Route the hose clear of moving parts
- Inspect the shaft seal after water crossings
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-187601 |
| UPC | 651860637723 |
| Series | 5160 Series |
| Position | Rear |
| Collapsed length | 16.54 in. |
| Extended length | 28.09 in. |
| Travel length | 11.55 in. |
| Lower mount | Eye, 14.4mm |
| Upper mount | Eye, 14.4mm |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | Yes |
| Damping | Gas charged |
| Finish | Zinc plated |
| Lift height rating | 0 to 2 in. lift |
| Fitment | Direct fit |
| Mounting parts included | Reservoir mount kit |
| Boot included | No |
Vehicle fitment
No specific year, make, model or trim is set for this shock. It is a Direct Fit unit for the stock shock location on pickups and SUVs, and the reservoir mounting configuration is designed for each application. Confirm your vehicle’s year, model and trim before ordering.
This is a rear position shock and is not a front shock. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The shock bolts into the stock shock location, and the included reservoir mounting kit and detailed instructions cover the reservoir mount. Shock work involves spring and suspension loads, so have a qualified technician install it.
What’s included
Reservoir mounting kit and detailed instructions.
Not included: Boot. The shock comes without one.
