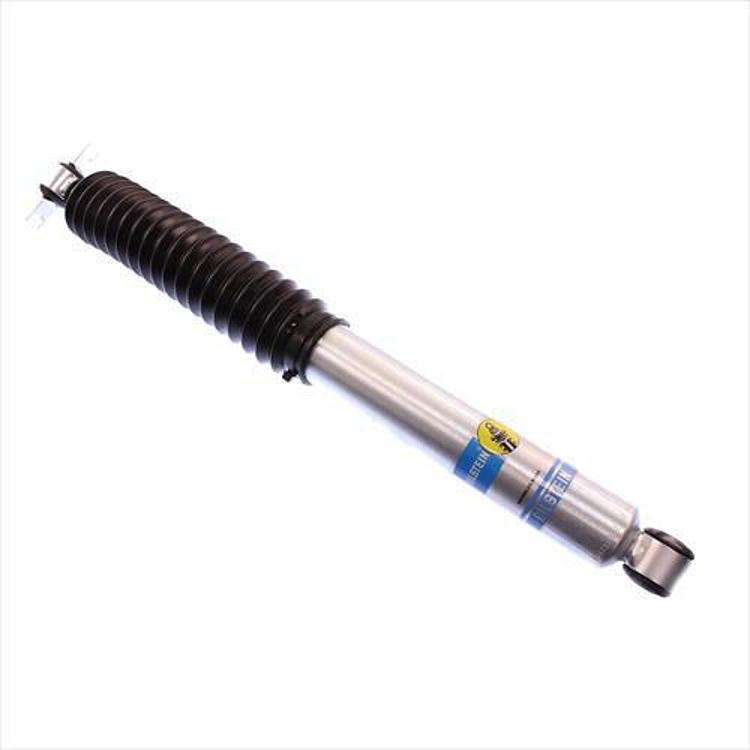

Bilstein 5100 Series Shock Absorber – 24-185264

Bilstein

$94.83In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 4:30 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 5100 Series shock absorber, part 24-185264
  • Fits 2004–2006 Jeep Wrangler (LJ) and 1997–2006 Jeep Wrangler (TJ)
  • Eye 12.7mm lower mount, bar pin upper mount, 14mm shaft
  • Zinc plated, 46mm ID smooth body, boot included

Description

Overview

The Bilstein 24-185264 is a 5100 Series shock absorber with a 46mm ID smooth body, monotube design, zinc plated finish and an eye-style lower mount. The manufacturer list places it on the 2004–2006 Jeep Wrangler (LJ) and 1997–2006 Jeep Wrangler (TJ).

The 5100 Series is built as a single-tube monotube for lifted trucks, Jeeps and prerunners. The single-tube gas pressure body works with self-adjusting deflecting disc valving, a high-flow piston and a larger working piston area for damping control.

The design suits large-diameter tire setups and lift kits that keep the stock O.E.M. mounting configuration. Check the mount types against your kit before fitting.

Key features

  • Eye 12.7mm lower mount with a bar pin upper mount
  • Self-adjusting deflecting disc valving
  • High-flow piston intended to reduce harshness
  • Independent rebound and compression tuning
  • Zinc plated finish with a boot included

Eye and bar pin mounts

Mount style is one of the first things to confirm when comparing shocks for a Wrangler. An eye lower mount takes a round bushing around a bolt, while a bar pin takes a cylindrical pin through a clevis. Those two styles do not interchange without adapters, so comparing mount types on the truck and the shock prevents a wasted trip. Suspension geometry on a Wrangler also changes with lift, which affects how far each shock moves.

Bushings on the eye end wear with age and can allow clunks or wobble at the axle. Replacing a shock with a worn bushing can leave the new unit working against play in the mount. Check the stem or pin for bends and clean the mount holes of rust before installing. Follow the vehicle’s service torque values for the mount bolts rather than estimating them.

  • Confirm the eye and bar pin sizes on your Wrangler
  • Inspect bushings for cracks and flattening
  • Use the vehicle’s torque values for the mount bolts

Specifications

Brand Bilstein
Part number 24-185264
UPC 651860453415
Shock series 5100 Series
Collapsed length 14.63 in.
Extended length 23.07 in.
Travel length 8.44 in.
Lower mount Eye 12.7mm
Upper mount Bar pin
Shaft diameter 14mm
Body design 46mm ID smooth body (non-coilover)
Internal design Monotube
Charge Gas charged
Reservoir No
Finish Zinc plated
Boot included Yes

Vehicle fitment

It fits the 2004–2006 Jeep Wrangler (LJ) in Unlimited and Unlimited Rubicon trims and the 1997–2006 Jeep Wrangler (TJ) in 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims. Wrangler JK models from 2007 onward are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.

Wrangler JK models from 2007 onward are not on the list, and years outside these ranges are not covered. Confirm your vehicle’s year, model and trim before ordering.

What’s included

The shock absorber and its boot are the items described.

Not included: No lift components or brackets are included. Match the mount types on your Wrangler to the eye lower and bar pin upper before installing.

SKU: BIL24-185264 Category:

Specification

Shipping weight 4.90 lbs
Package dimensions 26.80 × 3.60 × 3.60 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Bilstein 24-185264 fit a Jeep Wrangler?

Yes. It fits the 2004–2006 Jeep Wrangler (LJ) and the 1997–2006 Jeep Wrangler (TJ) in the trims listed above. Wrangler JK models from 2007 onward are not covered, so confirm your year, model and trim before ordering.

What are the lengths for part number 24-185264?

The collapsed length is 14.63 in., the extended length is 23.07 in. and the travel length is 8.44 in. The lower mount is an eye of 12.7mm and the upper mount is a bar pin, with a 14mm shaft diameter.

Does this shock include a boot?

Yes. It includes a boot. The shock is zinc plated with a 46mm ID smooth body, a monotube internal layout and no reservoir.

Can an eye mount and a bar pin mount be swapped?

Not directly. An eye end and a bar pin end use different hardware, so a swap requires a conversion or a different shock. Check the mount types on your truck and the shock before fitting anything.

How often should Wrangler shock bushings be checked?

Check them during regular service, especially after off-road trips or after a lift is installed. Cracked or flattened bushings should be replaced before fitting a new shock, so the new unit is not working against play.
