Bilstein 4600 Series Shock Absorber – 24-016186

Bilstein

$92.49In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 3:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 4600 Series rear gas-charged monotube shock, part number 24-016186
  • Monotube design with 2 in body diameter and yellow finish
  • Boots included; no remote reservoir
  • Fitment shown as Direct Fit; no vehicle years or models named

Description

Overview

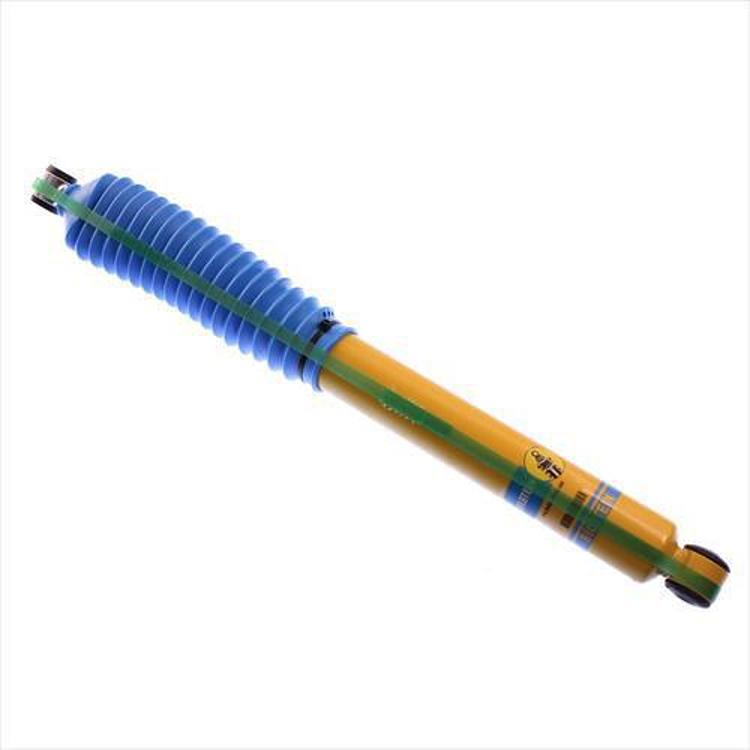

The Bilstein 4600 Series Shock Absorber, part number 24-016186, is a gas-charged monotube shock for the rear position, with a 2 in body diameter and boots included. It is a direct fit design. Confirm fit for your vehicle’s year, model and trim before ordering.

Monotube gas-charged shocks keep oil and gas pressure in one tube, separated by a dividing piston. As the oil heats up, the piston lets it expand, which helps prevent foaming and loss of viscosity. Damping stays closer to its intended level when temperatures rise. Heat moves through the tube wall to the outer surface, where it dissipates, supporting heat management and shock life.

Key features

  • Gas-charged monotube body with a 2 in body diameter
  • Dividing piston allows oil expansion as heat builds
  • Tube formed by a special extrusion method with tight peak-to-valley tolerance
  • Consistent wall thickness and seamless monotube construction for tube strength
  • Compression and rebound damping can be tuned independently
  • Digressive piston design with fewer parts than most twin-tube designs
  • Boots included

Rear damper service life

A rear shock works hardest when the axle rises and falls over ruts, and when the vehicle is loaded or towing. Over time the damping oil thins with heat and use, and the seals can wear, which reduces control. A shock that has lost its damping may feel fine on a smooth road but pitch and wander on washboard surfaces.

Gas-charged monotube shocks handle heat better than many older designs, but they still benefit from periodic inspection. After long descents, let the body cool before judging how the shock feels. Keep the rubber boot in good shape, since dirt on the rod can wear the seal. When you replace one rear shock, consider the other side at the same time so both respond the same way.

  • Rod surface free of pitting
  • Boot intact and not torn
  • Oil on the outside of the body
  • Matching rear shocks on both sides

Specifications

Brand Bilstein
Part number 24-016186
UPC 651860612720
Series 4600 Series
Position Rear
Type Monotube
Hydraulic / gas charged Gas Charged
Body diameter 2 in
Finish Yellow
Reservoir No
Boots included Yes
Lift / drop 0 in
Fitment type Direct Fit

Vehicle fitment

This rear shock is a direct fit design for the rear position, so match that position against your vehicle’s rear suspension before buying. Use part number 24-016186 when comparing it with your current shock.

Check fit against your rear suspension before ordering.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

Boots are included. Check the package contents against your installation before starting. This design has no remote reservoir.

SKU: BIL24-016186 Category:

Specification

Shipping weight 4.63 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Questions & Answers

What is Bilstein part number 24-016186?

Part number 24-016186 is a Bilstein 4600 Series shock absorber for the rear position. It is a gas-charged monotube design with a 2 in body diameter, a yellow finish and boots included. No vehicle years, makes or models are named for it, so check your application before ordering.

Will this rear shock fit my vehicle?

Confirm fit for your vehicle's year, model and trim before ordering. It is a direct fit design for the rear position, so check that position against your current shock.

Does it include a reservoir or boots?

No separate reservoir is part of this design. Boots are included. Check the package contents against your installation before starting, including mounting hardware.

Does temperature change how a monotube shock damps?

Heat thins damping oil, so a shock can lose control on long descents. A dividing piston lets the oil expand as it warms, which helps the damping stay steadier. Give the shock time to cool after heavy use before judging how it feels.

Can I mix a rear shock with a different brand?

Mixing brands on one axle is not ideal, because different damping can make the two sides react unevenly. Matching the pair is the simplest way to keep the rear end stable. Check that both units share the same position and body size.
