Overview

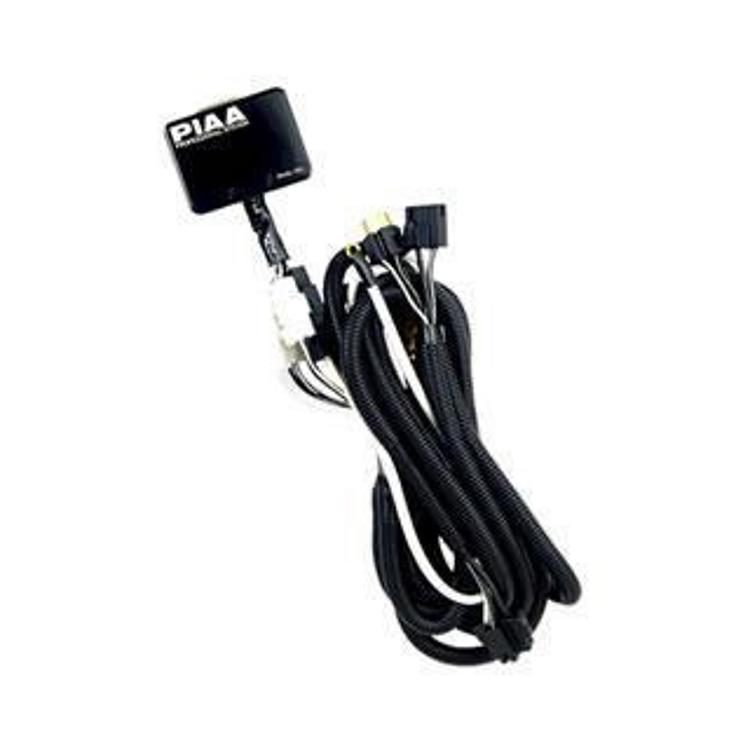

The PIAA 34210 is a wiring harness for dual PIAA LR18 light systems, rated up to 100W. It is supplied as a complete kit with a switch, relay, fuse and light connectors, and it is shown as universal fit rather than built for one vehicle.
Key features
- Complete kit with switch, relay, fuse and light connectors
- Supports loads up to 100W
- Designed for dual light systems (LR18 x 2)
- Universal fit, not tied to a make, model or year
Wiring a dual light kit
A dual light harness carries the current of two lights, so the relay and fuse do most of the protection work. Route the feed from the battery through the fuse and relay, and let the switch trigger the relay coil. Mount the switch where it can be reached without looking, and keep the cable runs short and clear of heat and moving parts.
Check the harness connections and the fuse holder periodically, especially after rough or wet trips. Replace a blown fuse with one of the same rating, and do not bypass the relay. Keep the light connectors sealed against water and dust, and retighten any mounts that have loosened from vibration.
- Route the feed through the fuse and relay
- Mount the switch within easy reach
- Keep light connectors sealed from water
Specifications
| Brand | PIAA Lighting |
|---|---|
| Part number | 34210 |
| UPC | 722935342108 |
| Maximum load | Up to 100W |
| Light systems | Dual (LR18 x 2) |
| Included | Switch, relay, fuse, light connectors |
Vehicle fitment
Universal fit. This harness is not written for one vehicle, so check that your lights and wiring suit the install before connecting.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Route the lights through the included relay and fuse rather than wiring them straight to the switch. Check local road-use rules before running auxiliary lights on the road.
What’s included
Switch, relay, fuse and light connectors.
Not included: the driving lights themselves.
