Overview

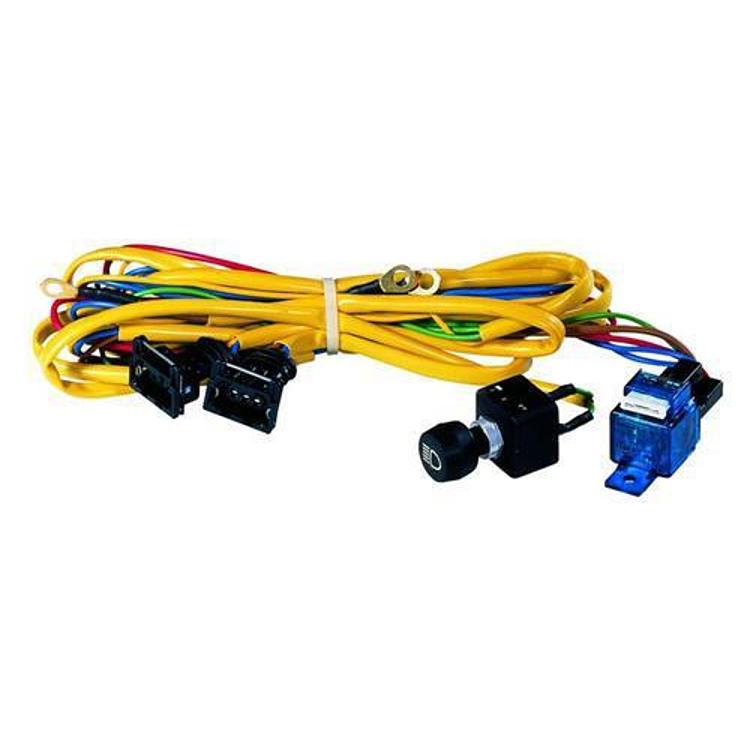

The Hella Wiring Harness for Rallye 4000 Lights, part number 148541001, is made for Hella Rallye 4000 driving lights. The lights do not come with a harness, so this harness is the separate part to add when wiring them.
Rallye 4000 lights are built for motor sports use and are popular with Baja racers. They use high-output 100 watt H1 bulbs, metal housings, glass lenses and large knurled adjustment knobs for quick aiming. The Free Form Reflector design sends light from the reflector rather than the lens.
Key features
- Made for Hella Rallye 4000 Lights
- Harness is a separate purchase; the lights do not include one
- Rallye 4000 lights use high-output 100 watt H1 bulbs
- Rallye 4000 lights have metal housings, glass lenses and knurled aiming knobs
- Free Form Reflector design, which sends light from the reflector rather than the lens
Choosing a driving light harness
Driving lights of this class draw a significant current, so the wiring has to be matched to the bulbs and the fuse has to be sized for the circuit. Use a fused feed from the battery, and place the relay close to the power source so the heavy current travels as little distance as possible through the vehicle’s standard wiring.
Aiming matters as much as wiring. Set the lights on level ground with the vehicle loaded as it normally runs, then tighten the knurled knobs once the beam is set. Heavy vibration can knock aim out of position, so recheck it after rough trail use. Keep the lenses clean, since dirt and road film cut the light output.
- Use a fused power feed
- Mount the relay close to the battery
- Set aim on level ground
Specifications
| Brand | Hella |
|---|---|
| Part number | 148541001 |
| UPC | 700003287701 |
| Compatible lights | Hella Rallye 4000 Lights |
| Bulb type (lights) | H1, 100 watt |
| Housing (lights) | Metal |
| Lens (lights) | Glass |
| Finish (lights) | Matte black powder coat |
Vehicle fitment
It is universal fit, so it is not tied to a specific make, model or year. Match it to the Hella Rallye 4000 Lights before wiring.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The Rallye 4000 lights do not come with a harness, so this harness is part of the wiring setup for the lights. Disconnect the battery before connecting it, and use a fused circuit for the lights. Hella recommends buying this harness separately for installation, so match it to the 100 watt H1 light set.
What’s included

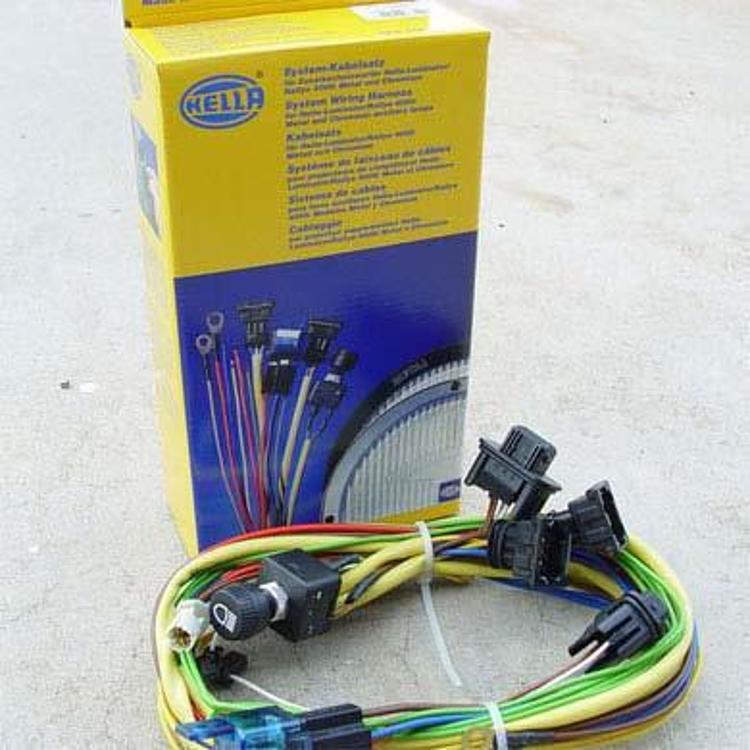

The package contains the wiring harness. Check the package contents against your installation before starting.
Not included: Hella Rallye 4000 Lights, which are purchased separately and do not come with a harness.
