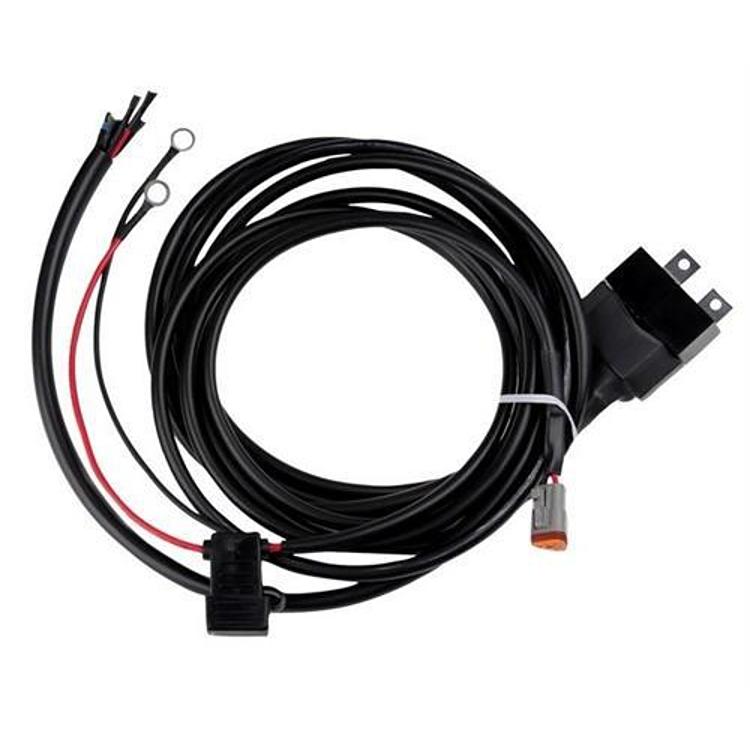

Rigid Industries 3-Wire Light Wire Harness – 40187

Rigid Industries

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rigid Industries 40187 3-wire light wire harness for a single E Series Amber/White LED light bar
  • Sized for a 20″-50″ light bar on a 12V electrical system
  • 13′ harness with battery terminals on one end and a Deutsch connector on the other
  • Includes an inline fuse holder, a 14V relay and a waterproof switch
  • A universal design, not tied to a specific vehicle

Description

Overview

The Rigid Industries 40187 is a 3-wire light wire harness that connects a single E Series Amber/White LED light bar sized 20″-50″ to a 12V electrical system. At 13′ long, it is a universal design and is not tied to a particular vehicle.

Battery terminals sit on one end and a Deutsch connector sits on the other, so the light bar plugs into one end while the power leads run to the battery. It suits owners who want the fuse, relay and switch supplied in the same harness as the power run.

Key features

  • Battery terminals on one end and a Deutsch connector on the other end
  • Inline fuse holder built into the run
  • 14V relay included
  • Waterproof switch included
  • Designed for a single 20″-50″ E Series Amber/White LED light bar
  • 13′ overall length on a 12V electrical system

Routing a light bar harness

A long light bar harness runs from the battery to the front of the vehicle, so routing decides how well it lasts. Follow existing wire paths where possible, and keep the harness away from the exhaust, steering components and moving suspension parts. Secure it every few inches with clips that hold the wire without pinching the insulation.

Keep slack at the bar end so the light can be removed for service without stressing the connector. Make sure the battery terminals are clean and tight, and use the inline fuse close to the battery as the first point of protection. Inspect the run after rough trails, since rock strikes and branches can scuff the outer jacket.

  • Keep the harness away from exhaust and steering parts
  • Clip the wire without pinching the insulation
  • Inspect the jacket after rough trails

Specifications

Brand Rigid Industries
Part number 40187
UPC 849774011580
Length 13′
Light bar compatibility Single 20″-50″ E Series Amber/White LED light bar
System voltage 12V
Relay 14V relay
Switch Waterproof
Connector Deutsch connector at the light end
Fuse Inline fuse holder
Fitment Universal Fit

Vehicle fitment

This harness is a universal design and is not tied to a specific vehicle. It is sized for a single 20″-50″ E Series Amber/White LED light bar on a 12V electrical system, so match the light bar and voltage to your setup.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The harness already includes the inline fuse holder and 14V relay, so no separate fuse or relay is needed. Check local rules for auxiliary driving lights before using them on public roads.

What’s included

The harness includes battery terminals, a Deutsch connector, an inline fuse holder, a 14V relay and a waterproof switch.

Not included: the E Series Amber/White LED light bar itself.

SKU: RIG40187 Category:

Specification

Shipping weight 1.20 lbs
Package dimensions 13.00 × 8.00 × 2.00 in
brands

Questions & Answers

Will the Rigid Industries 40187 fit my vehicle?

No specific vehicle applies, since the 40187 is a universal design. Confirm that your 12V electrical system and a 20"-50" E Series Amber/White LED light bar match before ordering.

What light bar does the 40187 connect to?

It connects a single 20"-50" E Series Amber/White LED light bar to a 12V electrical system. The Deutsch connector on the far end plugs into the light.

Does the harness include a fuse and relay?

Yes. It incorporates an inline fuse holder, a 14V relay and a waterproof switch, so the fuse and relay are already part of the run.

How long is the Rigid Industries 40187 harness?

It is 13' long, with battery terminals on one end and a Deutsch connector on the other end that connects to the light.

How should I protect the connections at the bar end?

Press the Deutsch connector fully together until it locks, then leave a drip loop in the run so water runs off before it reaches the plug. Inspect the seal regularly, since a worn seal lets moisture reach the pins.
