Baja Designs S8 50″ Roof Light Bar Kit with Toggle Switch Harness – 447758

Baja Designs

Shop Ford Bronco Offroad Light Packages on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Baja Designs S8 50 inch roof light bar kit, part number 447758
  • Watts 300, lumens 31750, IP69K waterproof
  • Toggle switch harness, vehicle specific brackets, no drilling
  • Fitment: 2021–2026 Ford Bronco

Description

Overview

The Baja Designs S8 50 inch Roof Light Bar Kit with Toggle Switch Harness, part number 447758, is an LED light bar kit for the 2021–2026 Ford Bronco. The 50 inch S8 light bar is rated at 300 watts with 31750 lumens, and it carries IP69K waterproof and IK10 impact ratings.

The kit includes the 50 inch S8 light bar, vehicle specific mounting brackets, hardware and a toggle switch wiring harness. Baja Designs says no cutting, trimming or drilling is required, and that the wiring is pre-sized for the vehicle. The light bar is built with a billet machined aluminum bezel and a hard coated polycarbonate lens.

The kit suits off-road and outdoor use and adds light for night driving. The amp draw is 20 and the LED life expectancy is 49,930 hours.

IP69K means the light is dust tight and resists close-range, high pressure, high temperature water spray. IK10 is a high level of impact resistance. Both ratings apply to this bar.

Key features

  • 50 inch S8 LED light bar
  • 300 watts and 31750 lumens
  • Toggle switch wiring harness with pre-sized wiring
  • Vehicle specific mounting brackets and hardware
  • IP69K waterproof, submersible to 9 ft
  • IK10 compliant and exceeds MIL-STD810G testing

Wiring and fused power

A roof light bar draws enough current that the power source should be protected. A fuse close to the battery or the power point guards the wiring if a short occurs, and a relay lets the switch carry only a small current while the light bar receives full power through the relay.

Follow the wiring layout in your kit and route the harness away from moving parts, exhaust heat and sharp edges. Keep the switch in a spot that is easy to reach while driving. Before wiring, check that the circuit has spare capacity for the load you plan to run alongside the light bar.

Roof lights see vibration and weather, so inspect the bezel seal, bracket bolts and connector housings after rough trail use. Retighten fasteners that have loosened and replace any seal that is cracked or flattened.

Specifications

Brand Baja Designs
Part number 447758
Light series S8
Size 50 inch
Watts 300
Lumens 31750
Amp draw 20
LED life expectancy 49,930 hours
Front lens Hard coated polycarbonate
Bezel Billet machined aluminum
Waterproof rating IP69K, submersible to 9 ft
Mechanical impact IK10 compliant
Mil-spec testing Exceeds MIL-STD810G
Overvoltage protection Built in
Sold as Kit

Vehicle fitment

The kit fits 2021–2026 Ford Bronco models. Model years before 2021 and the Bronco Sport fall outside this fitment. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 20 amp draw calls for a fused circuit with a relay, and the toggle switch harness should be wired as the kit lays out. Check local rules for roof-mounted lights before road use.

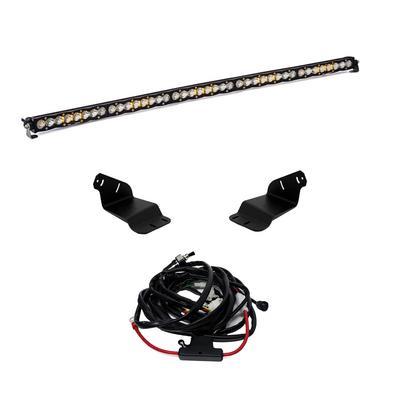

What’s included

One 50 inch S8 LED light bar, vehicle specific mounting brackets, hardware and a toggle switch wiring harness.

Fitment

VehicleYearsTrims
Ford Bronco2021–2026Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks, Wildtrak

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 447758 roof light bar fit a 2021 Ford Bronco?

Yes. The kit fits the 2021–2026 Ford Bronco, so a 2021 model is covered. Model years before 2021 and the Bronco Sport fall outside this fitment, so confirm your year and model before ordering.

How bright is the 50 inch S8 roof light bar?

The light bar is rated at 300 watts with 31750 lumens. The kit has an amp draw of 20 and an LED life expectancy of 49,930 hours.

Does the 447758 require drilling?

No. Baja Designs says no cutting, trimming or drilling is required, and the mounting uses the vehicle specific brackets included with the kit. The wiring is pre-sized for the vehicle.

Does a roof light bar need a relay?

Often yes, especially when the draw is high. A relay lets the switch carry only a small current while the light receives power through the relay. Follow the wiring layout in your kit and use a fused circuit for the load.

How should a roof light bar be cleaned?

Rinse the lens with water and mild soap, then dry it with a soft cloth. Avoid abrasive pads that can scratch the polycarbonate lens. Check the bezel seal and bracket bolts periodically, especially after rough trail use.
