Overview
The Baja Designs 8 XL Linkable Roof Light Bar Kit with Upfitter Harness, part number 447756UP, is a roof-mounted light bar kit built from eight XL Sport lights for the 2021–2026 Ford Bronco. The XL Linkable design is meant for owners who want a light package they can arrange for their own needs.
The kit includes eight XL Sport lights, links, vehicle specific mounting brackets, a toggle switch style wiring harness and rock guards. A pre-load support bracket helps keep the light bar stiff on rough terrain. It is a complete setup for the Bronco.
The light bar is rated at 208 watts with an amp draw of 16 and an LED life expectancy of 49,930 hours. It is IP69K waterproof, submersible to 9 ft, IK10 rated for mechanical impact, and tested to exceed MIL-STD810G.
Linkable means the bar can be joined to other XL lights of the same series, so the setup can be extended later.
Key features
- Linkable design with eight XL Sport lights
- Vehicle specific mounting brackets
- Toggle switch style wiring harness
- Rock guards and a pre-load support bracket
- IP69K waterproof, submersible to 9 ft
- Exceeds MIL-STD810G testing
Wiring a roof light bar
A roof light bar draws enough current that the wiring deserves as much attention as the mounting. Run the feed through a fuse close to the battery and a relay at the light, so the switch carries only a small control current. Route cable away from moving parts and sharp edges, and secure it with clips so the harness does not rub on the roof.
Light bar aim affects how useful the output is. Set the bar so the beam sits low enough to light the trail without reflecting off fog and dust. Recheck the aim after the first trail run, since vibration and mounting bolts can shift the angle over time. Clean the lens regularly, because mud and dust reduce output more than most drivers expect.
- Fuse the feed near the battery
- Use a relay at the light bar
- Secure cable runs with clips
- Recheck aim and bolts after rough trails
Specifications
| Brand | Baja Designs |
|---|---|
| Part number | 447756UP |
| Light series | XL Sport |
| Type | Light bar |
| Watts | 208 |
| Amp draw | 16 |
| LED life expectancy | 49,930 hours |
| Front lens | Hard coated polycarbonate |
| Bezel | Billet machined aluminum |
| Waterproof rating | IP69K, submersible to 9 ft |
| Mechanical impact | IK10 compliant |
| Mil-spec testing | Exceeds MIL-STD810G |
| Overvoltage protection | Built in |
| Sold as | Kit |
Vehicle fitment
It fits 2021–2026 Ford Bronco models. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the bar draws 16 amps, it should be fused and run through a relay. Check local road-use rules for roof-mounted lights before driving with the bar switched on.
What’s included

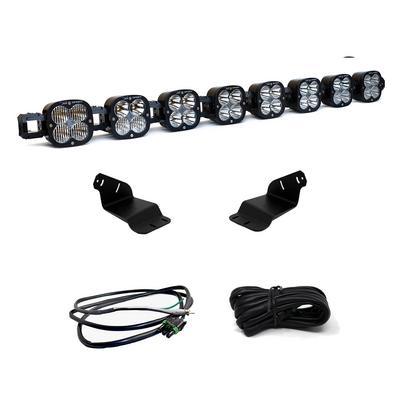

Eight XL Sport lights, links, vehicle specific mounting brackets, a toggle switch style wiring harness, rock guards and a pre-load support bracket.
