Overview

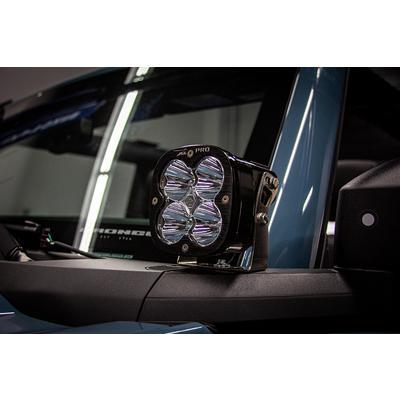

The Baja Designs XL80 A-Piller Light Kit with Upfitter Harness, part number 447751UP, is a pair of XL80 LED auxiliary lights for the 2021–2026 Ford Bronco. The lights come set in a driving combo beam, and the kit includes wide cornering and spot lenses so the pattern can be changed.
The light pods are rated at 80 watts and 9500 lumens, with an amp draw of 5.50. The kit includes an upfitter style harness and hardware, and installation needs no cutting or drilling. The lights have a billet machined aluminum bezel and a hard coated polycarbonate front lens.
Wide cornering lenses spread light to the sides of the road for corners and turns, while spot lenses throw a narrower, longer beam. The driving combo pattern sits between the two.
Key features
- Pair of XL80 LED auxiliary lights
- Driving combo beam
- Wide cornering and spot lenses included
- Upfitter style harness and hardware
- IP69K waterproof, submersible to 9 ft
- Exceeds MIL-STD810G testing
Wiring and fuse planning
Auxiliary light pods at this draw should run on their own fused circuit rather than sharing an accessory line. Size the fuse to the current the pair draws, and confirm that rating with the wire gauge and the relay you use. A fuse that is too large protects nothing, while one that is too small blows during normal use.
Mount the relay close to the battery or fuse block, and keep the switch side wiring short. Use weatherproof connectors where the harness leaves the cab or passes through the body. Grounding is often overlooked, so clean and tighten the ground point before testing the lights.
- Use a dedicated fused circuit
- Confirm wire gauge against the fuse rating
- Mount the relay near the power source
- Clean and tighten the ground point
Specifications
| Brand | Baja Designs |
|---|---|
| Part number | 447751UP |
| Light series | XL80 |
| Type | Light pod |
| Beam pattern | Driving combo |
| Watts | 80 |
| Lumens | 9500 |
| Amp draw | 5.50 |
| LED life expectancy | 49,930 hours |
| Bulb type | LED |
| Bezel | Billet machined aluminum |
| Front lens | Hard coated polycarbonate |
| Waterproof rating | IP69K, submersible to 9 ft |
| Mechanical impact | IK10 compliant |
| Mil-spec testing | Exceeds MIL-STD810G |
| Overvoltage protection | Built in |
| Sold as | Kit |
Vehicle fitment
The kit fits 2021–2026 Ford Bronco models. Make sure your vehicle’s year, model and trim fall within that range before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The upfitter style harness and hardware come with the kit, so the install needs nothing beyond the lights and a fused power feed. At 5.50 amps, the XL80 pair should run through a fused circuit and relay, and the fuse rating should be confirmed against that draw. Confirm local road-use rules for auxiliary lights before driving with them on the road.
What’s included

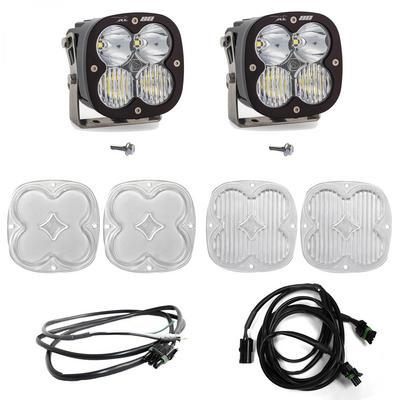

A pair of XL80 driving combo LED lights, wide cornering and spot lenses, an upfitter style harness and hardware.
