Overview

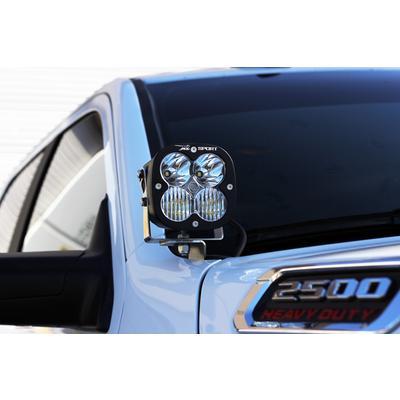

The Baja Designs XL Pro A-Pillar Light Kit, part number 448037, mounts a pair of XL Pro driving combo LED lights on the A-pillar of a 2019 Ram 2500 or 3500. The mount works without modifying the truck.
The XL Pro lights have a billet machined aluminum bezel, a hard coated polycarbonate front lens and a driving combo beam pattern. Each light carries an IP69K waterproof rating and IK10 compliance for mechanical impact, and the light series includes built-in overvoltage protection.
A driving combo beam pairs a focused spot pattern with a wider flood, so the lights throw usable light both far down the trail and close to the vehicle.
Key features
- Pair of XL Pro driving combo LED lights
- A-pillar mount, no vehicle modifications required
- Billet machined aluminum bezel
- Hard coated polycarbonate front lens
- IP69K waterproof, submersible to 9 ft
- IK10 compliant for mechanical impact
Wiring and switching the pods
Light pods on the A-pillar draw current continuously when switched on, so they should run from a fused source rather than a dash accessory circuit. A relay moves the load away from the switch, which keeps the switch cool and extends its life. Route the harness along existing pillar trim, leaving slack at the bracket so the pods can move without pulling on the wire.
A truck driven on rough roads sees constant vibration, so wiring should be secured at regular intervals and kept away from moving parts such as door hinges. Waterproof connectors should be seated fully and checked each time the lights are serviced. If a light flickers, check the ground and the connector before replacing the pod.
- Use a fused relay rather than wiring directly to the switch
- Leave slack at the pillar bracket for movement
- Check ground connections when lights flicker
- Keep the harness clear of door hinges and weatherstrip
Specifications
| Brand | Baja Designs |
|---|---|
| Part number | 448037 |
| Light series | XL Pro |
| Type | Light pod |
| Beam pattern | Driving combo |
| Bulb type | LED |
| LED life expectancy | 49,930 hours |
| Front lens | Hard coated polycarbonate |
| Bezel | Billet machined aluminum |
| Waterproof rating | IP69K, submersible to 9 ft |
| Mechanical impact | IK10 compliant |
| Overvoltage protection | Built in |
| Sold as | Kit |
Vehicle fitment
The kit is designed for the 2019 Ram 2500 and the 2019 Ram 3500 in the trim combinations covered. Confirm fit for your vehicle’s year, model and trim before ordering, including for the Ram 1500.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Light pods should be wired through a fused relay, and local road-use rules for A-pillar lights should be checked before the truck is driven on public roads with them on.

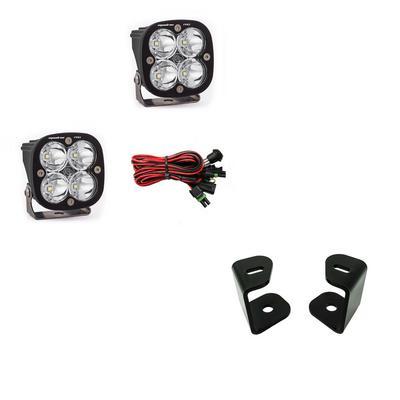

What’s included
A pair of XL Pro driving combo LED lights and the A-pillar mounting kit.
