Overview
The Baja Designs Dual S2 Sport Reverse Light Kit, part number 448038, adds two LED reverse lights to the rear of a truck. It fits 2019 Ram 2500 and 2019 Ram 3500 models, and it is suited to both dirt and daily driving.
The S2 Sport lights use a wide cornering beam and LED bulbs, with a hard coated polycarbonate front lens and a billet machined aluminum bezel. The surface mount is listed, and the kit is said to include everything needed for a simple installation.
Key features
- Dual reverse light design
- Wide cornering beam pattern
- LED bulbs with a rated life of 49,930 hours
- Surface mounting
- IK10 compliant for mechanical impact
- IP69K waterproof, submersible to 9 ft
- Built-in overvoltage protection
Reverse lights and wiring
Reverse lights switch on with the transmission, so their wiring should follow that circuit and not run on a constant feed. Most reverse light setups tap the back-up light circuit through a relay, which keeps the load off the switch. Route the wire along the frame and away from the exhaust, and check connections after the first few trips over rough ground.
Beam choice matters in use. A wide cornering pattern spreads light across the rear work area, which helps when backing up on uneven ground, dusty trails or into a campsite. Because the lenses face rearward, mud and road grime build up faster than on front lights, so a periodic wipe helps keep the output consistent.
- Tap the reverse circuit, not a constant feed
- Keep the wire clear of heat sources
- Check the surface mount bolts after rough trips
- Wipe the lens after muddy use
Specifications
| Brand | Baja Designs |
|---|---|
| Part number | 448038 |
| Light series | S2 Sport |
| Type | Reverse light |
| Mounting location | Surface |
| Bulb type | LED |
| Beam pattern | Wide cornering |
| LED life expectancy | 49,930 hours |
| Front lens | Hard coated polycarbonate |
| Bezel | Billet machined aluminum |
| Waterproof rating | IP69K, submersible to 9 ft |
| Mechanical impact | IK10 compliant |
| Overvoltage protection | Built in |
| Sold as | Kit |
Vehicle fitment
It fits the 2019 Ram 2500 and 2019 Ram 3500 in specific trim combinations. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Reverse lights should be wired so they only come on with the transmission in reverse, and the circuit should be fused. Check local rules on rear white lights before using them on public roads.

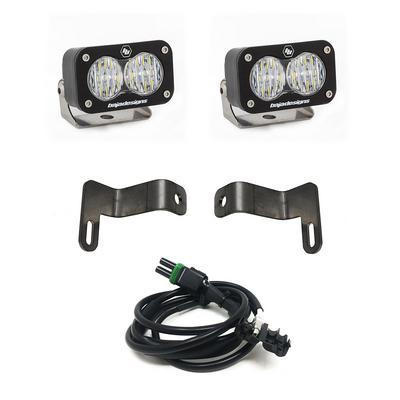

What’s included
Two LED reverse lights with the surface mount hardware, and the wiring needed for installation.
