Baja Designs 20″ OnX6+ Bumper Light Kit – 448050

Baja Designs

$856.76In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 5:00 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Baja Designs 20 inch OnX6+ bumper light kit, part number 448050
  • 216 watts, 24,920 lumens, IP69K waterproof
  • Billet machined aluminum bezel and hard coated polycarbonate lens
  • Fitment: 2021–2026 Ram 1500 TRX

Description

Overview

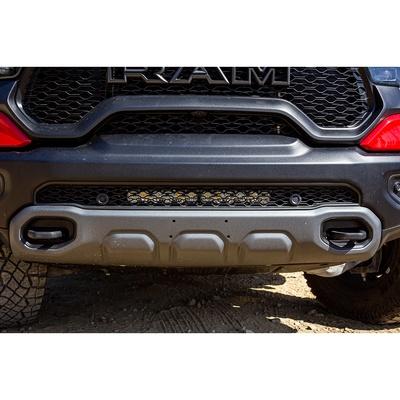

The Baja Designs 20 inch OnX6+ Bumper Light Kit, part number 448050, is a bumper-mounted LED light bar for the 2021–2026 Ram 1500 TRX. It is rated at 216 watts and 24,920 lumens, and it keeps the truck’s factory look while adding light.

The kit uses the OnX6 light series with a billet machined aluminum bezel and a hard coated polycarbonate front lens. It comes with every component needed for mounting, so no extra mounting parts are required.

Baja Designs also rates the kit as IK10 compliant for mechanical impact and IP69K waterproof, submersible to 9 ft. It includes built-in overvoltage protection, and the amp draw is 16.6 with LED life listed at 49,930 hours.

Key features

  • 20 inch OnX6+ bumper light bar
  • 24,920 lumens and 216 watts
  • IP69K waterproof, submersible to 9 ft
  • IK10 compliant for mechanical impact
  • Built-in overvoltage protection
  • Billet machined aluminum bezel

Wiring and power draw

Light bars with high amp draw need a fused circuit and a relay so the switch carries only a small current. Fuse size should match the kit’s draw and the wire gauge. Routing matters too: keep the harness away from hot exhaust parts and moving suspension links, and secure it with clips.

Bumper lights are exposed to road debris and washing, so the bezel and seals should be checked after rough use. Sealed connectors help keep water out of the harness. A light bar should be aimed after mounting, since bumper height and suspension changes move the beam.

  • Route wiring away from heat and moving parts
  • Use sealed connectors at the bumper
  • Aim the bar after mounting
  • Check seals after rough use

Specifications

Brand Baja Designs
Part number 448050
Mounting location Bumper
Light series OnX6
Size 20 inch
Watts 216
Lumens 24,920
Amp draw 16.6
LED life expectancy 49,930 hours
Front lens Hard coated polycarbonate
Bezel Billet machined aluminum
Waterproof rating IP69K, submersible to 9 ft
Mechanical impact IK10 compliant
Overvoltage protection Built in
Sold as Kit

Vehicle fitment

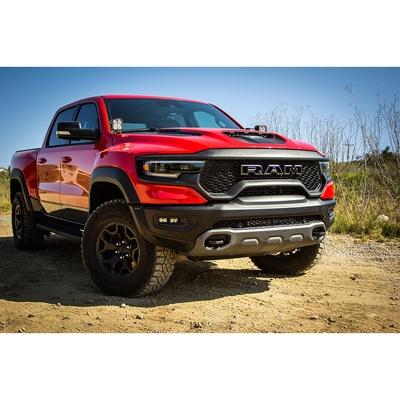

The kit fits 2021–2026 Ram 1500 TRX trucks, including the TRX Launch Edition. Other Ram 1500 trims and model years, along with Ram 2500 and 3500, are not covered. Check that your vehicle’s year, model and trim match before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 16.6 amp draw should run through a fused relay rather than straight from the switch, with the fuse sized to the kit. Check your local rules on auxiliary lights before using the bar on public roads.

What’s included

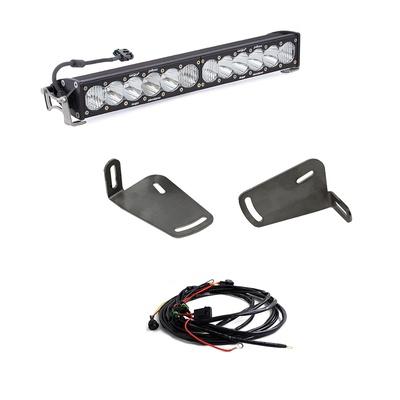

One 20 inch OnX6+ bumper light kit, with the components needed for installation.

Fitment

VehicleYearsTrims
Ram 15002021–2026TRX, TRX Launch Edition

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 448050 bumper kit fit a Ram 1500 TRX?

Yes. It fits 2021–2026 Ram 1500 TRX trucks, including the TRX Launch Edition. Other Ram 1500 trims and model years are not covered.

How bright is the Baja Designs 448050?

The kit is rated at 24,920 lumens and 216 watts. It draws 16.6 amps and has an LED life expectancy of 49,930 hours.

Is the 448050 waterproof?

Yes. It is IP69K rated, which means it is waterproof and submersible to 9 ft. It is also IK10 rated for mechanical impact.

Can a bumper light bar be run from a switch without a relay?

A relay is the safer choice for a light bar this size. It keeps the switch from carrying the full current and reduces the risk of overheating. Use a fuse sized to the kit and the wire used.
