Overview

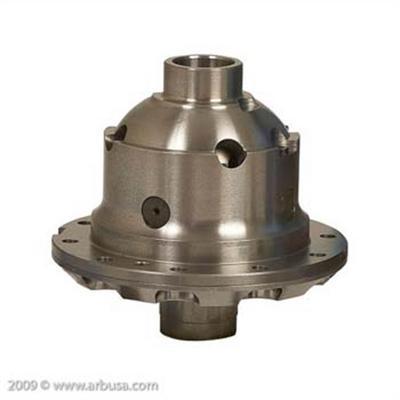

The ARB Land Rover Banjo Air Locking Differential, part number RD128, is a pneumatic selectable locker for a Land Rover Banjo axle with 24 splines. It fits either the front or the rear axle position and uses air to lock both axles together.
With the air lock engaged, the differential becomes a full spool and supplies power to both wheels. When released, the axle operates as a conventional open differential. The lock helps the vehicle keep moving through rough terrain. It needs an ARB onboard air compressor, which is not included.
Key features
- Pneumatic selectable locking differential
- Converts an open differential to a full spool when engaged
- Supplies 100 percent of the power to both wheels when locked
- 24 spline axle
- Front or rear axle location
Air lockers on older axles
A Land Rover Banjo axle is an older design, so an air locker upgrade is usually chosen for terrain rather than road use. The lock sends full power to both wheels when engaged, which helps on climbs and uneven ground. Because the locker is air-operated, the compressor, lines and switch should be planned as one system.
Older axles can show wear in bearings, seals and gears, so inspect those parts before fitting a locker. Keep the air compressor away from water and mud, and check air lines for chafing where they pass near the axle. Regular checks of the differential fluid help the locker work smoothly.
- Inspect axle bearings and seals before fitting
- Route air lines away from the axle’s moving parts
- Check the differential fluid level regularly
Specifications
| Brand | ARB 4×4 Accessories |
|---|---|
| Part number | ARBRD128 |
| Axle location | Front or rear |
| Axle type | Land Rover Banjo |
| Axle spline | 24 splines |
| Differential type | Selectable locker |
| Air supply | ARB onboard air compressor, not included |
Vehicle fitment
It fits a Land Rover Banjo axle with 24 splines. Confirm the axle type and spline count before ordering.
Match the Banjo axle type and the 24 spline count. Verify the Banjo axle’s year, model and trim before buying.
Installation notes
The locker operates on air from an ARB onboard air compressor, which must be fitted to the vehicle. Plan the compressor wiring and switch location before starting the install.
What’s included
Only the RD128 locker is listed; the air compressor is not included.
