ARB 2 Inch Lift Kit (Heavy-load) – OMETJHKS

ARB 4x4 Accessories

Shop ARB 4X4 Accessories Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • ARB 2-inch heavy-load lift kit, part number OMETJHKS
  • Old Man Emu shocks and coil springs front and rear
  • Includes track bar bracket, bump stops and steering stabilizer
  • Max tire size 31×10

Description

Overview

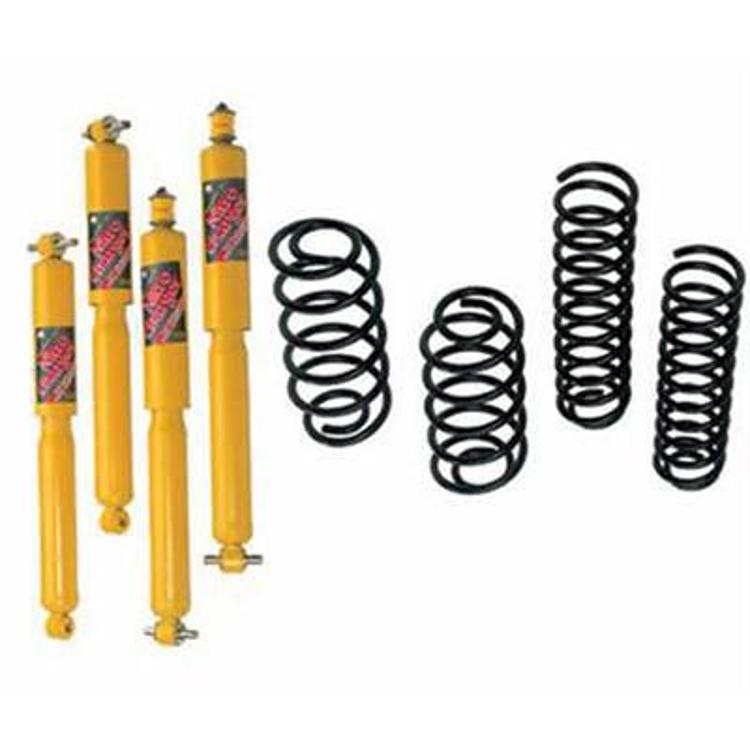

The ARB 2 Inch Lift Kit (Heavy-load), part number OMETJHKS, is an Old Man Emu suspension kit with front and rear coil springs and Old Man Emu shocks. It is designed for vehicles that carry heavy loads or travel long distances.

Old Man Emu uses different shock rates for different vehicle weights. The kit includes a 2 year/24,000 mile warranty.

Key features

  • Heavy-load design for towing and carrying weight
  • Old Man Emu shocks included
  • Coil springs front and rear
  • Track bar bracket included
  • Bump stops included
  • Steering stabilizer included

Steering geometry after a lift

A 2 inch lift moves the axles and changes the angles of the steering arms, so the track bar and steering stabilizer see different loads. The track bar bracket keeps the axle centered under the body, and the steering stabilizer damps quick steering inputs, especially on rough ground. Both parts work with the springs, so they should be treated as one system.

Check the track bar bushings, stabilizer ends and drag link for play after installation, and confirm the bump stops sit clear at full compression. Replacing a worn tie rod end at the same time avoids a steering feel that does not match the new height. Heavy loads make these parts work harder, so inspect them more often on towing trips. Recheck the bracket bolts after the first few drives and have the alignment set at the new height.

Specifications

Brand ARB 4×4 Accessories
Part number OMETJHKS
UPC 700006370561
Lift height 2 inches
Suspension type Coil spring kit
Rear lift method Coil springs
Shocks Included
Max tire size 31×10
Warranty 2 year/24,000 mile

Vehicle fitment

The heavy-load design suits vehicles carrying added weight, such as towing or long-distance loads. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering, since the track bar bracket and steering stabilizer have to match the chassis.

Installation notes

The track bar bracket and steering stabilizer are included, so the steering geometry has to be checked after installation. Alignment and driveline angles should be re-set after any suspension lift.

What’s included

Front and rear coils, Old Man Emu shocks, track bar bracket, bump stops and steering stabilizer.

SKU: ARBOMETJHKS Category:

Specification

Shipping weight 90.00 lbs
Package dimensions 23.00 × 21.00 × 17.00 in
brands

Questions & Answers

Does the OMETJHKS kit include a steering stabilizer?

Yes. A steering stabilizer is included with the front and rear coils, the shocks, the track bar bracket and the bump stops.

What tire size works with the OMETJHKS kit?

The maximum tire size is 31x10. Check tire diameter and width against your vehicle's wheel well clearance before ordering, and confirm the fit for your year, model and trim.

Are the shocks included with OMETJHKS?

Yes. Old Man Emu shocks are included, and they use different shock rates to suit added weight. They come with the coil springs, track bar bracket, bump stops and steering stabilizer.

How often should the steering stabilizer be checked on a heavy load lift?

Check it on a regular schedule and after rough trail use. Look for leaks, loose mounts and worn bushings, and replace any part that has play. Heavier loads and longer trips put more repeated force through the stabilizer, so a check after long trips is sensible.
