Overview

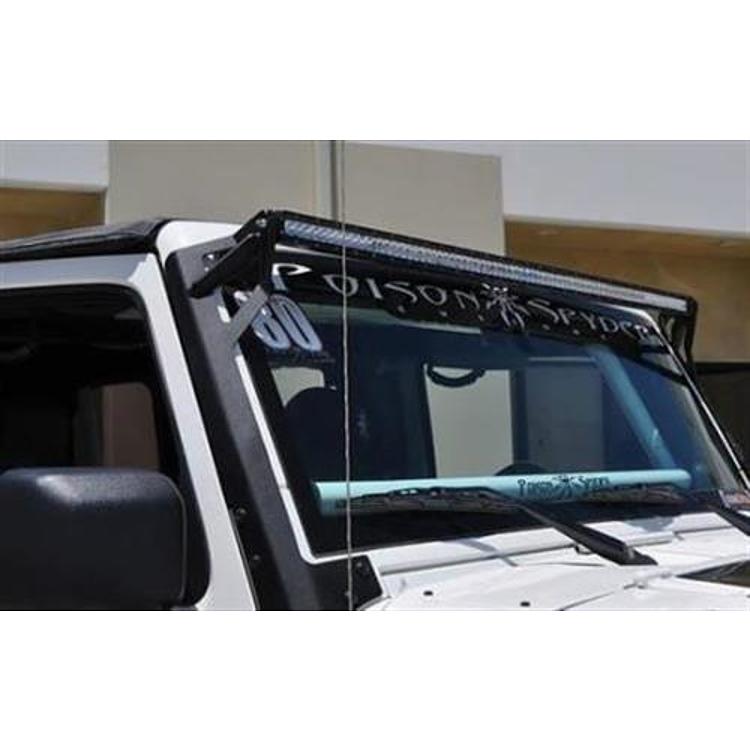

This 50 inch LED light bar bracket (black, LIGJK07161) is a bare steel windshield mount for a 50 inch light bar on a Jeep JK Wrangler. It is made to mount a 50 inch E-Series or SR-Series LED light bar from Rigid Industries over the windshield of a 2007-2018 Jeep Wrangler JK, in two-door and four-door models.

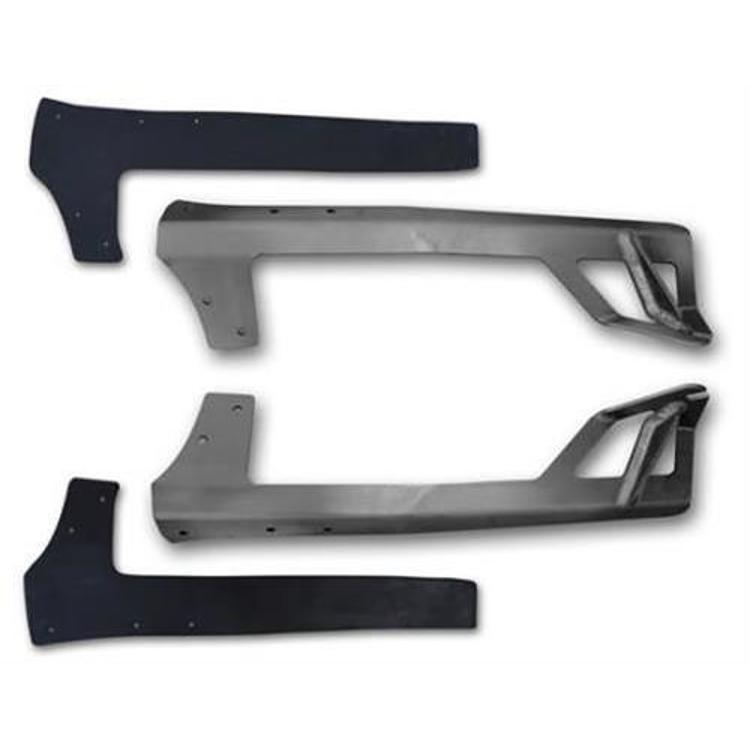

The mount is CNC laser cut from 3/16 inch thick plate, then brake-formed and finish welded. The contoured, gusseted design is built to hold a heavy 50 inch bar securely on the highway and in rough terrain. The bracket is shipped as bare steel, so it can be painted or powder coated in any color.
Key features
- Bare steel construction cut from 3/16 inch plate
- Contoured, gusseted design for a heavy 50 inch light bar
- Attaches to the existing lower windshield bracket bolts
- Rubber liners protect the Jeep’s paint under the mounts
- Shipped bare for paint or powder coat
- Fits two-door and four-door JK models
Before you mount
A 50 inch bar is heavy and sits high above the windshield, so the mount carries a lot of load in wind and on rough trails. Before fitting, check that the windshield bracket bolts and their threads are in good shape, since the mount depends on them. Look for rust, stripped threads or bent steel after each season of use.
Painting or powder coating the bare steel before installation helps slow rust on exposed edges. Confirm the wiring route for the light bar and keep it clear of the wipers, hinges and any moving parts under the hood.
- Check bolt tightness after the first few trail runs
- Inspect the rubber liners for wear that could let steel touch paint
- Re-check cable routing after any windshield work
Specifications
| Brand | Genuine Packages |
|---|---|
| Part number | LIGJK07161 |
| UPC | 700007631341 |
| Mount type | A-pillar, bare steel bracket kit |
| Material | Steel, 3/16 inch thick plate |
| Finish | Bare steel; paint or powder coat by owner |

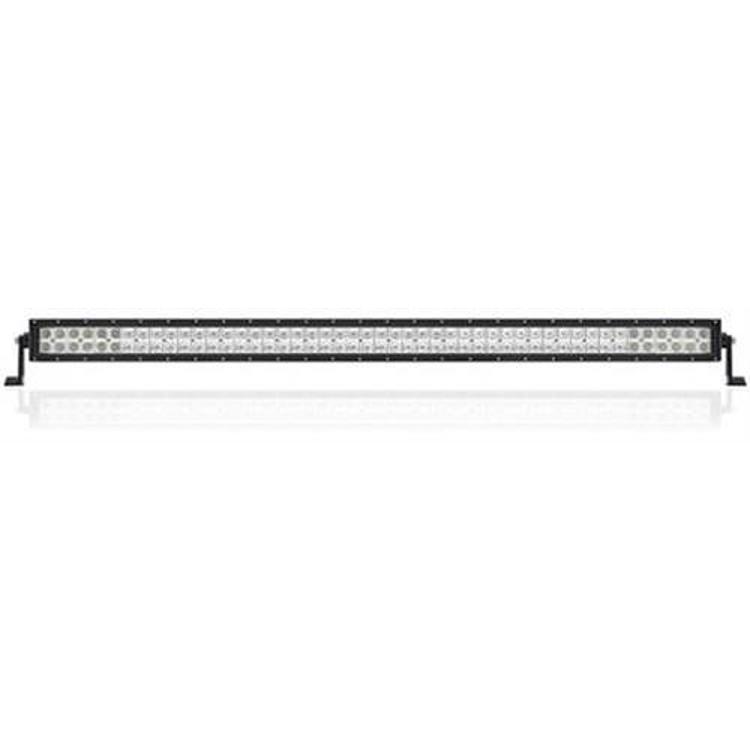

| Light bar | 50 inch, Driving/Fog/Flood combination beam |
| Listed light bar rating | 288W LED power, 25920 raw lumens |
| Protection | Rubber liners under the mounts |
| Sold as | Bracket kit |
Vehicle fitment
The Genuine Packages bracket is made for the Jeep JK Wrangler, 2007-2018, with two-door and four-door models both covered. It is a windshield bracket for a 50 inch light bar, so the lower windshield bracket bolts must be in place for it to fit. Confirm your vehicle’s year, model and trim before ordering.
The fitment listed here is for the JK generation.
Installation notes
Installation uses the existing lower windshield bracket bolts. Fit the rubber liners to the mounts before setting the bar. Because the mounts ship bare, paint or powder coat them before installing if a finish is wanted.
What’s included
The bracket kit for mounting a 50 inch light bar over the windshield. The light bar itself is not included, and the product is supplied as bare steel.
