50 Inch LED Light Bar with Brackets (Black) – LIGTJ9706

Genuine Packages

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bare steel bracket for a 50 inch LED light bar over the windshield
  • Attaches to the existing lower windshield bracket bolts
  • Rubber liners protect the paint
  • Shipped bare for paint or powder coat
  • Light bar rated at 288W LED power and 25920 raw lumens

Description

Overview

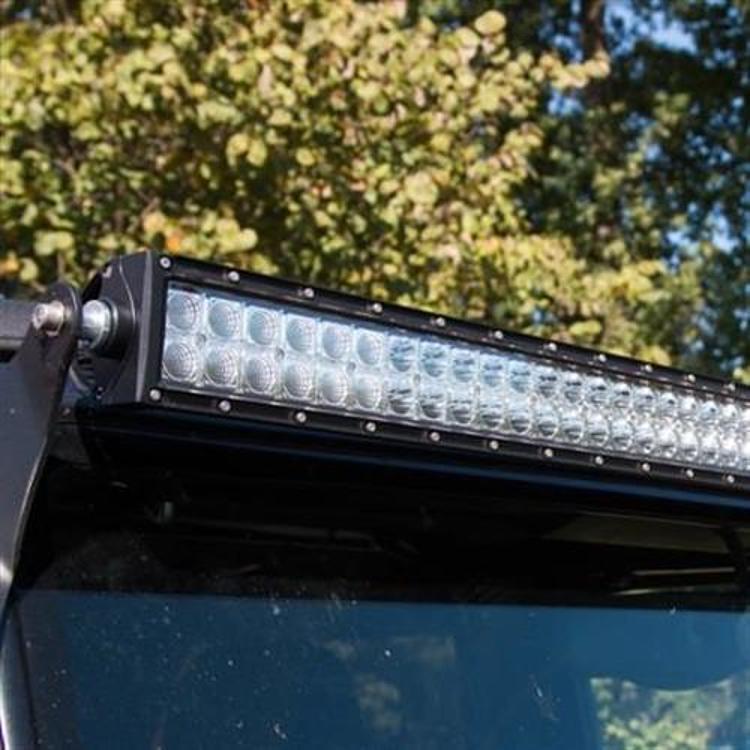

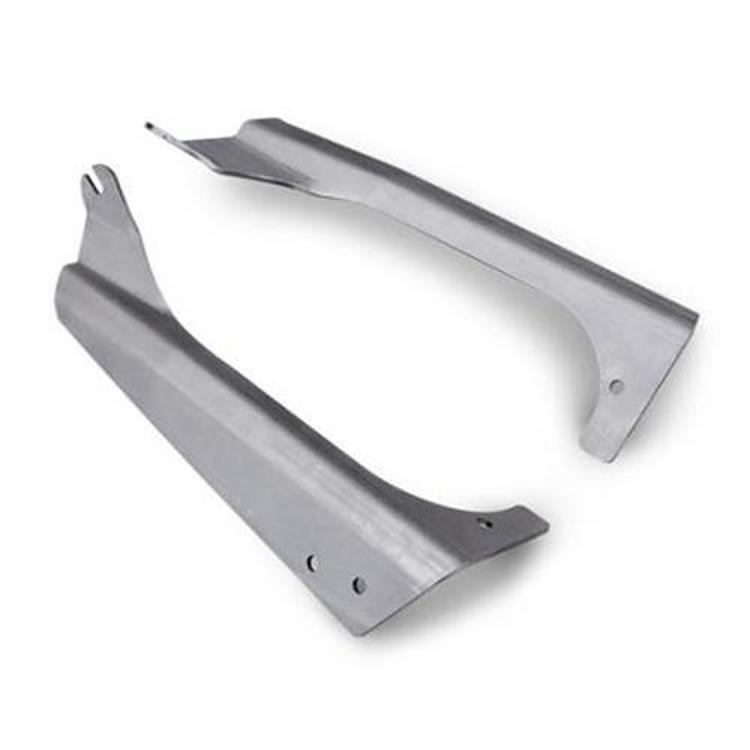

This 50 inch LED light bar mount (black, LIGTJ9706) is a bare steel bracket set for a light bar mounted above the windshield of a Jeep Wrangler. The mount is CNC laser cut from 3/16 inch thick plate, then brake-formed and finish welded for strength, and it is designed for a 50 inch Rigid Industries light bar.

The contoured, gusseted design holds the bar securely on the highway or in rough terrain. Installation uses the existing lower windshield bracket bolts. The mount is shipped bare steel so the owner can paint or powder coat it, and longer hardware may be needed from a local hardware store.

Key features

  • CNC laser cut bare steel from 3/16 inch plate
  • Brake-formed and finish welded construction
  • Contoured, gusseted design for a heavy light bar
  • Rubber liners protect the paint under the mounts
  • Shipped bare for paint or powder coat

Before you mount the bar

A windshield-mounted light bar sits in the airflow and moves with the vehicle, so the mount has to hold the weight steady on rough trails and at highway speed. Before drilling or fastening anything, check that the bar clears the top of the windshield, the wiper arms and any roof-mounted gear. Sit in the driver’s seat and confirm the beam will not blind oncoming traffic when the bar is switched on.

Vibration is the main long-term threat. Re-check the bolts after the first few trail runs, since they can back off as the bar settles. Keep the wiring loose at the mount so it is not pulled tight, and use a fused feed to protect the vehicle wiring. Inspect the rubber liners for wear each time you clean the bar, and replace them if they flatten or crack.

  • Re-tighten bolts after early trail runs
  • Keep wiring slack at the mount
  • Check rubber liners for flattening or cracks
  • Clear the wiper arms before final placement

Specifications

Brand Genuine Packages
Part number LIGTJ9706
UPC 700007631351
Mount type Windshield light bar bracket, direct fit
Material Steel, 3/16 inch thick plate
Finish Bare steel

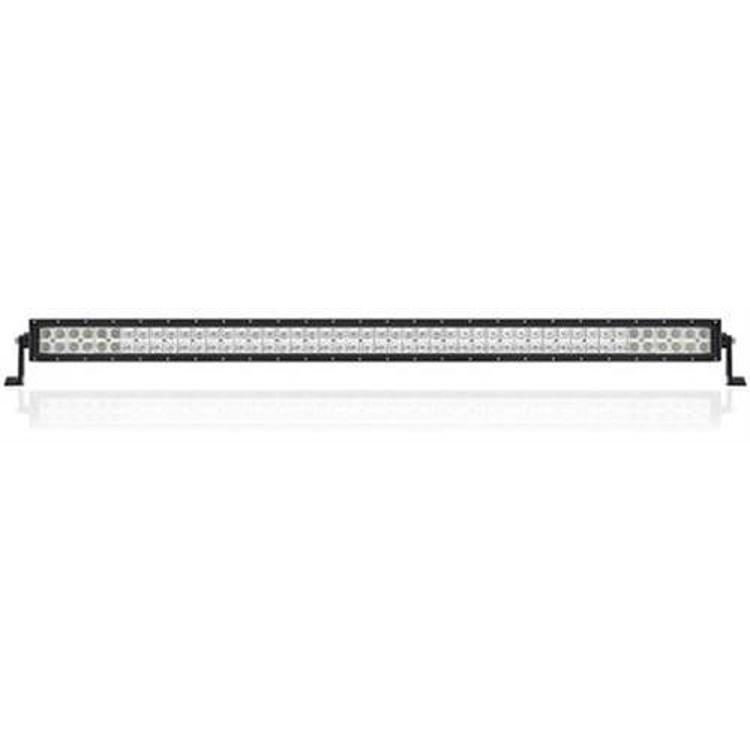

Light bar 50 inch, Driving/Fog/Flood combination beam
Listed light bar rating 288W LED power, 25920 raw lumens
Hardware Existing lower windshield bracket bolts; longer hardware may be needed
Sold as Bracket kit

Vehicle fitment

This mount is made for a Jeep Wrangler. Confirm fit for your vehicle’s year, model and trim before ordering. Because the bracket attaches at the lower windshield bolts, compare that bolt pattern with the mount before you buy. The 50 inch bar is a large unit, so measure the space above your windshield first.

Installation notes

Installation uses the existing lower windshield bracket bolts. Longer hardware may be needed from a local hardware store, so have the correct bolts on hand before installing. The rubber liners go between the mount and the paint, so fit them before tightening the bar.

What’s included

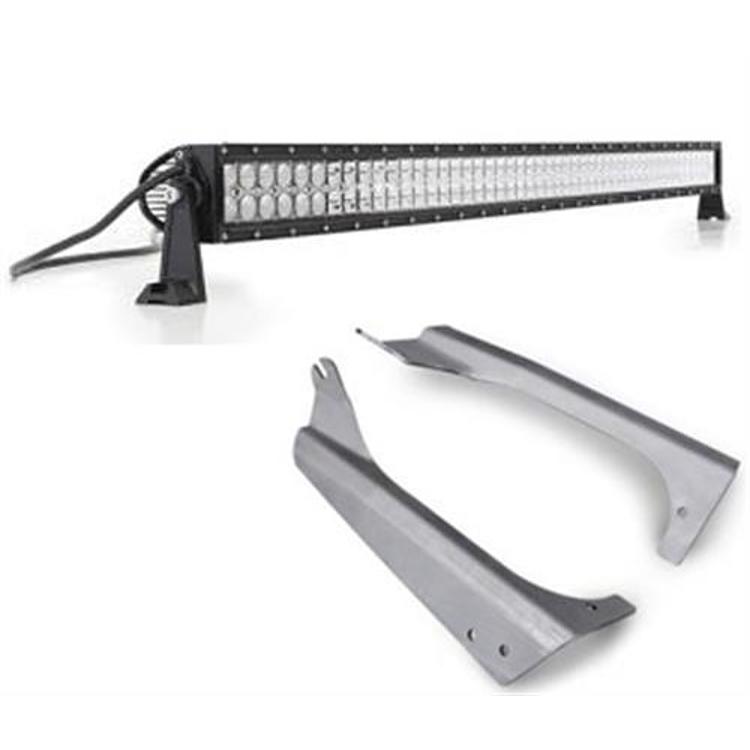

The bare steel bracket set for a 50 inch light bar. The light bar itself is not included, so this is a light bar mount only.

SKU: ADDLIGTJ9706 Category:

Specification

Shipping weight 27.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Which Jeep does this light bar mount fit?

This mount is made for a Jeep Wrangler. Confirm fit for your vehicle's year, model and trim before ordering, and check the mount against your windshield bracket bolt locations.

Do I need longer bolts to install it?

Longer hardware may be needed from a local hardware store. Confirm the bolt length for your windshield bracket before installing.

Is the mount finished?

No. It ships as bare steel, ready for the owner to paint or powder coat in the color of choice.

Does a light bar mount need a separate wiring harness?

The bracket set does not include the light bar, so plan its wiring separately. Route the harness from the windshield to the power source and a switch before drilling anything, and keep it clear of the wipers and hood hinge.
